• Model NO.：UL5256
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement
• Brand：Fongming
• Name：UL5256 Cable
• Conductor：Nickel,Nickel Copper
• Insulation：PTFE Tape Insulated
• Jacket：Fiberglass with High Temp Finish
• Size：24AWG~8AWG
• Rated Temperature：250 Degree
• Rated Voltage：600V
• Certified：UL
• Transport Package：305m Per Roll or According to Clients′ Requirement
• Specification：24awg-8awg
• Trademark：FongMing
• Origin：China, Yangzhou
• HS Code：8544492100
• Production Capacity：3000km,Month

Basic Info.

Model NO. UL5256 Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement Brand Fongming Name UL5256 Cable Conductor Nickel,Nickel Copper Insulation PTFE Tape Insulated Jacket Fiberglass with High Temp Finish Size 24AWG~8AWG Rated Temperature 250 Degree Rated Voltage 600V Certified UL Transport Package 305m Per Roll or According to Clients′ Requirement Specification 24awg-8awg Trademark FongMing Origin China, Yangzhou HS Code 8544492100 Production Capacity 3000km/Month

Product Description

Name
UL5256 1.0mm2 1.5mm2 2.0mm2 2.5mm2 3.0mm2 PTFE tape insulated wire

Description
Name: UL5256 1.0mm2 1.5mm2 2.0mm2 2.5mm2 3.0mm2 PTFE tape insulated wire
Model No.: AWM5256
Size: 24AWG~8AWG

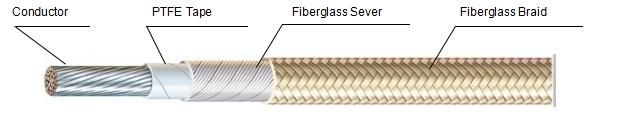

Feature UL5256 1.0mm2 1.5mm2 2.0mm2 2.5mm2 3.0mm2 PTFE tape insulated wire
Ratings: -60ºC~+250ºC, 600V
Conductor: Nickel Copper, Nickel
Insulation: Teflon tape
Jacket: Fiberglass braid with high temperature finish

Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.

Specification

Size AWG	Conductor Structure	Insulation Thickness (mm)	Fiberglass Serve Thickness (mm)	Fiberglass Braid Thickness (mm)	Diameter (mm)
24	7/0.2	>=0.18	>=0.10	>=0.28	1.8±0.2
22	7/0.254				1.9±0.2
20	10/0.254				2.1±0.2
18	16/0.254				2.3±0.2
16	26/0.254	>=0.28			2.7±0.2
14	41/0.254				3.0±0.2
12	65/0.254				3.5±0.2
10	103/0.254				4.4±0.2
8	163/0.254				5.4±0.2
