• Model NO.：4 pair ftp cat6 cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：Utpcat6
• Brand：Hanli
• Transport Package：305m,Box
• Specification：4x2x0.57cu
• Trademark：hanli
• Origin：Zhejiang
• HS Code：8544491100
• Production Capacity：30000,Year

Basic Info.

Model NO. 4 pair ftp cat6 cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Model Utpcat6 Brand Hanli Transport Package 305m/Box Specification 4x2x0.57cu Trademark hanli Origin Zhejiang HS Code 8544491100 Production Capacity 30000/Year

Product Description

1.Conductor :0.56BC,0.57BC or CCA

2,insulation:HDPE ID:0.1.15mm
3,Twisted pairs.
4,Shield: PET film and aluminum foil shield.
5,Deain wire: Tinned copper ,CU, CCS or CCA drain wire
6,jacket :PVC,LZSH or PE
7,Nominal diameter: 7.8±0.2mm
8,Average thickness: 0.6mm
9,Frequency: 250MHz
10,Resistance Unbalance,maximum : 4.5%
11,Mutual Capacitance :5.6 nF/100 m @ 1 kHz
12,Dielectric Test: DC 2500V/2min at 20ºC
13. Standard: international ISO/IEC 11801; USA ANSI/TIA/EIA-568B.
14,Operating temperature range: -20 to 75°C
15,305meters pull box or 500meters wooden drum
16,OEM order is welcome

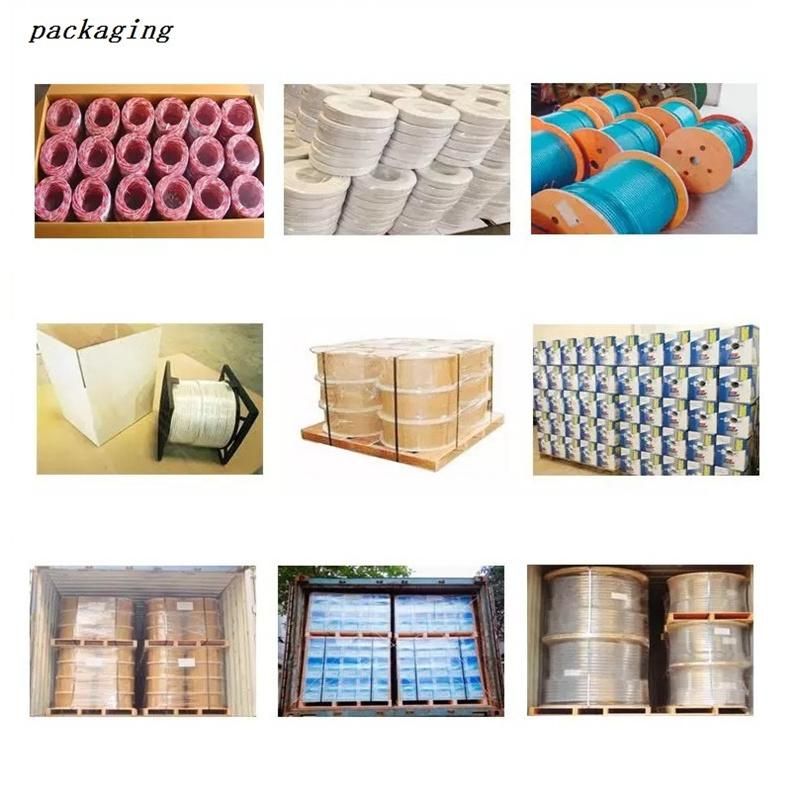

Packing ways:
100m: PE protective layer, 5 roll per carton box
305m: one roll in one carton box, two carton boxes in one master carton
500m: wooden roll package, carton box as outer package



Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
