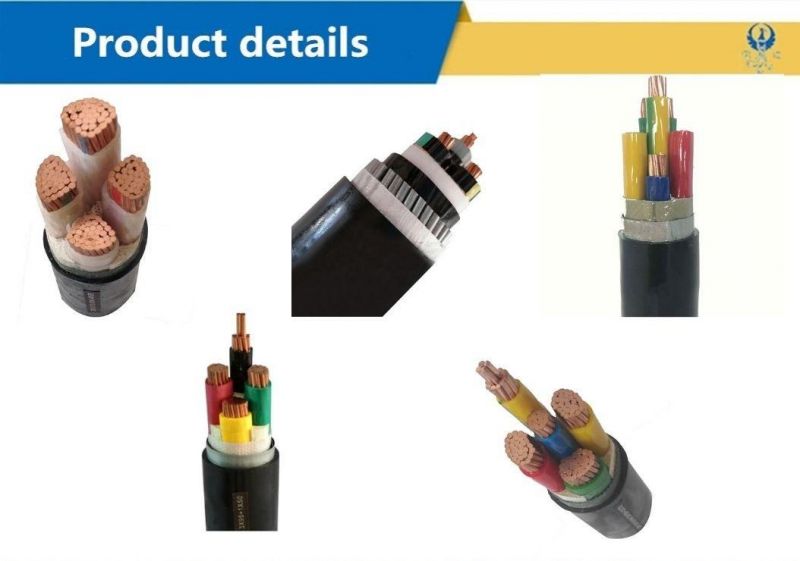

Nyy Three Core 185sqmm Aluminum Conductor High Medium Voltage Steel Wire Armoured XLPE Insulated PVC Sheathed Power Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Home Wire
  • Voltage：Low and Medium Voltage Cable
  • Insulation Material：Epr,XLPE,PVC,Nr+SBR
  • Sheath Material：Epr,XLPE,PVC
  • Material Shape：Flat , Round
  • Wire Core Material：Class 5 Flexible Copper Conductor

Base Info

  • Model NO.：Medium voltage cable
  • Certification：ISO, CCC, CE
  • Model：H05gg-F
  • Brand：Feng Da
  • Colour：Red,Green,Blue,Black,White,as Request
  • OEM/ODM：Yes
  • Flame Test：Yes
  • Transport Package：Rolls or According to Customer′s Request
  • Trademark：feiya
  • Origin：Tianjin, China
  • HS Code：8544492100

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.Nyy Three Core 185sqmm Aluminum Conductor High Medium Voltage Steel Wire Armoured XLPE Insulated PVC Sheathed Power CableNyy Three Core 185sqmm Aluminum Conductor High Medium Voltage Steel Wire Armoured XLPE Insulated PVC Sheathed Power Cable

ELECTRICAL CHARACTERISTICS

  • Operating Voltage, Uo/U :   0.6/1KV
  • Operating Temperature : -15'C to 90'C
  • Final Short Circuit Temperature : 250′ C
  • Test Voltage : 3.5kV for 5 minutes
  • Current Carrying Capacity
    1.  Clipped Direct (Ref Method C)
      • One 3 or 4-Core Cable, 3-Phase A.C : 73A
    2. In free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E)
      • One 3 or 4-Core Cable, 3-Phase A.C : 78A
    3. Direct in Ground or in ducting in ground, in or around building (Ref method D)
      • One 3 or 4-Core Cable, 3-Phase A.C : 58A

REFERENCE STANDARD

  • Design Specification: IEC60502-1
  • Conductor: IEC60228, BS EN60228
  • Flame Retardancy: IEC60332-1, BS EN60332-1

INSTALLATION REFERENCE

  • Minimum Bending Radius(mm): 8 x cable overall diameter
  • Max. Pulling Tension (N/mm2) : 70
