• Wire Core Material：Bare Copper Wire
• Certification：CE, UL, CCC
• Transport Package：Box,OPP Bag
• Specification：15X5X2 cm
• Origin：Zhejiang
• Production Capacity：100000

Product Descriptions

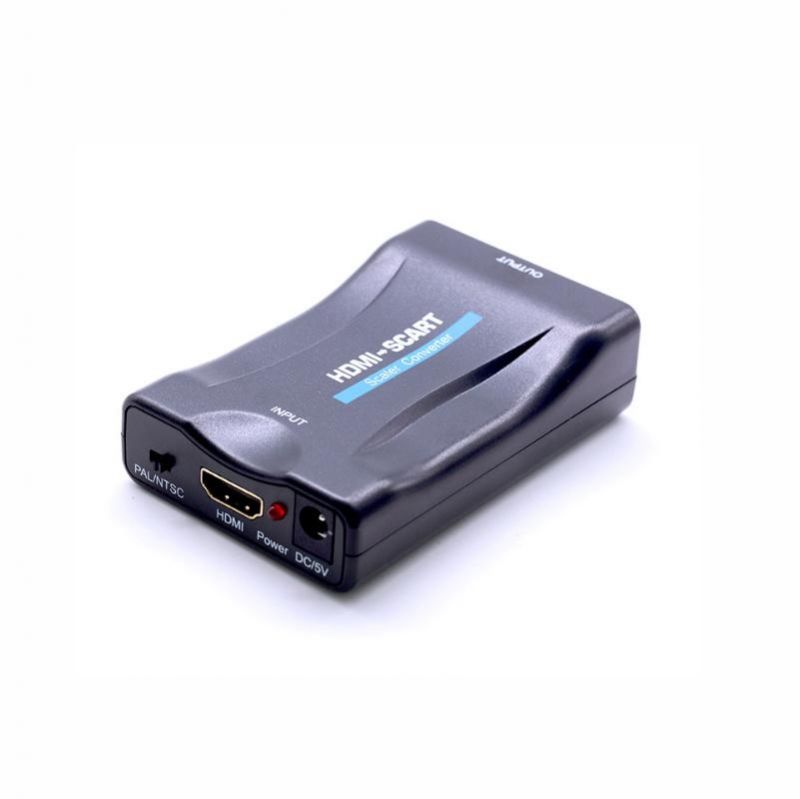

HDMI to SCART Composite Video Converter Audio Adapter with USB Cable for SKY TV:

The HDMI to SCART Converter can convert digital HDMI  video audio signal to composite analog video signal and the FL/FR stereo audio signal, it supports DVI system sideline signals. It can convert the high quality of the HDMI signal and smart Phone signal to normal CVBS signal (standard- definition 480i, 576i,). So that can play on CRT TV, old TV, VHS VCR, DVD recorders, etc. The HDMI to SCART converter support NTS.

Features:

Can convert HDMI digital signal to SCART composite analog signal.

Support NTSC and PAL two standard TV formats output

Share your smart phone photos, music and movies on the TV

Mini size and lightweight, convenient to carry and use

Supplied with a USB cable, it can be powered by PC USB port or power adapter (No power adapter is included.)

Plug and play, no driver needed.

Compatible with HDMI 1.4

Specification:

Input Port: Standard HDMI Male

Output Port: SCART

Color: Black

Material: ABS

Wight: Approx. 58g

Power Consumption (Max): 3W

HDMI Input Resolutions Supported:

640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p23.97/24/25/50/59.94/60Hz.

Note:

Because of the different connector, for Samsung Galaxy S3,S4 series (I9300/I9308/I939/Note2 N7100/I9500) need add a micro USB 5pin to 11pin connector.

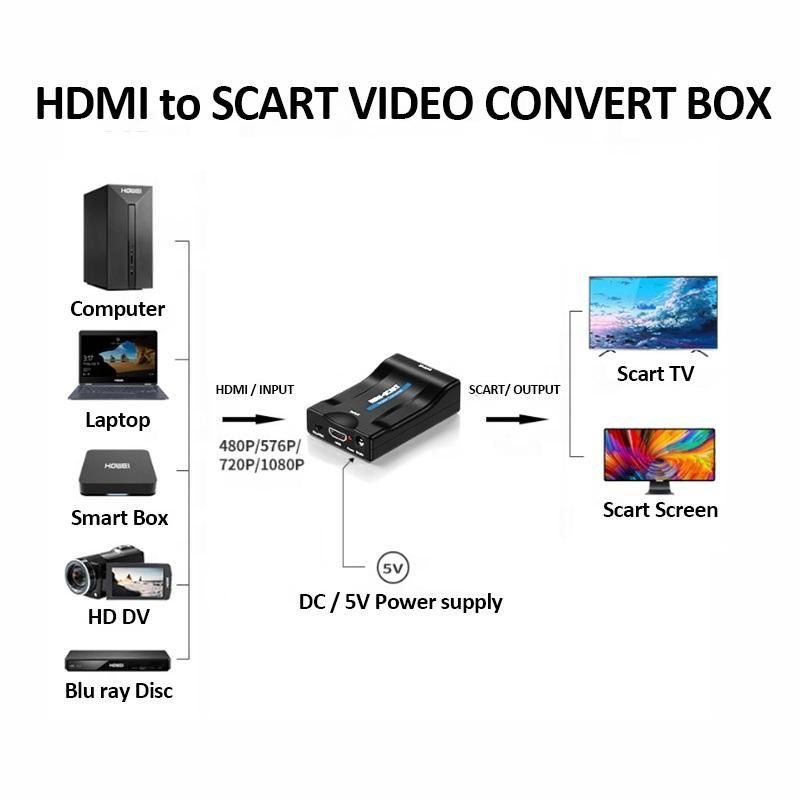

How to Use:

1. Please connect the converter to the TV via a good Scart cable, change the TV to SCART CVBS channel.

2. Connect the converter to 5V DC power supply or your phone 5V USB charger via the USB DC cable, you will see the power led light up, and the SCART TV screen shows "No signal".

3. Connect the converter to the HDMI source device via a good HDMI cable, for example, DVD player.

4. After you connect them, please restart the HDMI source device, usually you will get signal on your SCART TV.

5. If there is no signal, please set the device output via HDMI if it has the option, you need to change the NTSC or PAl according to your TV format.

Compatible Model:

for Samsung I9100/I9108/I9188/I997/Galaxy Note I900

for HTC G14/G18/G19/Flyer/EVO 3D/Z710/Z710e/Z710T

for LG LU6200/P940

for SONY LT26i / NOKIA N10

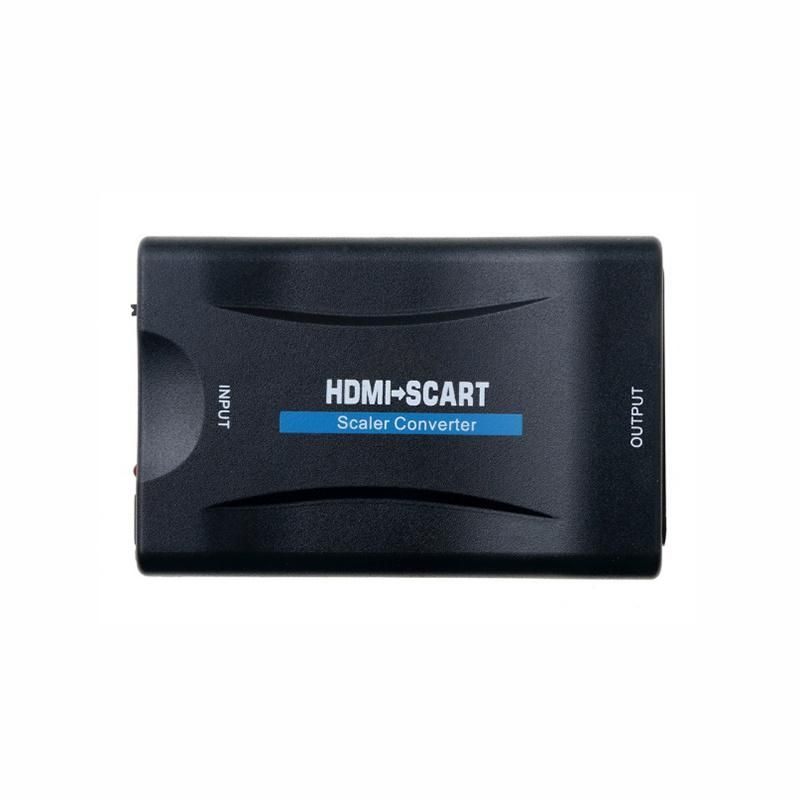

Product pictures

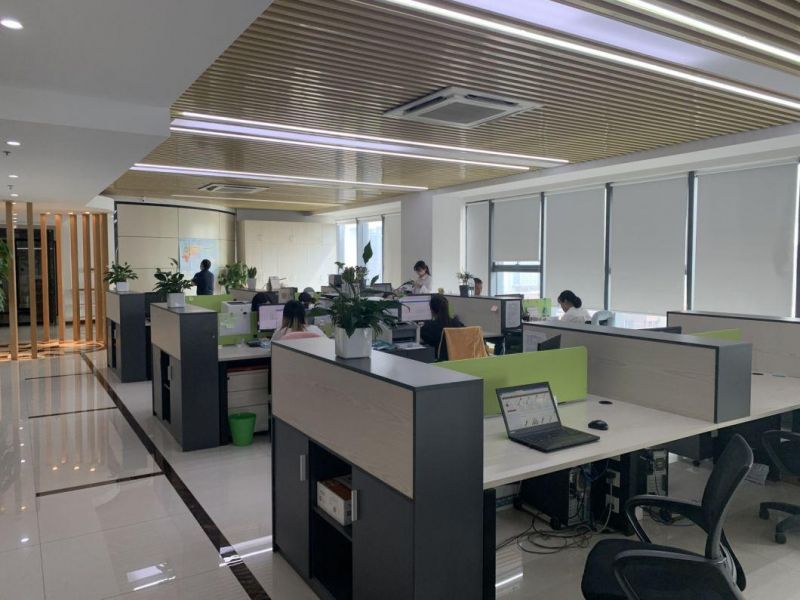

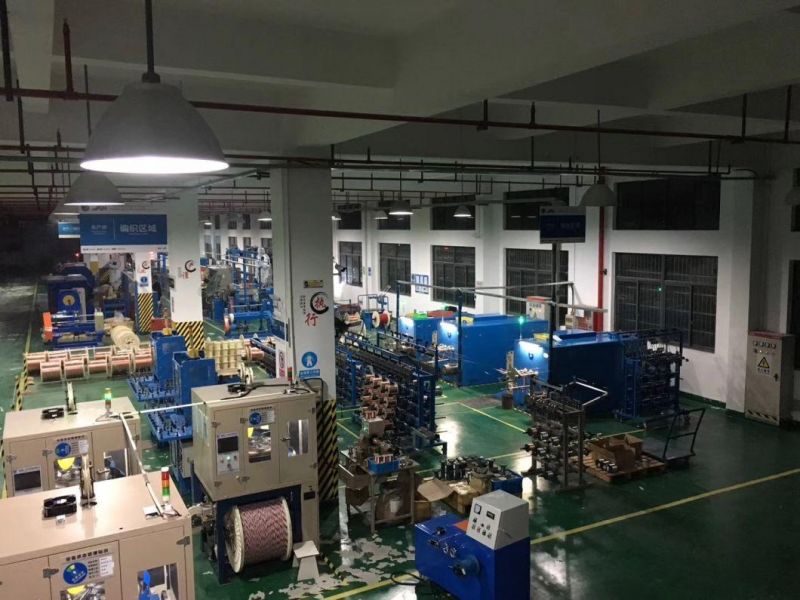

WORKSHOP & OFFICE:
