• Certification：ISO, CCC, CE
• Model：Djypv
• Brand：Fengda
• Shielded：Al-Foil, Al-Plastic Tape
• Armoured Cable：Swa Armoured Cable
• Colors：Assorted Upon Request
• Operating Environment：Power, Construction, Metallurgy, Petrochemicals, T
• Structure：Individual and Overall Screen ,Double Screened
• Transport Package：Wooden Drum, Iron Wooden Drum, Iron Drum for Instr
• Trademark：fengda
• Origin：Tianjin, China

Basic Info.

Certification ISO, CCC, CE Model Djypv Brand Fengda Shielded Al-Foil/ Al-Plastic Tape Armoured Cable Swa Armoured Cable Colors Assorted Upon Request Operating Environment Power, Construction, Metallurgy, Petrochemicals, T Structure Individual and Overall Screen /Double Screened Transport Package Wooden Drum, Iron Wooden Drum, Iron Drum for Instr Trademark fengda Origin Tianjin, China

Product Description

Specification

16 AWG/ 22 AWG Extension Grade SWA Instrumentation Thermocouple Cable are designed to carry communication and
control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of
analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Instrumentation
cables are designed to form part of an intrinsically safe system. These cables are generally designed for indoor use and in
environments where mechanical protection is not required. Collectively and individually screened pairs are available within
the range where further signal security is required.


Characteristics

1. The permissble long-term working temperature of the cable conductor: XLPE insulated is 90°C, PVC insulated is 70 °C.
During the cable laying, the ambient temperature must be above 0 °C.

2. The permissible bending radius in cable laying and installing.

a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.

b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.

c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.

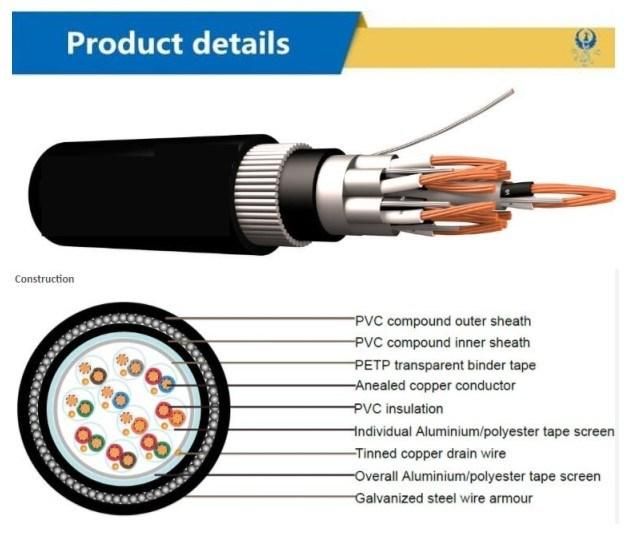

  Type and Designation

Code Designation	Constructions
DJYPV	Copper Conductor, PE Insulation, Copper Wire Braid Individual Shield, PVC Sheath
DJYPVP	Copper Conductor, PE Insulation, Copper Wire Braid Individual Shield and Overall Shield, PVC Sheath
DJYVP	Copper Conductor, PE Insulation, Copper Wire Braid Overall Shield, PVC Sheath
DJYP2V	Copper Conductor, PE Insulation, Copper Tape Individual Shield, PVC Sheath
DJYP2VP2	Copper Conductor, PE Insulation, Copper Tape Individual Shield and Overall Shield, PVC Sheath
DJYVP2	Copper Conductor, PE Insulation, Copper Tape Overall Shield, PVC Sheath
DJYP3V	Copper Conductor, PE Insulation, Al-foil Individual Shield, PVC Sheath
DJYP3VP3	Copper Conductor, PE Insulation, Al-foil  Individual Shield and Overall Shield, PVC Sheath
DJYVP3	Copper Conductor, PE Insulation, Al-foil Overall Shield, PVC Sheath



FAQ

Q1:Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?

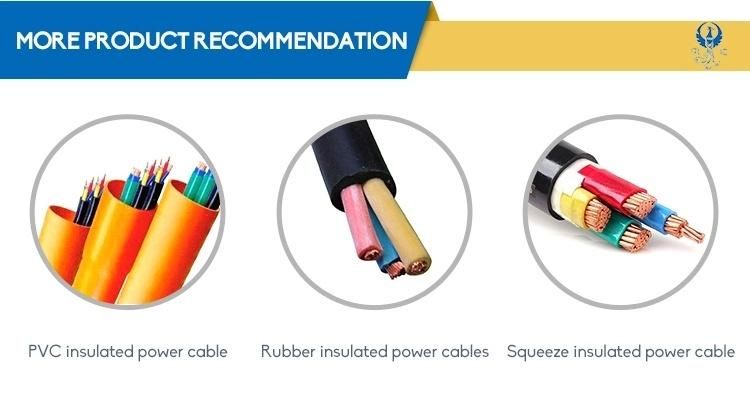

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC
insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable,
welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical
Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3:Which standards do you comply with when you produce the electrical wires and cables ?

A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL
standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you
according to the special requirements of customers (providing OEM services).

4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5:How much the Courier freight will be for the samples?

A5:Courier freight depends on the quantity,weight and carton size and your area.
