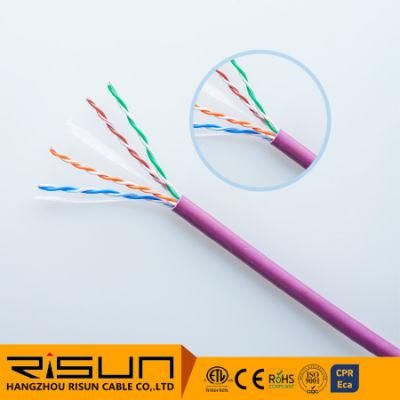

• Model NO.：FTP CAT6 Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, UL, ETL SGS CPR
• Model：FTP CAT6
• Brand：Risun or OEM
• Transport Package：305m,Wooden Reel, 1 Reel,CTN.
• Trademark：RISUN or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000box,Month

Conductor:0.57±0.02mm(24AWG) BC/CCAInsulation:1.00±0.02mm HDPE/PVCCores/Pairs:8/4Seperator: YesDrain Wire:0.40±0.01mm (26AWG) TCShield:Polyester Tape + Aluminum FoilSheath:7.4±0.2mm PVC/ PE/ LSZHOptions: Jelly CompoundJacket: UV, FR, RoHS complied
Mechanical Properties:Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa
Electrical Properties:Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%
Technical Performance:

Frequency	Att	RL	NEXT	DELAY	PS NEXT	EL FEXT	PS EL FEXT
(MHz)	(≤dB/100M)	(≥dB)	(≥dB)	(≤ns/100M)	(≥dB)	(≤dB/100M)	(≤dB/100M)
4	3.8	23.0	66.3	552.0	63.3	56.0	53.0
8	5.3	24.5	61.8	547.0	58.8	49.9	46.9
10	6.0	25.0	60.3	545.0	57.3	48.0	45.0
16	7.6	25.0	57.2	543.0	54.2	43.9	40.9
20	8.5	25.0	55.8	542.0	52.8	42.0	39.0
25	9.5	24.3	54.3	541.0	51.3	40.0	37.0
31.25	10.7	23.6	52.9	540.0	49.9	38.1	35.1
62.5	15.4	21.5	48.4	539.0	45.4	32.1	29.1
100	19.8	20.1	45.3	538.0	42.3	28.0	25.0
200	29.0	18.0	40.8	537.0	37.8	22.0	19.0
250	32.8	17.3	39.3	536.0	36.3	20.0	17.0

The Cat6 & Cat6a Cable:


Item	Conductor	Insulation (UV,FR,RoHS)	Cores / Pairs	Shield	Drain Wire	Sheath (UV,FR,RoHS, Reach)	Seperator
U/UTP Cat6 solid	0.57±0.02mm (23AWG)BC/CCA	1.00±0.02mm HDPE/PVC	8/4	Non	Non	6.2±0.2mm PVC(PE,LSZH)	Yes
U/UTP Cat6 strand	7/0.20±0.01mm (23AWG)BC/CCA	1.02±0.02mm HDPE/PVC	8/4	Non	Non	6.2±0.2mm PVC(PE,LSZH)	Yes
F/UTP Cat6 solid	0.57±0.02mm (23AWG)BC/CCA	1.10±0.02mm HDPE/PVC	8/4	Polyester Tape +Al Foil	0.40±0.01mm (26AWG)TC	7.4±0.2mm PVC(PE,LSZH)	Yes
U/UTP Cat6a  solid	0.58±0.02mm (23AWG)BC/CCA	1.05±0.05mm HDPE/PVC	8/4	Non	Non	6.2±0.2mm PVC(PE)	Yes
S/FTP Cat6 solid	0.57±0.02mm (23AWG)BC/CCA	1.25±0.05mm HDPE/PVC	8/4	Each Pair Al Foil +  ≥40%TC	Non	7.4±0.2mm PVC(PE,LSZH)	Non

Packing:
50m/roll, 100m/roll, 200m/roll, 305m/roll, 500m/roll, 1000m/roll
Other lengths available according to customer's request.

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
