ASTM Standard AAAC Conductor
HENAN BAOFENG CABLE CO., LTD.- Type:Bare
- Conductor Type:Stranded
- Application:Overhead
- Conductor Material:Aluminum
- Sheath Material:None
- Insulation Material:None
Base Info
- Model NO.:Bare Conductor
- Material Shape:Round Wire
- Range of Application:Overhead Power Transmission Lines
- Certification:ISO9001, CE, CCC, RoHS, VDE
- Brand:Hnbf Cable
- Brand Name:Hnbf,OEM,ODM
- Trade Term:Fob, CIF, CFR
- Sample:Provided
- Warranty:12 Months
- Standard:IEC, NFC, AS,NZS...
- Transport Package:Wooden Drum, Iron-Wooden Drum
- Specification:0.75(sqmm),1.0,1.5,2.5,4,6,10,16,25,35,50,70.
- Trademark:HNBF Cable
- Origin:Henan China
- HS Code:7614900000
- Production Capacity:5000000 Meters,Per Month
Description
Basic Info.
Model NO. Bare Conductor Material Shape Round Wire Range of Application Overhead Power Transmission Lines Certification ISO9001, CE, CCC, RoHS, VDE Brand Hnbf Cable Brand Name Hnbf/OEM/ODM Trade Term Fob, CIF, CFR Sample Provided Warranty 12 Months Standard IEC, NFC, AS/NZS... Transport Package Wooden Drum, Iron-Wooden Drum Specification 0.75(sqmm),1.0,1.5,2.5,4,6,10,16,25,35,50,70. Trademark HNBF Cable Origin Henan China HS Code 7614900000 Production Capacity 5000000 Meters/Per MonthProduct Description

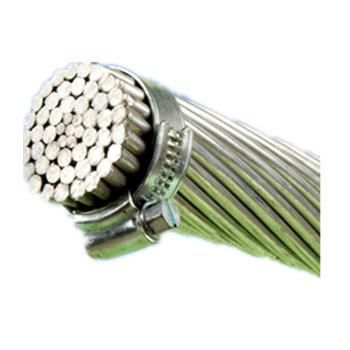

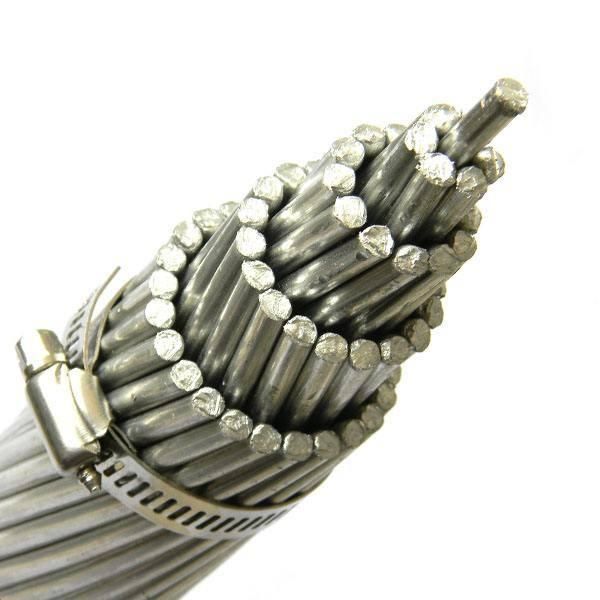

All Aluminium Alloy Conductor AAAC
Product Description
Application
Bare Conductor widely used in power transmission lines with various voltage levels.
Bare Conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation
and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Technical Parameter
AAC--ASTM Standard
Code Name | Total Aera(AWG or MCM) | Total Aera(sqmm) | Stranding and Wire diameter(mm) | Approximate Overall Diameter(mm) | Linear Mass (kg/km) | Nominial Breaking Load(daN) | mAXIMUM DC Resistance at 20ºC(Ω/km) |
Peachbell | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 249 | 2.1692 |
Pose | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 396 | 1.3624 |
Iris | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 597 | 0.8577 |
Pansy | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 732 | 0.6801 |
Poppy | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 873 | 0.5390 |
AAAC--ASTM Standard
Code Name | Conductor size(AWG or MCM) | Stranding(No./mm) | Section aera(sqmm) | Diameter of conductor(mm) | Linear Mass(kg/km) | Nominal Breaking Load (kgf) | Maximum DC Resistance at 20ºC(Ω/km) |
Alton | 4 | 7/1.96 | 21.14 | 5.89 | 57.89 | 685 | 1.5860 |
48.69(4) | 7/2.12 | 24.67 | 6.35 | 67.56 | 799 | 1.3557 | |
Amas | 2 | 7/2.47 | 33.65 | 7.42 | 92.14 | 1091 | 0.9987 |
77.47(2) | 7/2.67 | 39.26 | 8.02 | 107.50 | 1275 | 0.8547 | |
Azusa | 1/0 | 7/3.12 | 53.49 | 9.35 | 146.50 | 1733 | 0.6259 |
123.3(1/0) | 7/3.37 | 62.46 | 10.11 | 171.00 | 2019 | 0.5365 |

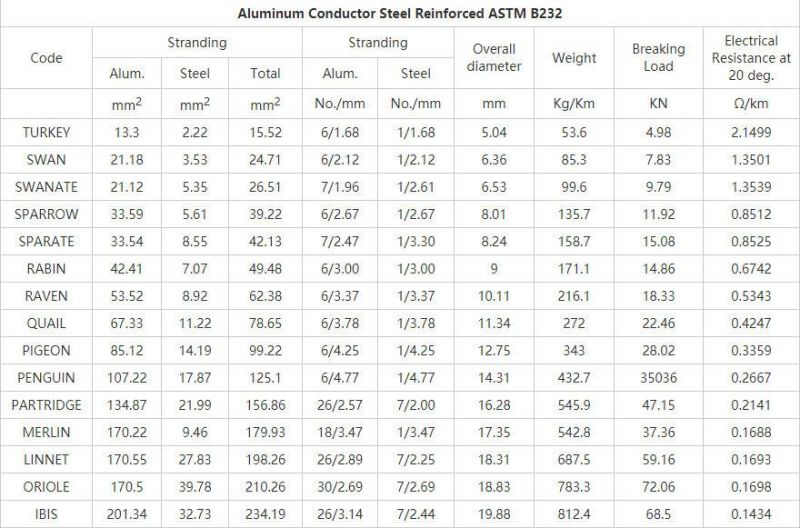

ACSR--ASTM Standard

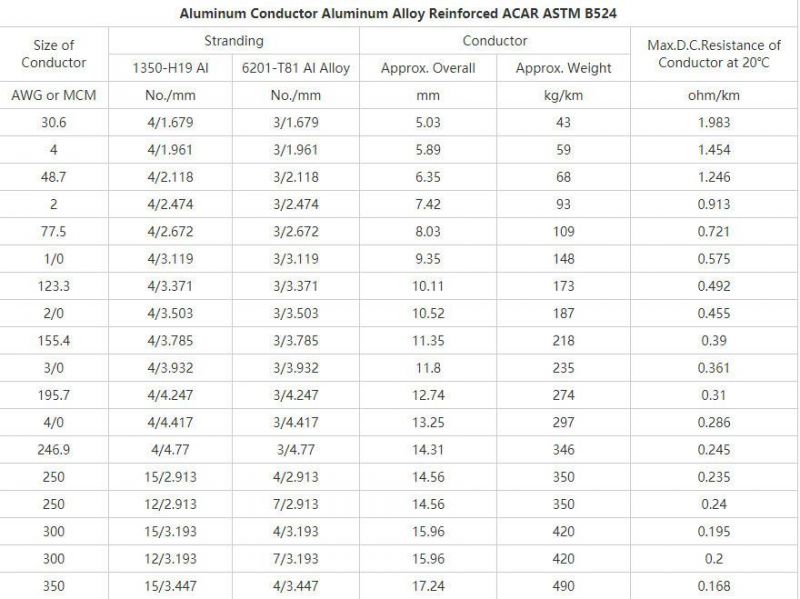

ACAR--ASTM Standard

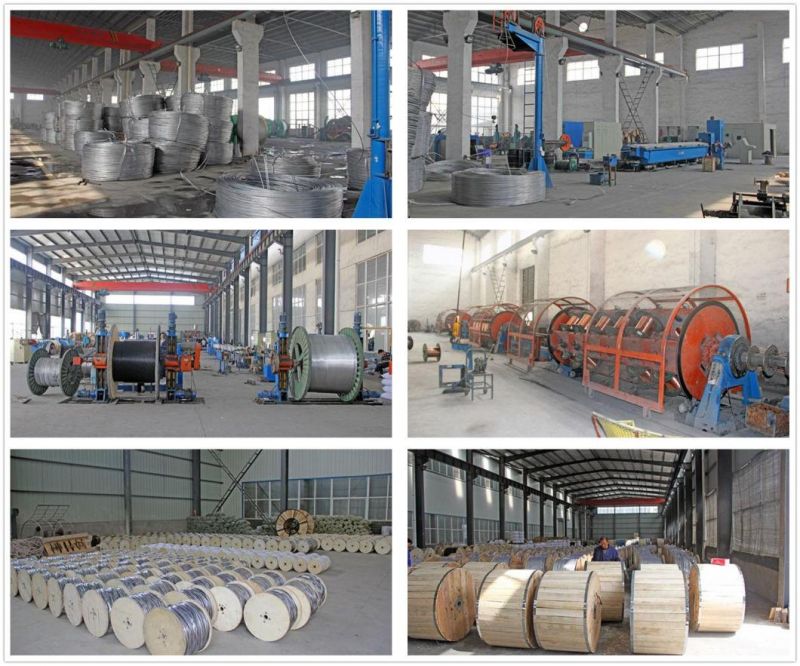

PRODUCTION LINE

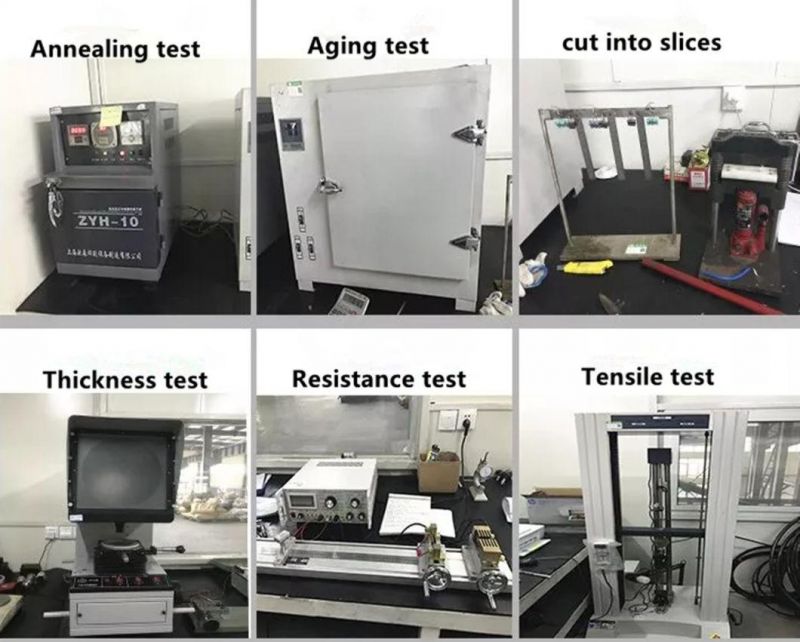

TEST

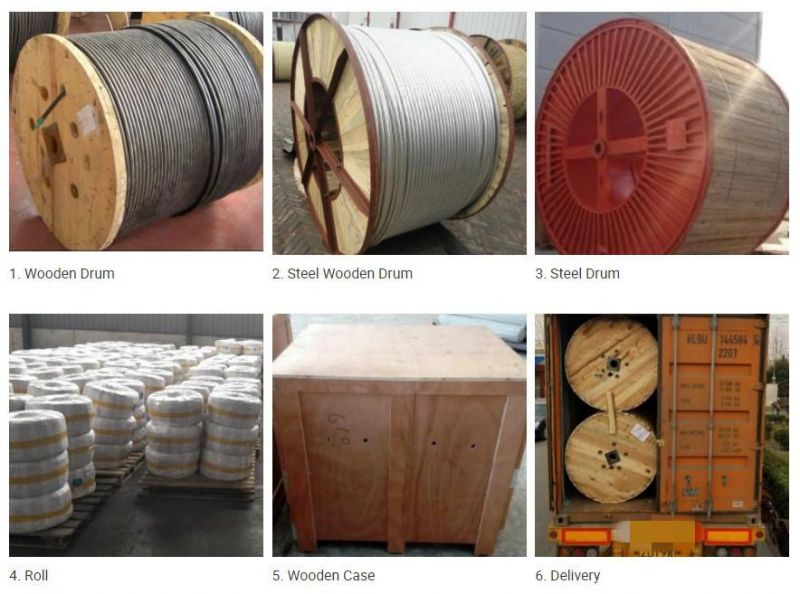

packaging & delivery
Our company will design very reasonable packaging and very strong.
Our company will provide excellent service and guarantee the timeliness of supply.
Certificate

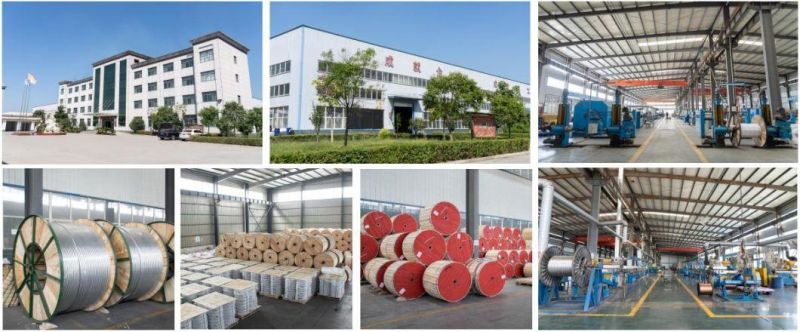

Our Company
Henan Baofeng Cable Co., Ltd. is a professional cable manufacturer which integrates R&D, production and sales together. The factory Zhengzhou Lemei Wire & Cable
Co., Ltd was established in 1994, and is located in the Science & Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. The traffic & transportation are
extremely convenient with beautiful environment there.
Our corporation has passed the ISO9001 quality management system certification, ISO14001 environmental management system certification and GB / T28001-2001
occupational health and safety management system certification, CE European Union Product Certification, CCC China Compulsory Certification, PCCC Power Product
Certification, and Flame and Fire Retardant Cable Certification, Coal Safety Certification, High-tech New Enterprise in Henan Province and China Famous Brand.
