Fiber Optical Waterproof IP67 Outdoor Pdlc Armoured Cable Assembly Ftta Patch Cord Pdlc

FIBERLINK COMMUNICATION LIMITED
  • Application：Communication
  • Type：Pdlc Fiber Optic Waterproof Outdoor Armoured Cable
  • Connection Structure：Pdlc,Dlc or DSC, Dst, Dfc
  • Material Shape：Round Wire
  • Core：Double Core
  • Certification：RoHS, CE, ISO9001

Base Info

  • Model NO.：FLK-PDLC-DLC
  • Brand：Fiberlink or OEM
  • Sheath Material：LSZH
  • Cable Dimension：7.0mm
  • Tensile (Long Term)：200n
  • Tensile (Short Term)：400n
  • Crush (Long Term)：1100 N,100mm
  • Crush (Short Term)：2200 N,100mm
  • Transport Package：Single Pack
  • Specification：Customized length
  • Trademark：Fiberlink or customized
  • Origin：China
  • HS Code：8544700000
  • Production Capacity：10000pieces,Month

Description

Overview

Product Description

PDLC Optical Cable Assembly Waterproof Outdoor Armoured Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dust-proof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.Fiber CountCable Dimension
mmCable Weight
kg/kmTensile
NCrush
N/100mmMin. Bend Radius
mmTemperatureLong TermShort TermLong TermShort TermDynamicStatic27.042.32004001100220020D10D-30-+70Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;Fiber Count                                                 2 FibersFiber TypeSM G657A, or MM 50/125 or MM 62.5/125BufferDiameter900um±10umMaterialLSZHSimplex cableDiameter2.0mm±0.1mmMaterialLSZHColorSM: Blue and Yellow
MM: Orange and GreyFillerDiameter2.0mm±0.1mmMaterialLSZHColorBlackStrength MemberKevlarJacketDiameter7.0±0.1mmMaterialLSZHColorBlack


PARAMETERConnector typeLC/UPC, SC/UPC, FC/UPC, ST/UPCLC/APC, SC/APC, FC/APC, ST/APCInsertion Loss<=0.2db<=0.3dbReturn Loss>=50db>=60dbFiber modeSingle-modeOperating wavelength1310, 1550nmTest wavelength1310, 1550nmRepeatability<=0.1Interchangeability<=0.2dBDurability<=0.2dBFiber Length1m, 2m….. other length optionalLength and tolerance10cmOperating Temperature-40C ~ +85CStorage Temperature-40C ~ +85C
Company Profile



Fiber Optical Waterproof IP67 Outdoor Pdlc Armoured Cable Assembly Ftta Patch Cord Pdlc

Product Display



Fiber Optical Waterproof IP67 Outdoor Pdlc Armoured Cable Assembly Ftta Patch Cord Pdlc

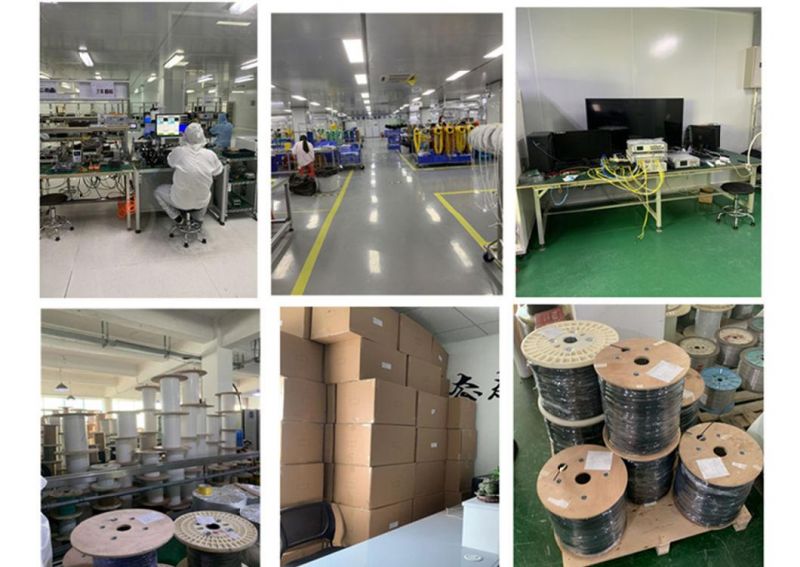

Our Factory



Fiber Optical Waterproof IP67 Outdoor Pdlc Armoured Cable Assembly Ftta Patch Cord Pdlc

Certifications



Fiber Optical Waterproof IP67 Outdoor Pdlc Armoured Cable Assembly Ftta Patch Cord Pdlc

Packaging & Shipping

Fiber Optical Waterproof IP67 Outdoor Pdlc Armoured Cable Assembly Ftta Patch Cord Pdlc

FAQ

Question:Can I have a sample before place an order?
Yes,of course we will provide free samples if value is cheap.but without shipping charges.

Question:What about the leadtime?
Around 7-14 days normally

Question:How about the MOQ?
500pcs normally per color for Fiber cable.consult sales if needed.

Question:Which mode of transportstion?
UPS/DHL/TNT/Fedex/Aramex/Sea/Air and so on.

Question:Can I put logo on the products?
Yes,of course,we do OEM and ODM aslo.

Question:what is the delivery terms?
EXW or FOB is our main delivery term.
