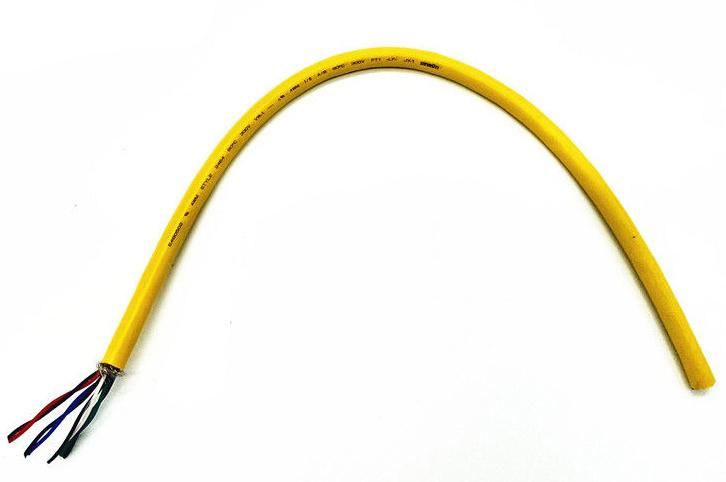

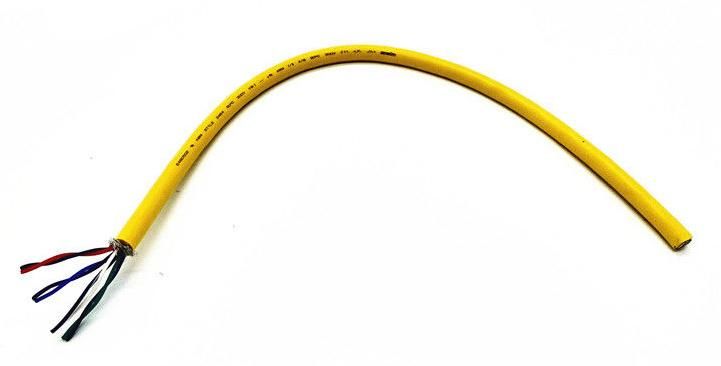

PVC, XLPE Insulated Braid Shielded Bare Copper Electrical Industrial Electric Power Wire and Cable Wire

Nantong Hwatek Wires and Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PU
  • Insulation Material：PP
  • Material Shape：Round Wire

Base Info

  • Model NO.：UL
  • Range of Application：Electronic Equipment
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Hwatek
  • Color：Optional
  • Qty/Roll：305m,610m or as Request
  • Lead Time：2-8W
  • Shipping Mode：Sea, Air, Rail, Truck
  • Transport Package：Rolled in Reels, Packed in Pallets.
  • Specification：24-28AWG
  • Trademark：Hwatek
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：20km,Day

Description

JacketMax. Cond. Resistance (200C)
Ω/km  coreSize AWGNO./mmConductor
Dia .
mmNom. Thickness
mmNom. Dia.
mmTape thick.
mm Dia. of braid strand
mm      Nom.     Thick. mmNom. Dia.
mm HT21007**1013C287/0.1270.380.260.800.0250.100.803.80223HT21007**1023C267/0.160.480.260.90 0.0250.100.804.04140HT21007**1033C2411/0.160.600.261.120.0250.100.804.5187.6HT21007**1043C2217/0.160.760.261.30 0.0250.100.804.9055.4HT21007**1056C287/0.1270.380.260.800.0250.120.804.70223HT21007**1066C267/0.160.480.260.90 0.0250.121.005.30140HT21007**1076C2411/0.160.600.261.120.0250.121.006.0087.6Remark:Optional core wire number 2C-50C, and shielding way
PVC, XLPE Insulated Braid Shielded Bare Copper Electrical Industrial Electric Power Wire and Cable WirePVC, XLPE Insulated Braid Shielded Bare Copper Electrical Industrial Electric Power Wire and Cable WireCompany ProfilesFounded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
PVC, XLPE Insulated Braid Shielded Bare Copper Electrical Industrial Electric Power Wire and Cable WireCertificates
Multi-Pair Flexible Braiding Shield PU Jacket Cable

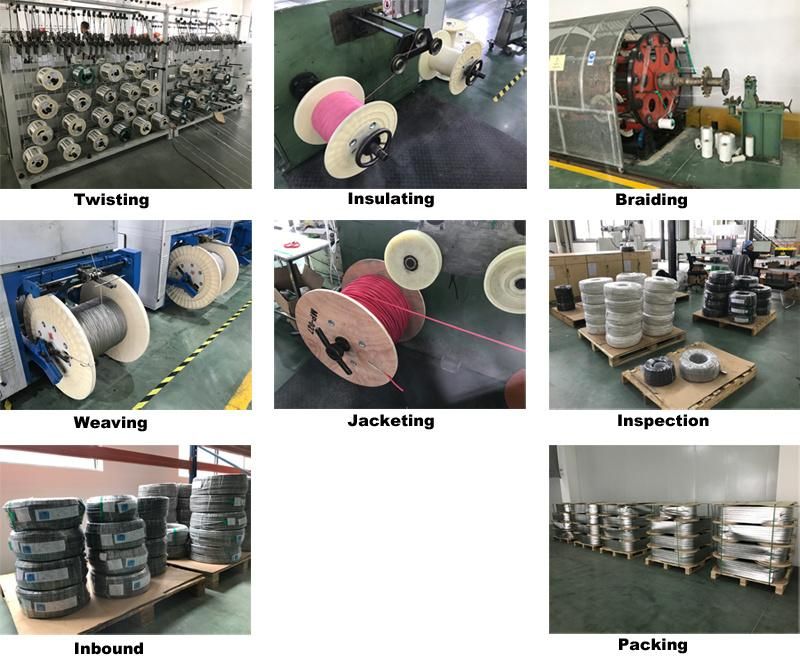

Production Progress
Multi-Pair Flexible Braiding Shield PU Jacket CableShipping
Multi-Pair Flexible Braiding Shield PU Jacket CableFAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
Multi-Pair Flexible Braiding Shield PU Jacket Cable
