• Model NO.：ADSS
• Certification：RoHS, ISO9001
• Brand：OEM
• Sheath Material：PE
• Place of Origin：Guangdong, China (Mainland)
• Number of Conductors：48
• Installation：Aerial Self-Supporting
• Application Style：Telecommunications
• Conductors：2~288
• Jacket Material：PE or Anti-Track PE
• Model Number：ADSS
• Some Certification：ISO9001
• Color：Customized
• Transport Package：Wooden Drum
• Specification：ROHS, CE
• Trademark：TW-SCIE or OEM
• Origin：Guangdong Dongguan
• HS Code：854470000
• Production Capacity：200km Per Day

Basic Info.

Model NO. ADSS Certification RoHS, ISO9001 Brand OEM Sheath Material PE Place of Origin Guangdong, China (Mainland) Number of Conductors 48 Installation Aerial Self-Supporting Application Style Telecommunications Conductors 2~288 Jacket Material PE or Anti-Track PE Model Number ADSS Some Certification ISO9001 Color Customized Transport Package Wooden Drum Specification ROHS, CE Trademark TW-SCIE or OEM Origin Guangdong Dongguan HS Code 854470000 Production Capacity 200km Per Day

Product Description

All Dieletric Self-Supporting Fiber Optical Outdoor Cable/ All Dielectric Cable ADSS
 Application Scope:
Environment with high electric field strength in the Power communication system and the area where frequent thunder happens

Features:
(1) Lightweight and small diameter reduces the impact of ice and wind, and their impact on tower and supporter.
(2) Large span length: Max span>1000 meters, and the optical cable can be installed without electrical outage.
(3) Project design added (sag-tension, field intensity calculation, hanging point selection, hardware fittings configuration).

Designation	Diameter (mm)	RTS(N)	MAT(N)	EDS(N)	Kg/km
2~24 core
ADSS-AT(PE)xx -4KN	12.2	9698	3879	2425	121
ADSS-AT(PE)xx -6KN	12.5	14108	5643	3527	126
ADSS-AT(PE)xx -9KN	12.9	22928	9171	5732	135
ADSS-AT(PE)xx -12KN	13.3	30645	12258	7661	143
ADSS-AT(PE)xx -15KN	13.6	37260	14904	9315	149
ADSS-AT(PE)xx -18KN	13.9	44978	17996	11245	157
ADSS-AT(PE)xx -21KN	14.3	52695	21078	13174	164
ADSS-AT(PE)xx -24KN	14.6	60413	24165	15103	172
ADSS-AT(PE)xx -26KN	14.8	65925	26370	16481	177
26~36 core
ADSS-AT(PE)xx -4KN	12.8	9698	3879	2425	133
ADSS-AT(PE)xx -6KN	13.0	14108	5643	3527	138
ADSS-AT(PE)xx -9KN	13.4	22928	9171	5732	146
ADSS-AT(PE)xx -12KN	13.8	30645	12258	7661	154
ADSS-AT(PE)xx -15KN	14.1	37260	14904	9315	161
ADSS-AT(PE)xx -18KN	14.4	44978	17996	11245	168
ADSS-AT(PE)xx -21KN	14.7	52695	21078	13174	175
ADSS-AT(PE)xx -24KN	15.1	60413	24165	15103	183
ADSS-AT(PE)xx -26KN	15.3	65925	26370	16481	188

Can be installed without shutting off the power
Excellent AT performance ,The Maximum inductive at the operating point of AT sheath can reach 25 KV
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Large Span lengths and the largest span is over 1000m
Accurate control on Aramid application greatly improving the strength of cables
Accurate fiber excess length and stranding pitch to ensure the good performance of tensile strength and the temperature
The design life span is over 30 years

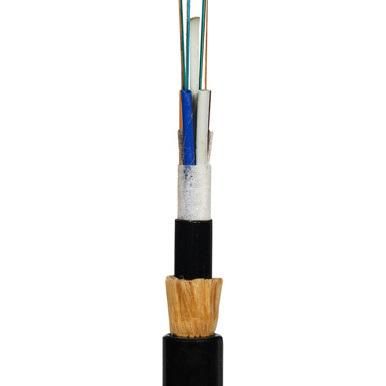

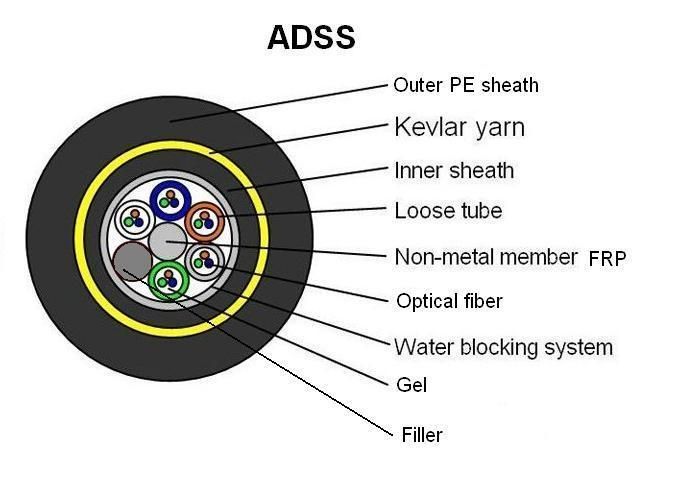

ADSS cable structure
ADSS cable is the short form for All-dielectric Self-supporting Optical Cable.
ADSS fiber optic cable is loose tube stranded; the tubes are filled with water resistant filling compound.
The tubes are stranded around fiber reinforced plastic are a non-metallic central strength member into a compact and circular cable core.
After the ADSS cable core is filled with filling compound, it is covered with a thin PE inner sheath, after two layers of Aramid yarns which are applied in two directions over the inner sheath as strength member,
ADSS optical fiber cable is completed with PE or AT outer sheath.

Optic fiber cable specifications
1. Up to 144 fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault
