- Model NO.：customization
- Brand：Yanling
- Transport Package：Roll
- Origin：Heibei
- HS Code：7614100000
- Production Capacity：100000ton
Calculation sectionouter diameter(mm) | DC resistance of no more(Ω/KM) | Breaking tensile strength(N) | Weight(kg
/km) | | | aluminum | steel | AL | steel | toatal | | | | |
| 10/2 | 6/1.5 | 1/1.5 | 10.6 | 1.77 | 12.37 | 4.50 | 2.706 | 4120 | 42.9 |
| 16/3 | 6/1.85 | 1/1.85 | 16.13 | 2.69 | 18.82 | 5.55 | 1.779 | 6130 | 65.2 |
| 25/4 | 6/2.32 | 1/2.32 | 25.36 | 4.23 | 29.59 | 6.96 | 1.131 | 9290 | 102.6 |
| 35/6 | 6/2.72 | 1/2.72 | 34.86 | 5.81 | 40.67 | 8.16 | 0.823 | 12630 | 141 |
| 50/8 | 6/3.20 | 1/3.2 | 48.25 | 8.04 | 56.29 | 9.60 | 0.5946 | 16870 | 195.1 |
| 50/30 | 12/2.32 | 7/2.32 | 50.73 | 29.59 | 80.32 | 11.60 | 0.5692 | 42620 | 372 |
| 70/10 | 6/3.80 | 1/3.8 | 68.05 | 11.34 | 79.39 | 11.40 | 0.4217 | 23390 | 275.2 |
| 70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.4141 | 58300 | 511.3 |
| 95/15 | 26/2.15 | 7/1.67 | 94.39 | 15.33 | 109.72 | 13.61 | 0.3058 | 35000 | 380.8 |
| 95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.85 | 113.96 | 13.87 | 0.3019 | 37200 | 408.9 |
| 95/55 | 12/3.2 | 7/3.2 | 96.51 | 56.30 | 152.81 | 16.00 | 0.2992 | 78110 | 707.7 |
| 120/20 | 26/2.38 | 7/1.85 | 118.89 | 18.82 | 134.49 | 15.07 | 0.2496 | 41000 | 466.8 |
| 120/25 | 7/4.72 | 7/2.1 | 122.48 | 24.25 | 146.73 | 15.74 | 0.2345 | 47880 | 526.6 |
| 120/70 | 12/3.6 | 7/3.6 | 122.15 | 71.25 | 193.40 | 18.00 | 0.2364 | 98370 | 895.6 |
| 150/8 | 18/3.2 | 1/3.2 | 144.76 | 8.04 | 152.80 | 16.00 | 0.1989 | 32860 | 461.4 |
| 150/20 | 24/2.78 | 7/1.85 | 145.68 | 18.82 | 164.50 | 16.67 | 0.198 | 46630 | 549.4 |
| 150/25 | 26/2.7 | 7/2.1 | 148.86 | 24.25 | 173.11 | 17.10 | 0.1939 | 54110 | 601 |
| 150/35 | 3/2.5 | 7/2.5 | 147.26 | 34.36 | 181.62 | 17.50 | 0.1962 | 65020 | 676.2 |
| 185/25 | 24/3.15 | 7/2.1 | 187.14 | 24.25 | 211.29 | 18.90 | 0.1542 | 59420 | 706.1 |
| 185/30 | 26/2.98 | 7/2.32 | 181.34 | 29.59 | 210.93 | 18.88 | 0.1592 | 64320 | 732.6 |
| 185/45 | 30/2.80 | 7/2.8 | 184.73 | 43.10 | 227.43 | 19.60 | 0.1564 | 80190 | 848.2 |
| 210/10 | 18/3.8 | 1/3.8 | 204.14 | 11.34 | 215.48 | 19.00 | 0.1411 | 45140 | 650.7 |
| 210/25 | 24/33 | 7/2.22 | 209.02 | 27.10 | 236.12 | 19.98 | 0.138 | 65990 | 789.9 |
| 210/35 | 26/3.22 | 7/2.5 | 211.73 | 34.36 | 240.09 | 20.38 | 0.1363 | 74250 | 853.9 |
| 210/50 | 30/2.98 | 7/2.97 | 209.24 | 48.82 | 258.06 | 20.86 | 0.1381 | 90830 | 960.8 |
| 240/30 | 24/3.6 | 7/2.4 | 244.29 | 31.67 | 275.96 | 21.60 | 0.1181 | 75620 | 922.5 |
| 240/40 | 26/3.42 | 7/2.66 | 238.85 | 38.9 | 277.75 | 21.66 | 0.1209 | 83370 | 964.3 |
| 240/55 | 30/3.20 | 7/3.2 | 241.27 | 56.30 | 297.57 | 22.40 | 0.1198 | 102100 | 1108 |
| 300/15 | 42/3.0 | 7/1.67 | 296.88 | 15.33 | 312.21 | 23.01 | 0.097 | 68060 | 939.8 |
| 300/20 | 45/2.93 | 7/1.95 | 303.42 | 20.91 | 324.33 | 23.43 | 0.0952 | 75680 | 1002 |
| 300/25 | 48/2.85 | 7/2.22 | 306.21 | 27.10 | 333.31 | 23.76 | 0.09433 | 83410 | 1058 |
| 300/40 | 24/3.99 | 7/2.66 | 300.09 | 38.90 | 338.99 | 23.94 | 0.09614 | 92220 | 1133 |
| 300/50 | 36/3.83 | 7/2.98 | 299.54 | 48.52 | 348.36 | 24.26 | 0.09636 | 103400 | 1210 |
| 300/70 | 30/3.6 | 7/3.6 | 305.36 | 71.25 | 376.61 | 25.20 | 0.09463 | 128000 | 1402 |
| 400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.31 | 26.91 | 0.07104 | 88850 | 1286 |
| 400/25 | 45/3.33 | 7/2.22 | 391.91 | 27.10 | 419.01 | 26.64 | 0.07370 | 95940 | 1295 |
| 400/35 | 48/3.22 | 7/2.5 | 390.88 | 34.36 | 425.24 | 26.82 | 0.07389 | 103900 | 1349 |
| 400/50 | 54/3.07 | 7/3.07 | 399.73 | 51.82 | 451.55 | 27.63 | 0.07232 | 123400 | 1511 |
| 400/65 | 26/4.42 | 7/3.44 | 398.94 | 65.06 | 464.00 | 28.00 | 0.07236 | 135200 | 1611 |
| 400/95 | 30/4.16 | 19/2.5 | 407.75 | 93.27 | 501.02 | 29.14 | 0.07087 | 171300 | 1860 |
| 500/35 | 54/3.75 | 7/2.5 | 497.01 | 34.36 | 531.37 | 30.00 | 0.05812 | 119500 | 1642 |
| 400/45 | 48/3.6 | 7/2.8 | 488.58 | 43.10 | 531.68 | 30.00 | 0.05912 | 128100 | 1688 |
| 500/55 | 54/3.44 | 7/3.44 | 501.88 | 65.06 | 566.94 | 30.96 | 0.0576 | 154000 | 1897 |
| 630/45 | 45/4.2 | 7/2.8 | 623.45 | 43.10 | 666.55 | 33.6 | 0.04633 | 148700 | 2060 |
| 630/55 | 48/4.12 | 7/320 | 639.92 | 56.30 | 696.22 | 34.32 | 0.04514 | 164400 | 2209 |
| 630/80 | 54/3.87 | 19/2.32 | 635.19 | 80.32 | 715.51 | 34.82 | 0.04551 | 192900 | 2388 |
| 880/55 | 45/4.8 | 7/3.2 | 814.30 | 56.30 | 870.60 | 38.40 | 0.03547 | 191500 | 2690 |
| 800/70 | 48/4.63 | 7/3.6 | 808.15 | 71.25 | 879.40 | 38.58 | 0.03574 | 20700 | 2791 |
| 800/100 | 54/4.33 | 19/2.6 | 795.17 | 100.98 | 896.05 | 38.98 | 0.03635 | 241100 | 2991 |

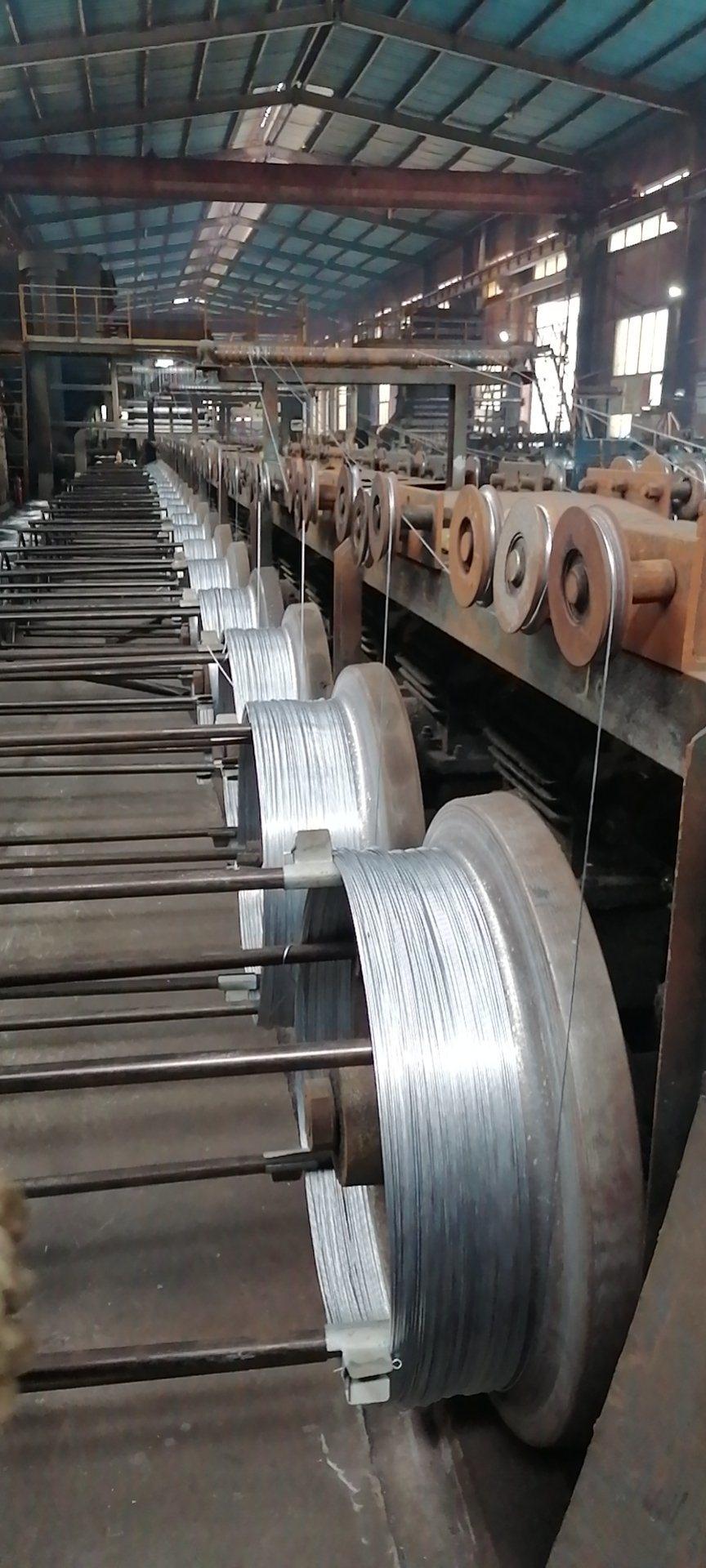

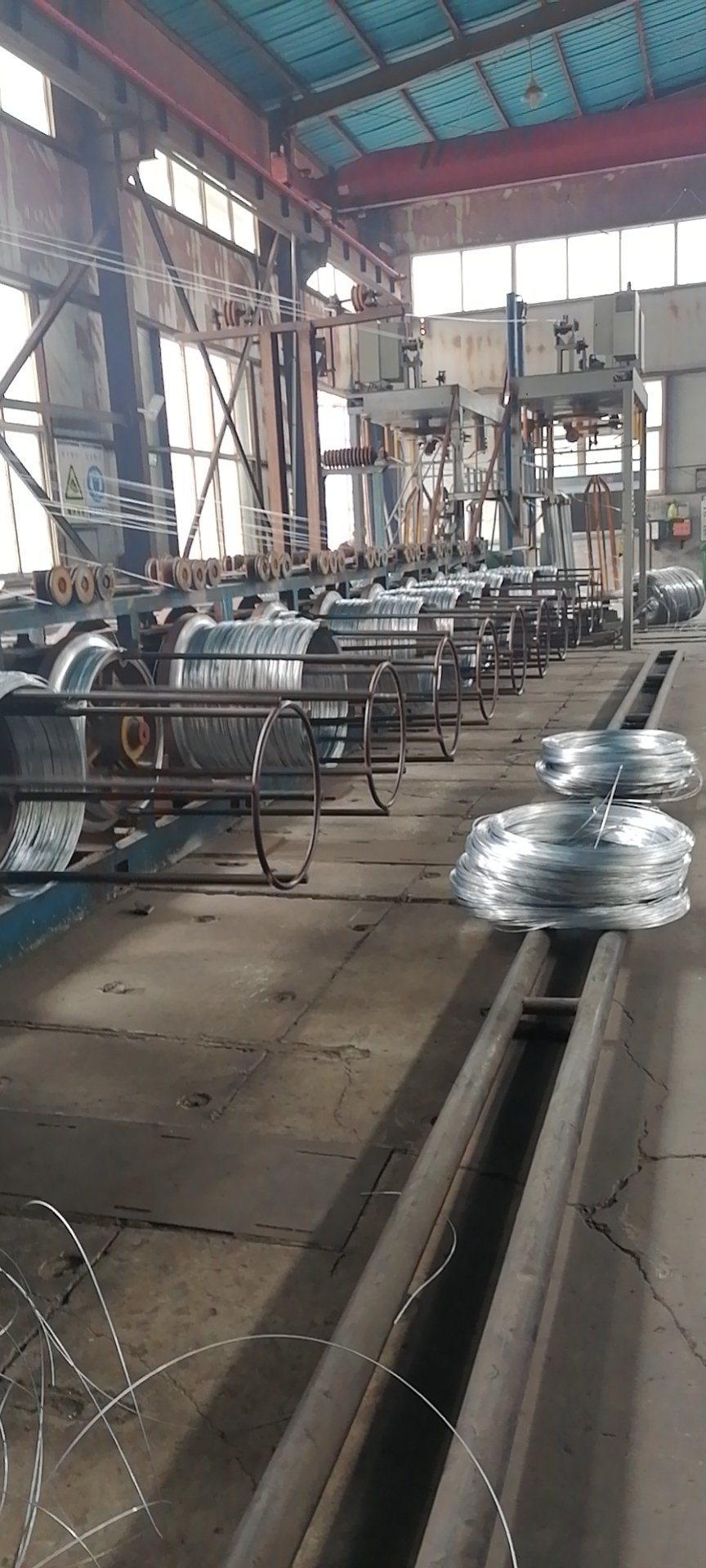

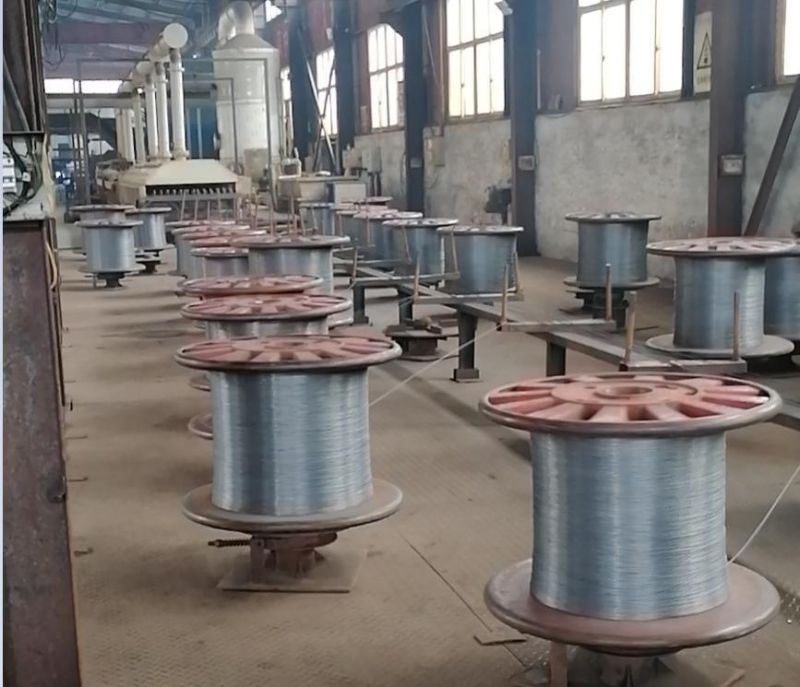

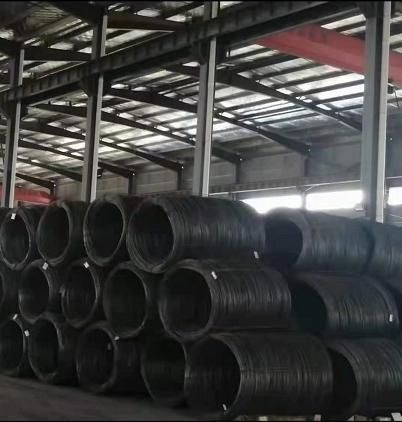

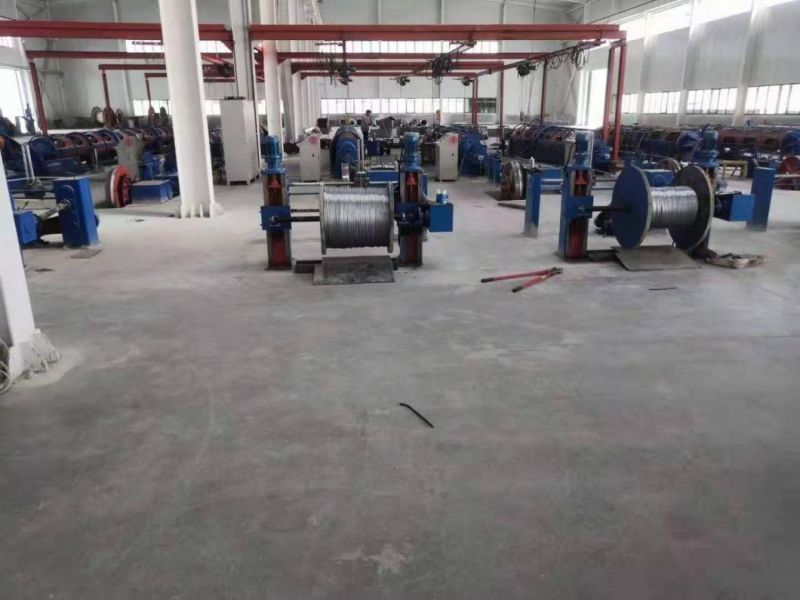

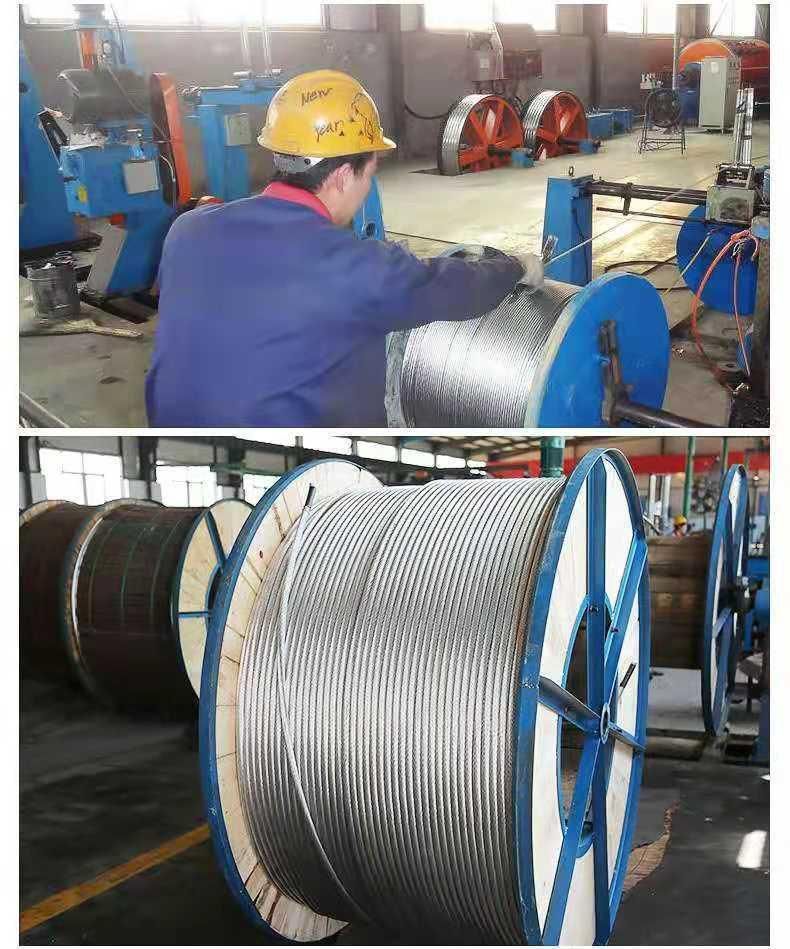

Factory introduction

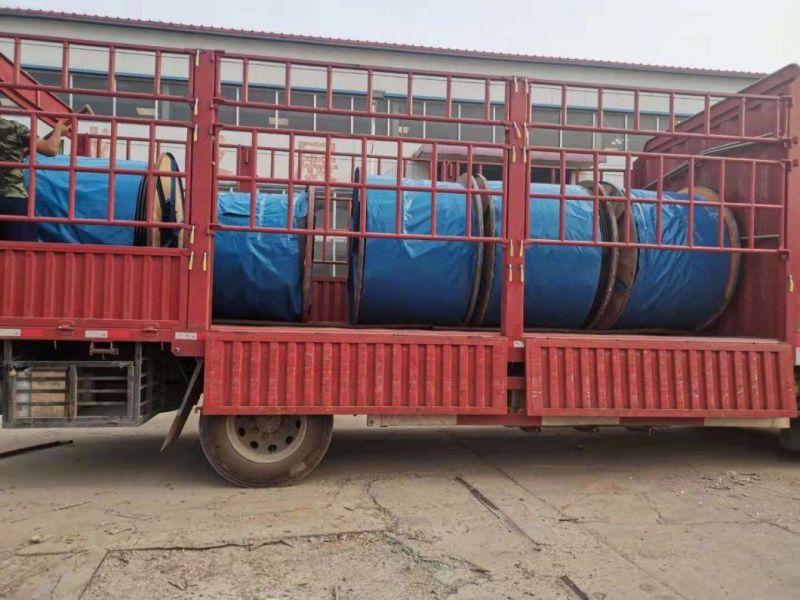

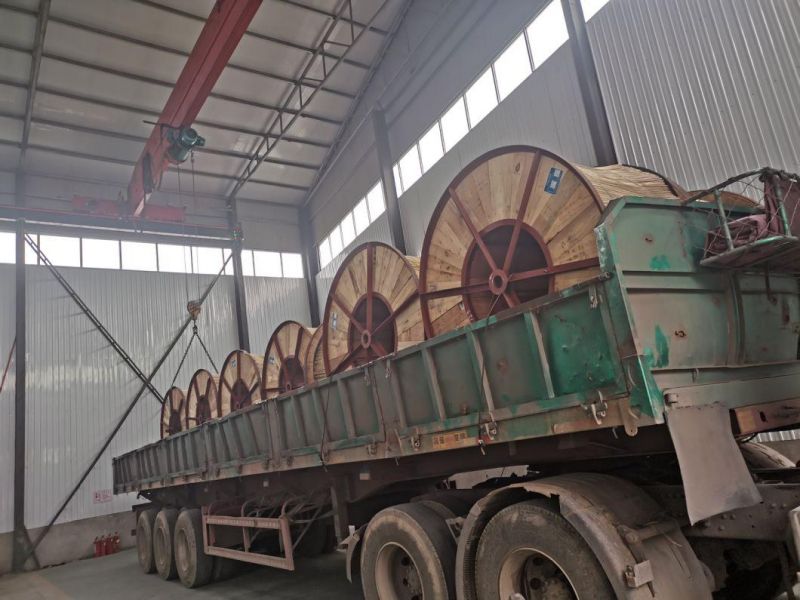

Packing & Delivery
FAQQ1:Are you a factory or a trader?A1:We are the factory, you are welcome to visit the factoryQ2: What is your payment terms?A2: 100% in advance & 30% deposite, 70% balance before shipment.(Credit card,T/T)Q3: Do you provide samples free of charge?A3: Yes,but the shipping cost should be on buyer's account.Q4: Do you provide after-sales service?A4: Yes.If you find that the goods have quality problems,Please submit proof file, picture, video to us,We will investigate and give you a satisfactory solution
