• Model NO.：UL3231
• Range of Application：High Temperature Element
• Certification：ISO9001, UL, CCC, RoHS, VDE
• Brand：Yuanda
• Spec AWG：30-16
• Color：as The Customer Requires
• MOQ：5000 Meters
• Delivery：Within 25 Days
• Certificate：E216252 CSA229260
• Transport Package：Pallet,Carton,Tray,Reel
• Specification：ISO9001, UL, CCC, RoHS, VDE
• Trademark：Yuanda
• Origin：Wuxi, China
• HS Code：8544492100
• Production Capacity：1000km,Day

 Conductor Insulationspec           AWGConductor construction  No./mm Diameter mmNominal thickness(mm)Fiberglass  thickness(mm)Nominal diameter ( mm )Max diameter ( mm )267/0.16 0.480.780.152.42.6247/0.20 0.600.780.152.52.7227/0.25 0.750.780.152.83.1207/0.31 0.930.780.1533.318  7/0.395   1.19  0.78  0.15  3.2 3.516 7/0.495  1.490.780.2 3.6 3.914 41/0.25  1.82 0.78 0.2 4 4.512  45/0.32 2.5 0.78  0.25  5.2 5.710  35/0.45 3.081.18 0.25  6 6.5 8 44/0.50 3.91.53 0.4  7.8 8.5 6 70/0.50 5.5 1.53  0.4  9.4 10.3 4 110/0.50 6.91.530.4 10.8 11.82  175/0.50 8.71.530.4 12.6 13.8 1 217/0.50 102.03 0.5  15.1 16.61/0  276/0.50 11.22.03 0.5  16.3 17.92/0  342/0.50 12.22.030.5 17.3 18.93/0  437/0.50 13.82.030.5 18.9 20.74/0  551/0.50 15.52.030.5 20.6 22.6 250Kcmil  1009/0.40 16.8 2.45 0.5 22.9 25.2 300Kcmil  1216/0.40 18.5 2.45 0.5 24.6 27.1 350Kcmil  1406/0.40 202.450.5 26.1 28.7 400Kcmil  1615/0.40 21.52.450.5 27.6 30.3 450Kcmil 1813/0.40 22.62.450.7 28.9 31.8 500Kcmil  2010/0.40 23.92.45 0.7  30.2 33.2 550Kcmil 2220/0.40 252.8  0.7  32 35.2 600Kcmil 2420/0.40 26.22.8 0.7 33.2 36.5 650Kcmil 1675/0.50 27.32.8 0.7 34.3 37.7 700Kcmil 1808/0.50 28.22.80.7 35.2 38.7 750Kcmil 1935/0.50 29.32.80.7 36.3 39.9

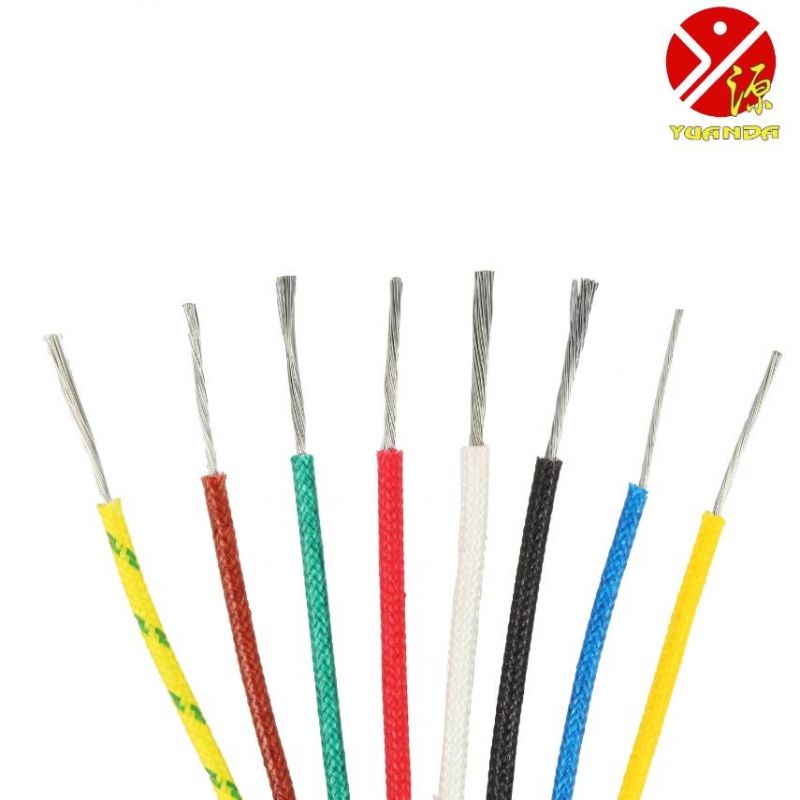

Product Picture

Company Introduction

Jiangyin Yuanda Electrical Material Co., Ltd. is located in Jiangyin, the most developed city in Jiangsu Province ,China. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique location and convenient transportation could be your ideal business choice.

Our main products include:

A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ;
B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , military industry , smart car and etc. for communication ;
C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;
D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;
E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..

Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE,CSA and CCC.

Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.
FAQ:
1.Q: Are you trading company or manufacturer ?
 A:We are factory, with the belief "Good faith makes quality, Quality wins market"

2.Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to order quantity.

3.Q:What certifications do you have?
A:We have ISO9001 , IATF16949 , UL, CUL, VDE, RoHS, REACH and SGS for our wires & cables.

3.Q:What is your payment term?
A:We have several payment terms for you, T/T, Western Union, L/C, etc.

4.Q:Can you do the design for us?
A:Yes, we have a professional team having rich experience in wire and cable design and manufacturing.Just tell us your demands, we will manufacture the cable as your requirements.
