• Model NO.：N2XSY,NA2XSY
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Rneda
• Rated Voltage：11kv
• Cross Section：25mm2-630mm2
• Cores：Single or Three
• Certificate：TUV Psb UL
• Conductor：Alulminum or Copper
• Product Name：N2xsy,Na2xsy Cable
• Sheild：Copper Wire Plus Copper Tape
• Sheathed Material：PVC
• Sheathed Color：Red or Black
• Package：Steel Wooden Drum or Wooden Drum
• Transport Package：Standard Export Drum
• Specification：IEC60502
• Trademark：RNEDA
• Origin：Hebei, China
• HS Code：85444921
• Production Capacity：500km,Month

Basic Info.

Model NO. N2XSY/NA2XSY Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Rneda Rated Voltage 11kv Cross Section 25mm2-630mm2 Cores Single or Three Certificate TUV Psb UL Conductor Alulminum or Copper Product Name N2xsy/Na2xsy Cable Sheild Copper Wire Plus Copper Tape Sheathed Material PVC Sheathed Color Red or Black Package Steel Wooden Drum or Wooden Drum Transport Package Standard Export Drum Specification IEC60502 Trademark RNEDA Origin Hebei, China HS Code 85444921 Production Capacity 500km/Month

Product Description

N2xsy/Na2xsy Electric Single Core XLPE Insulated Copper Wire Shield 11kv Aluminum Power Cable



1. Object
This document defines the design and manufacturing characteristics of the cables type
RHZ1-OL 12/20 kV Al+H16 manufactured by HuaTong Cables.
2. Design
This type of cable is designed, manufactured and tested according to UNE-HD 620-10E and
IEC 60502-2.
3. Applications
Cables for fixed installations. Suitable for transport and distribution of electric power in
medium voltage networks. Halogen-free. These cables are suitable for indoor, outdoor and
buried installations.
 4. Characteristics
Nominal voltage: 12/20 (24) kV
Minimum service temperature: -15 °C
Maximum conductor temperature: 90 °C
Maximum short-circuit temperature: 250 °C (maximum 5 s)
Minimum bending radius: 15 x cable Ø
Halogen-free: according to EN 50267 / IEC 60754
HCl content < 0,5 %
pH > 4,3
conductivity < 10 μS/mm

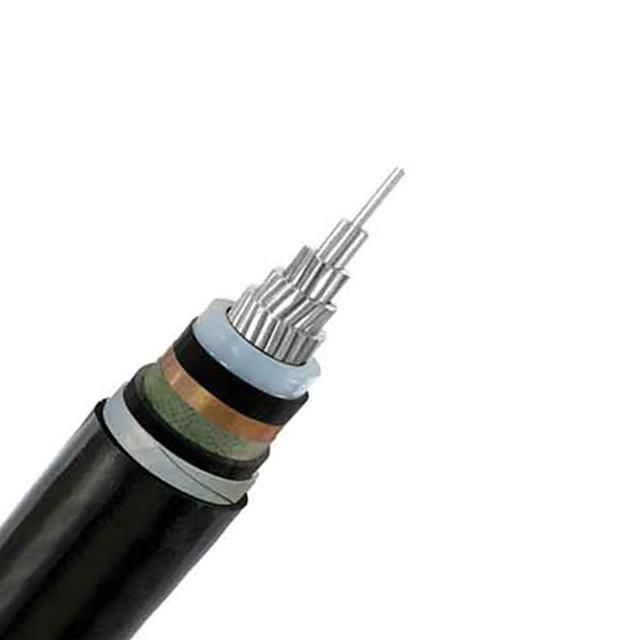

5. General make-up of the cable
5.1 Conductor
Electrolytic annealed aluminum conductor, class 2 according to EN 60228 / IEC 60228.
Optionally, hygroscopic tapes can be applied to achieve longitudinal water-tightness
on the conductor (cable type -2OL)
5.2 Inner semi-conducting screen
A cross-linked semiconductor screen was applied over the conductor in a triple-extrusion process.
5.3 Insulation
Cross-linked polyethylene insulation, type DIX-3 according to HD 620-1 and type XLPE
according to IEC 60502-2; natural color. Cross-linked in catenary line with nitrogen
atmosphere.
5.4 Outer semi-conducting screen
Cross-linked semiconductor screen applied over insulation in a triple-extrusion process.
Strippable.
Optionally, under customer requests, it can be supplied non-strippable (bonded to insulation).
5.5 Metalic screen
The metallic screen made with Cu wires and Cu binder tape applied over the outer semiconducting
layer.
5.6 Water blocking
The hygroscopic tape is applied over the metallic screen.
5.7 Outer sheath
Polyolefine outer sheath, type DMZ1 according to HD 620-1 and type ST7 according to IEC
60502-2; red color.
6 Datasheet:

Cross-section	Screen	Conductor	Insulation	Outer	Weight
mm2	mm2	mm	mm	mm	KG/KM
1x50	16	8	20.2	27.9	770
1x70	16	10.1	22.3	30.4	905
1x95	16	11.3	23.5	31.5	1000
1x120	16	12.7	24.9	33.6	1140
1x150	16	14.2	26.4	35.1	1260
1x185	16	16	28.2	36.9	1405
1x240	16	18	30.2	39.4	1635
1x300	16	21	33.2	42.4	1865
1x400	16	23.4	36.4	45.6	2225
1x500	16	27	40.4	49.2	2585
1x630	16	31.5	44.5	53.7	3130
1x800	16	34	47	57.2	3775
1x1000	16	39	51.7	60.5	4450
