Electric UL4703 Listed/TUV/RoHS H1z2z2K UV Resistant DC 4mm 6mm PV/PV1f Wire for Mc4 Solar Panel DC Cable 10AWG/12AWG

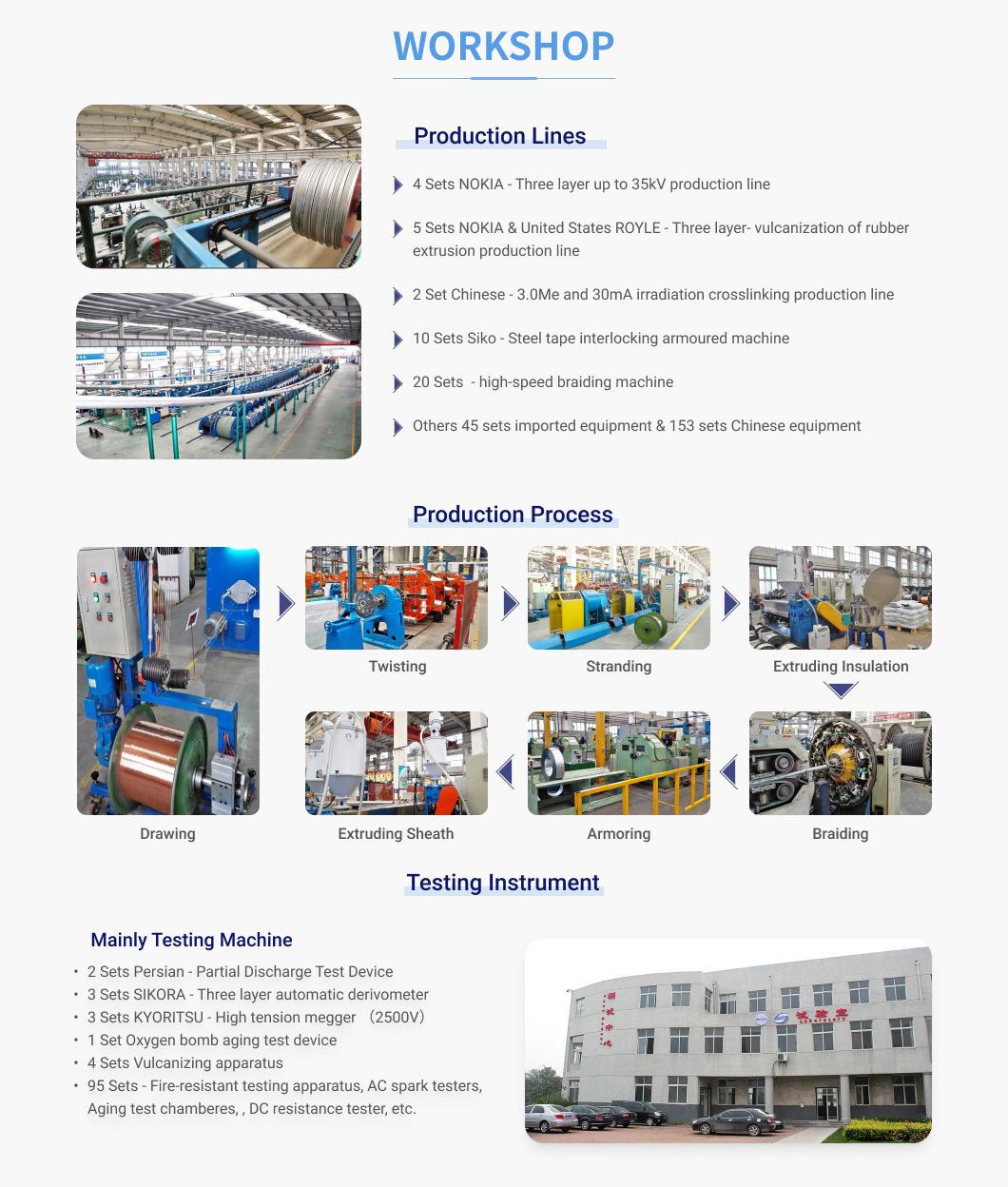

Hebei Huatong Wires & Cables Group Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:PV Plant, Solar System
- Conductor Material:Tinned Copper, Bare Copper, Aluminum
- Sheath Material:Xlpo
- Insulation Material:Xlpo
Base Info
- Model NO.:solar cable
- Material Shape:Round Wire
- Range of Application:LSOH
- Certification:UL, RoHS, En 50618, TUV 2pfg PV1f
- Brand:Rneda
- Standard.:UL 4703, TUV 1169, En 50618
- Certificate.:UL TUV
- Cross Section:12AWG to 1000kcmil
- Core:Single

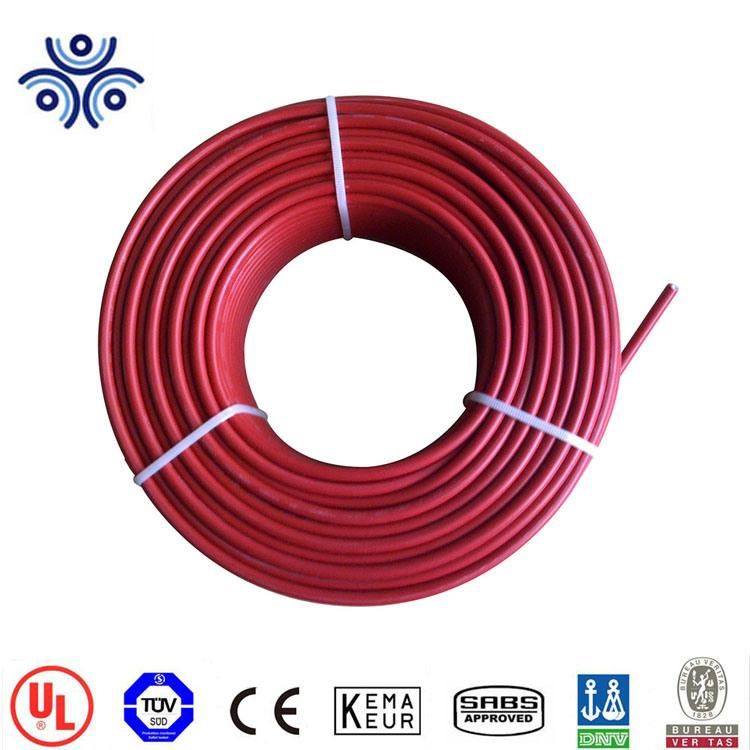

- Insulated Color:Red, Blue Black
- Price:Direct Factory Price
- Product Type:Solar PV Cable
- Characteristic:-40 Degree, UV Resistant, VW-1
- Market:North America
- Conductor:AA8000, Bare Copper, Tinned Copper
- Transport Package:Flexible or Drum Packing
- Specification:1.5-240, 12AWG-1000KCMIL
- Trademark:RNEDA
- Origin:China
- HS Code:8544492100
- Production Capacity:1000000meter Per Month

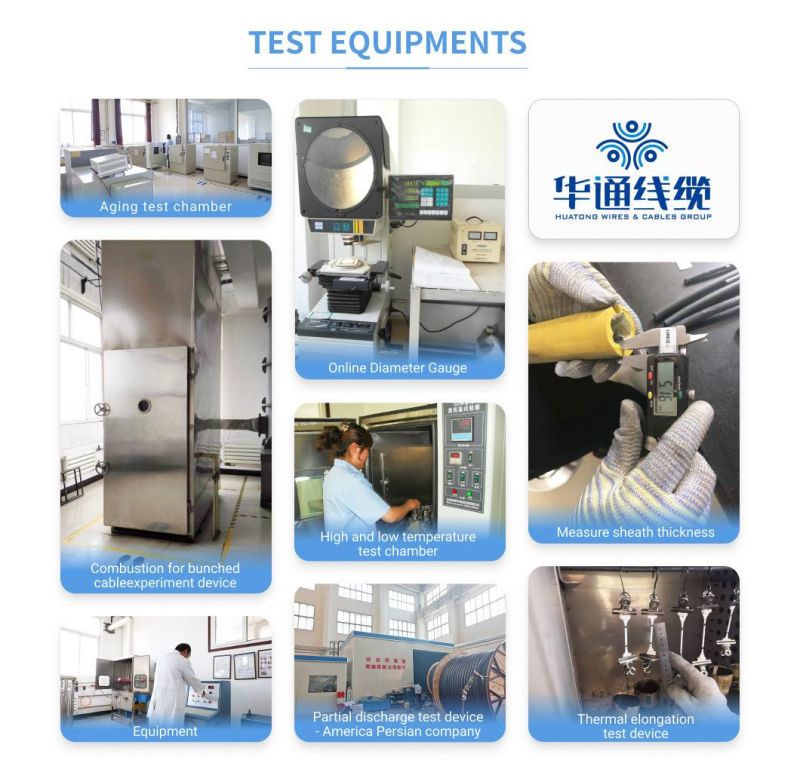

Description
Basic Info.
Model NO. solar cable Material Shape Round Wire Range of Application LSOH Certification UL, RoHS, En 50618, TUV 2pfg PV1f Brand Rneda Standard. UL 4703, TUV 1169, En 50618 Certificate. UL TUV Cross Section 12AWG to 1000kcmil Core Single Insulated Color Red, Blue Black Price Direct Factory Price Product Type Solar PV Cable Characteristic -40 Degree, UV Resistant, VW-1 Market North America Conductor AA8000, Bare Copper, Tinned Copper Transport Package Flexible or Drum Packing Specification 1.5-240, 12AWG-1000KCMIL Trademark RNEDA Origin China HS Code 8544492100 Production Capacity 1000000meter Per MonthProduct Description

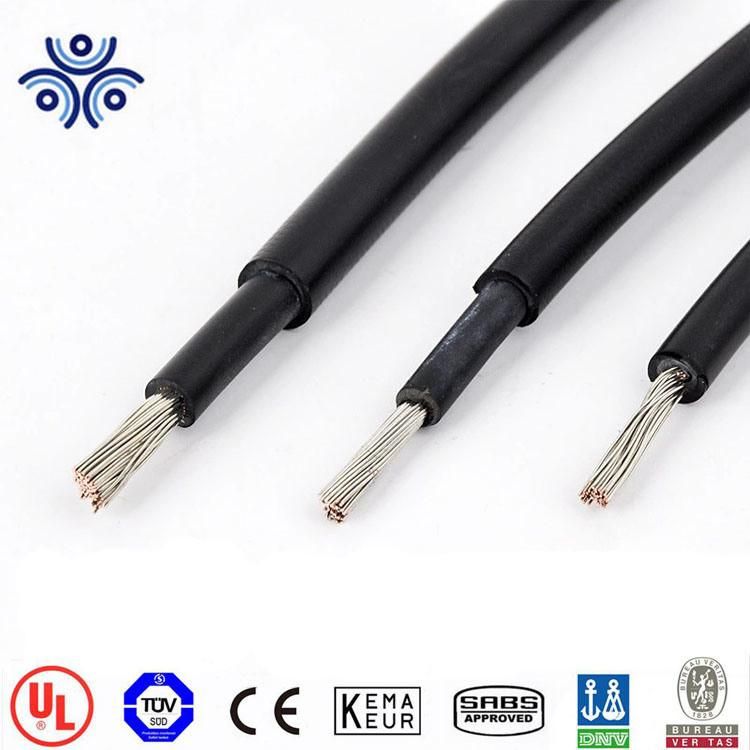

Electric UL4703 Listed/TUV/RoHS H1z2z2K UV Resistant DC 4mm 6mm PV/PV1f Wire for MC4 Solar Panel DC Cable 10AWG/12AWGPV wire is rated 600, 1000 or 2000 V, and is suitable for ac and dc systems. This wire is rated 90, 105, 125 or 150°C dry and 90°C wet. PV wire employs 12 AWG - 2000 kcmil stranded aluminum or copper-clad aluminum, or18 AWG - 2000 kcmil stranded copper, tinned copper conductors.
Application:
This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in the balance of system (BOS) integration.
UL Type PV (Photovoltaic) UL 4703, 600V, -40°C to 90°C
Single-Conductor: 2kV • Rated 90°C • RHH/RHW-2 • CSA 1kV RPV-90
Product Description:
Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gauge sizes.
Electrical Characteristics:
--Maximum Operating Voltage: 600 VRMS (UL PV)

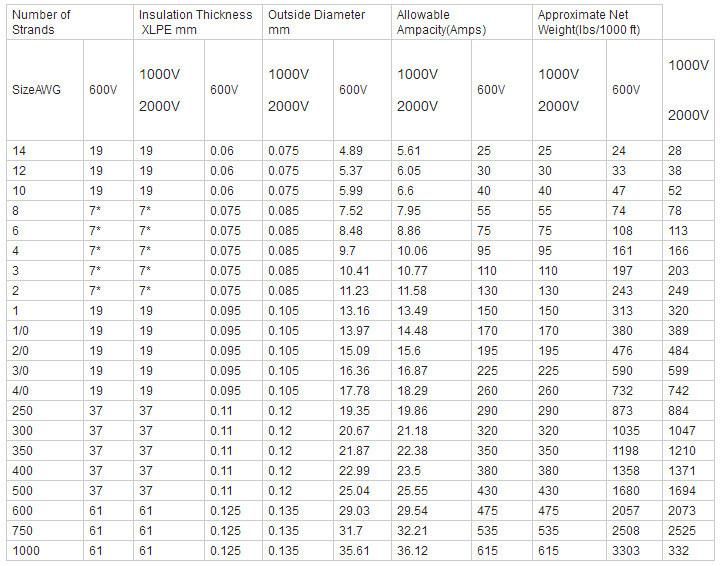

Physical Characteristics:
--Temperature Rating: -40°C to 90°C
--Conductor AWG: 12 to 2000 AWG
--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
--Separator: Paper Tape
--Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
--Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated, flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
--Min. Bend Radius: 8x Diameter
Physical Characteristics (contd.):
--Applicable Specifications:
UL Type PV (overall) UL 4703 USE-2 Rated (14 AWG & Larger 600V)
UL Type RHW-2 (90°C wet) (14 AWG & Larger per UL)
ROHS Compliant CE
--Flame Resistance: VW-1
Part 2: EN50618 tinned copper conductor 4mm 6mm 10mm pv1f PV solar cable
1. Rating Voltage:
AC 600/1000V, DC1000/1800V Temperature:-40°C-- 125°C
2. Material:(1)Conductor: Tinned annealed copper(2)Insulation:125°C XLPO, black(3)Jacket:125°C XLPO, black or red 3 Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.4 General characteristicCable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with an improved reaction in case of fire.
1. Double insulation, electron beam cross-linked
2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3. Excellent resistance to abrasion
4.Halogen-free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. TUV and UL approved
Specification:
Cross Section (mm²) | Conductor Construction (n/mm) | Conductor Stranded OD.(mm) | Insulation Min.Wall Thickness(mm) | Sheath Min.Wall Thickness(mm) | Cable OD.(mm) | Conductor Max.Resistance AT20°C (Ω/km) | Current Arrange Capacity AT 60°C(A) |
1.5mm² | 30/0.25 | 1.58 | 0.67 | 0.73 | 4.90 | 13.3 | 30 |
2.5mm² | 50/0.25 | 2.02 | 0.67 | 0.73 | 5.45 | 7.98 | 41 |
4mm² | 56/0.30 | 2.60 | 0.67 | 0.73 | 6.10 | 4.95 | 55 |
6mm² | 84/0.30 | 3.42 | 0.8 | 0.80 | 7.20 | 3.30 | 70 |
10mm² | 142/0.30 | 4.56 | 0.9 | 0.90 | 9.00 | 1.91 | 98 |
16mm² | 228/0.30 | 5.60 | 1.00 | 0.90 | 10.20 | 1.21 | 132 |
25mm² | 361/0.30 | 6.95 | 1.19 | 0.92 | 12.00 | 0.780 | 176 |
35mm² | 276/0.40 | 8.74 | 1.20 | 1.00 | 13.80 | 0.554 | 218 |
