• Model NO.：ADSS(GYFTCY)
• Core：Multicore
• Certification：CE
• Brand：OEM
• Sheath Material：PE
• Delivery Time：Fifteen Days
• Transport Package：Causes of Pragmatic Failures in Nonverbal Communic
• Specification：CE
• Trademark：jinlong
• Origin：Hangzhou Linan
• Production Capacity：500 Kilometers Per Week

Items
Unit
A
B
C
D
E
F
span
m
100
200
300
400
500
600
Outer Dia.
mm
11.6
12.0
12.3
12.5
12.8
13.8
Weight
PE sheath
Kg/km

124.2
131.1
136.3
141.4
146.5
165.9
At sheath
132.6
139.9
145.3
150.7
156.0
176.3
Cross area
mm²
105.68
112.70
117.90
123.07
128.19
150.21
Area of strength member
mm²
5.67
10.20
13.62
17.02
20.43
26.10
RTS
kN
8.50
15.30
20.40
25.50
30.60
39.10
MOTS
kN
3.40
6.12
8.16
10.20
12.24
15.64
EDS
kN
2.13
3.83
5.10
6.38
7.65
9.78
Ultimate exceptional stress
kN
5.10
9.18
12.24
15.30
18.36
23.46
Modulus
kN/ mm²
8.44
12.52
15.27
17.79
20.11
21.71
Thermal expansion coefficient
10-6/
9.32
5.28
3.78
2.80
2.12
1.42
Crush Strength
Operation
N/10cm
1000
1000
1000
1000
1000
1000
Installation
N/10cm
2200
2200
2200
2200
2200
2200
Safety factor

2.5
2.5
2.5
2.5
2.5
2.5
Min bending radius
Operation
mm
174
180
185
188
192
207
Installation
mm
290
300
308
313
320
345
Temperature
Installation

-10~+60
-10~+60
-10~+60
-10~+60
-10~+60
-10~+60
Transport

-40~+70
-40~+70
-40~+70
-40~+70
-40~+70
-40~+70
Operation

-40~+70
-40~+70
-40~+70
-40~+70
-40~+70
-40~+70
Sag(5mm ice load
Average 20)
PE
%
0.72
0.84
1.06
1.28
1.47
1.57
AT
0.76
0.90
1.12
1.35
1.54
1.63

The way: Self-support Aerial


More product for you to choose:
Aerial optic fiber cables, Duct optic fiber cables, Direct burial optic fiber cables, Underground optic

fiber cables; ADSS sll dielectric self-supporting optic fiber cables,FRP strength member optic fiber cables, etc.

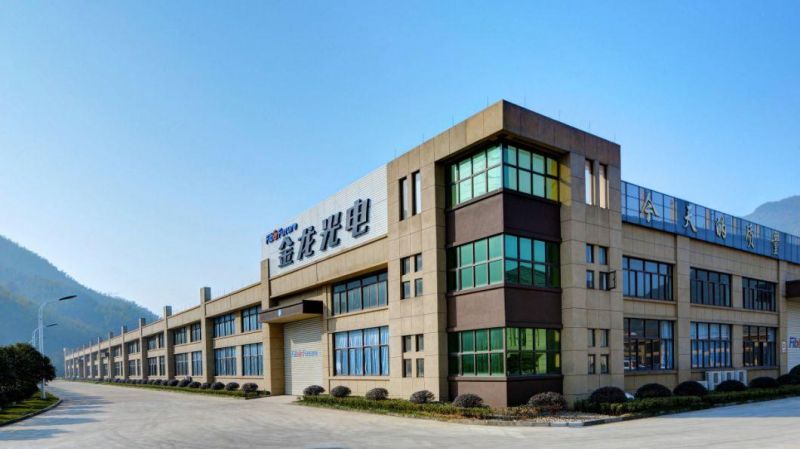

Company Profile

Hangzhou Jinlong Optical Cable Co.,Ltd is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel ,with pleasant geographical location and convenient transportation.

Founded in September 1994, our company is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the welding of the construction.From March 2018, we developed and manufactured optical fiber preform (Fiber Preform) and optical fiber .Our company is awarded as the one of the enterprise with the rapidest growth ,as well as the AAA level credit enterprise by financial institutions.

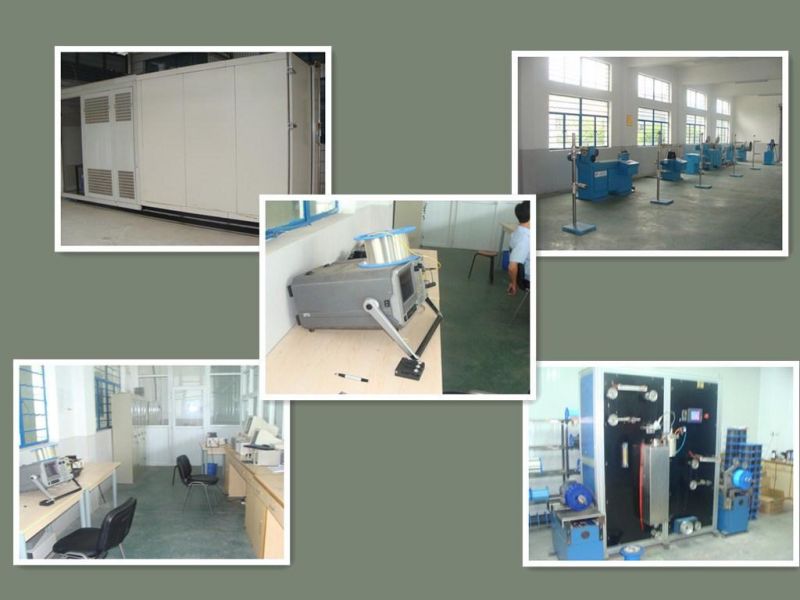

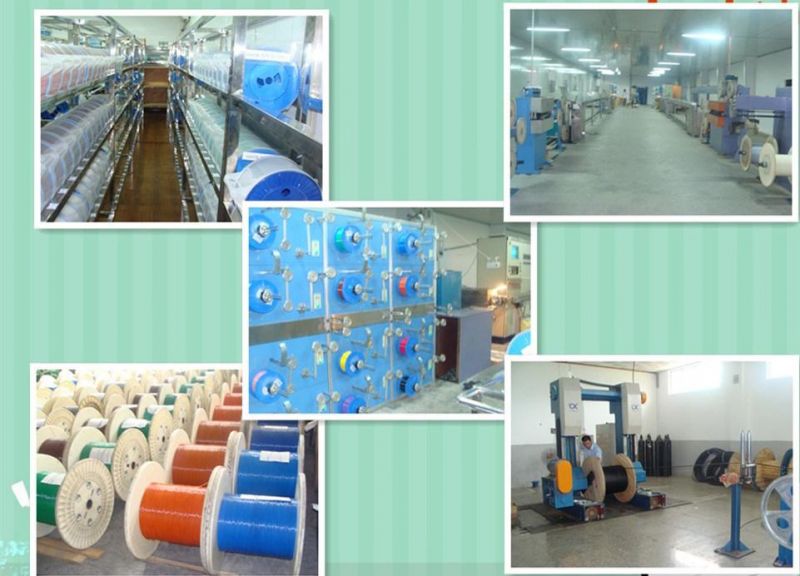

Our company ,armed with advanced production and testing equipment ,and the state council allowance optical communication experts as the chief engineers,has the ability to gain an output of 6, 000, 000km cores-length cable ,300t optical fiber preform and 10,000,000cores optical fiber every year ,and the unitary property and index are in line with or beyond industrial and international standard. The most products have passed ISO9001 international quality system authentication,and won the STRFT ,CE,TLC certificates. Our company has a long-term OEM cooperation not only with groups who manufacture for " China mobile" , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation.Our fiber optic cable has been exported to many oversea countries, and enjoys pleasant reputation and recognition among our cooperation partners .

 Our company will actively joins in Chinese and foreign cooperation with excellent enterprise credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.

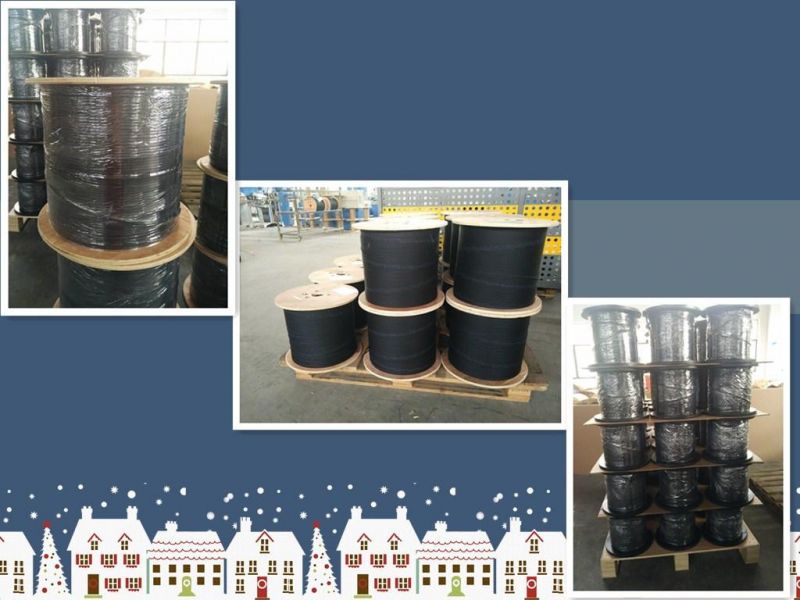

Packaging & Shipping

1. Shipped within 15 days after received full payment
2. Packing with Fumigation Wooden Drum or Iron-Fumigation Wooden Drum .
3. 2 km/drum ,cable is covered with plastic waterproof film.
4. Inner packed in fumigated wooden drum, and outer covered by polyethylene sheet,then sealed by strong wooden battens;or any other package you see from the market we can make for u as well,any OEM order is welcome.

FAQ
Q: Why should I rely on you?

RE:We are the Assessed Supplier of hzjl2010.en.made-in-china.com. Alibaba as the third party to verify our factory and

office to confirm we are a real and realiable supplier. You can download the report on our company

news page. When you did  contact our sales and we are available to video chat with you and show

you our beautiful office.

Q: How about the cables' quality ?

RE: Our factory is approved by ISO9001 quality management system and including TüV, UL,CE,

RoHS Certifications at list. We have a series of equipment and instruments to make sure reliable

quality of our products.

Q: Do you accept the OEM order and how many is the MOQ ?

RE: Yes, we warmly welcome your OEM order .To achieve customer's satisfaction ,we accept sample order, even one Piece.
