• Shape：T
• Interface Type：HDMI
• Certification：RoHS, ISO9001, UL
• Brand：Cablelinker
• Cable：FFC,FPC
• Color：Black,White
• Thickness：0.13mm Around
• Cable Length：30mm-1000mm Customized
• Cable Type：Zero Insertion Force(Zif)
• Cable UL No#：UL20890,UL20566,UL2643,UL2062
• Bending：Yes
• Shielded：Al Coils, Acetate Tape etc.
• Connector：Standard HDMI, Mirco HDMI, Mini HDMI
• Country of Origin：China
• Transport Package：Carton
• Specification：Customized
• Trademark：Cablelinker
• Origin：China
• Production Capacity：50000 Pieces Per Week

Basic Info.

Shape T Interface Type HDMI Certification RoHS, ISO9001, UL Brand Cablelinker Cable FFC/FPC Color Black/White Thickness 0.13mm Around Cable Length 30mm-1000mm Customized Cable Type Zero Insertion Force(Zif) Cable UL No# UL20890,UL20566,UL2643,UL2062 Bending Yes Shielded Al Coils, Acetate Tape etc. Connector Standard HDMI, Mirco HDMI, Mini HDMI Country of Origin China Transport Package Carton Specification Customized Trademark Cablelinker Origin China Production Capacity 50000 Pieces Per Week

Product Description

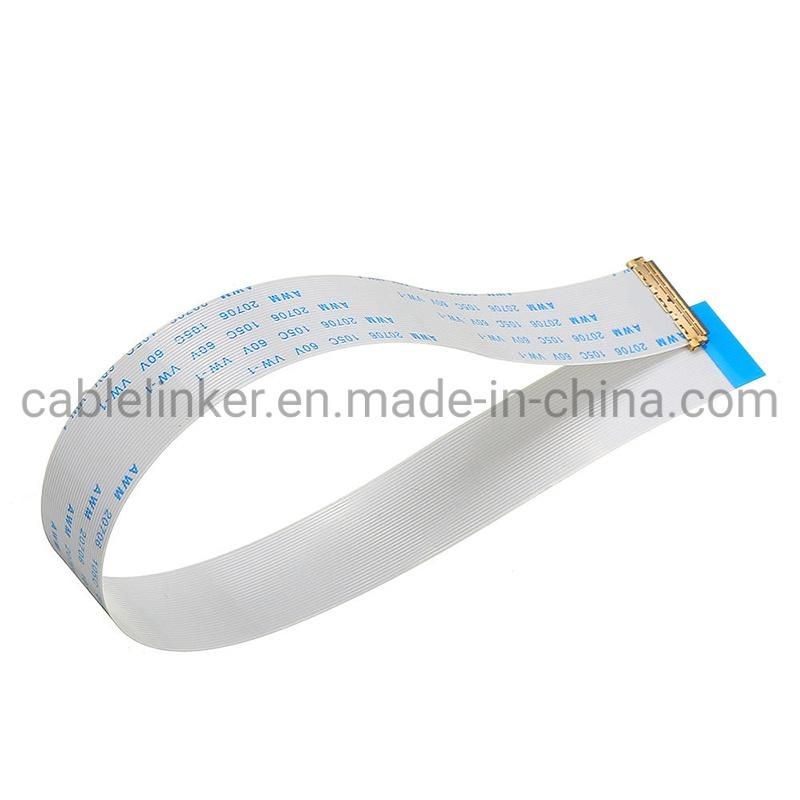

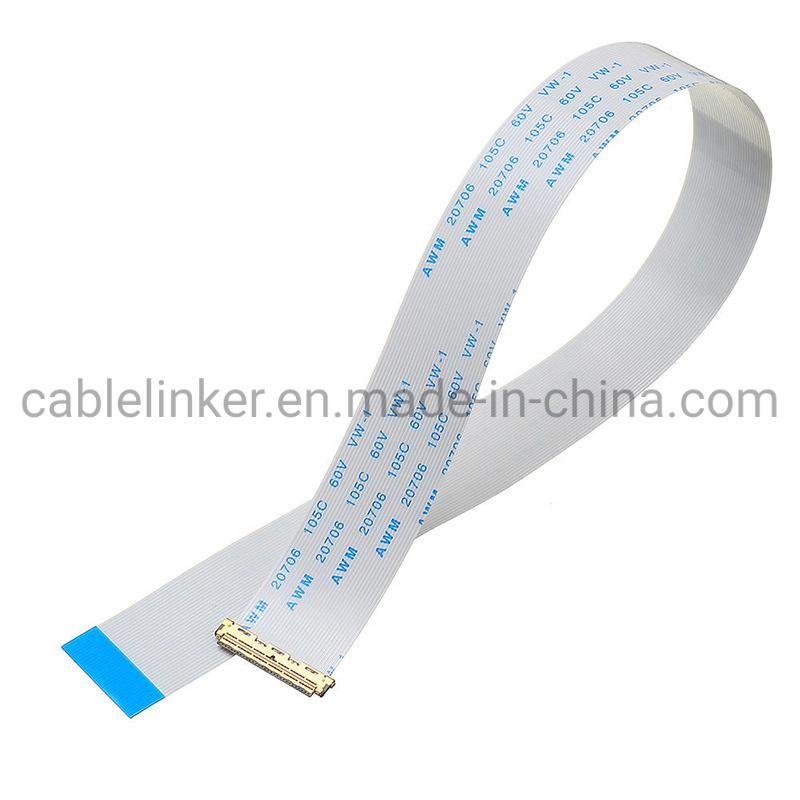

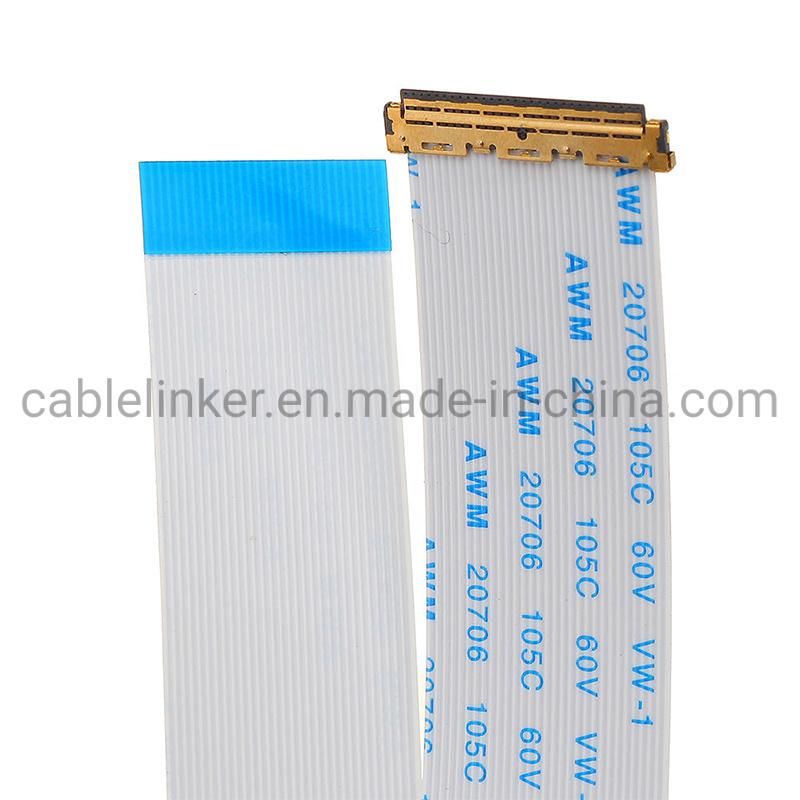

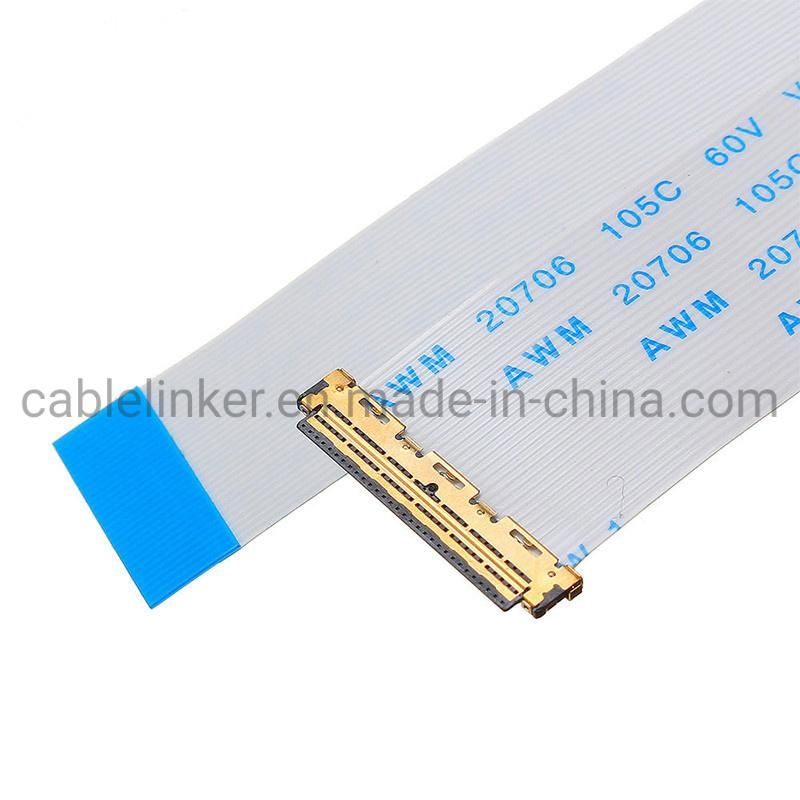

IPEX LVDS ffc 40pin 30pin 20 pin ffc fpc cable for LCD

FFC (Flat Flexible Cable) standards:

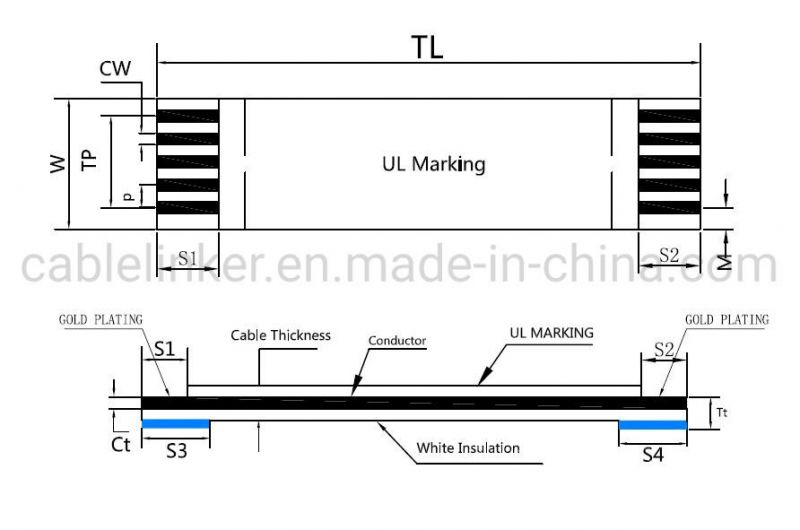

The FFC cable standard includes the following aspects: PIN number, FFC cable spacing, the size of the conductor inside the FFC cable, the length of the bare wire of the cable, the length of the reinforcing plate, and so on.

1. The PIN number of the FFC cable arranger ranges from 2 to 100;

2. There are 7 common spacing of the FFC cable: 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 2.0mm, 2.54mm. Other pitches can be customized.

3. The size of the conductor inside the FFC cable has 8 common standards: 0.035*0.3mm, 0.05*0.5mm, 0.05*0.7mm, 0.05*1.0mm, 0.1*0.5mm, 0.1*0.7mm, 0.1*0.8mm , 0.1*1.6mm;

4. the exposed conductor length of the FFC cable is 3-10mm;

5. The length of the reinforcing plate of the FFC cable is 3.5-20mm.

FFC Cable	Specification
Pitch	0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 2.0mm and 2.54mm Or customized pitch
Conductor	0.035*0.3, 0.05*0.5, 0.1*0.65, 0.05*0.5 etc
Insulation	0.043, 0.06, 0.1, 0.08 etc.
Reinforcing Tape	0.16, 0.225, 0.25
With Blue stiffen	4-8 mm & 3-5mm etc.
Contact Side	Same & Opposite
Pin contact	2,3,4,5,6,7,8,9,10....100 pin (According to customers' request)
Length	20mm-10000mm (According to customers' request)
Cable Type	UL20624 80C,60V & UL20726 80C,30V etc.
Color	White & Black
Service	OEM/ODM products are acceptable.
Certificate	ISO9001:2008, RoHS, SGS.

About Us:

Cablelinker Electronics Limited is engaged in FFC cable, FPC cable, LVDS cable, ribbon cable and cable assembly business. For these years we have successfully applied its products to many aspects, such as automobile, security and protection, household appliances, energy power, mobile communication, industrial automation, medical apparatus ect.

Our Mission is to provide custom cabling solution and deliver high-quality cabling products for connectivity to customer worldwide.
