• Model NO.：PV004
• Certification：TUV
• Wire Core Material：Tinned Wire
• OD size：6.5mm, 7.3mm
• Transport Package：Polybag+ Carton
• Specification：4mm2, 6mm2
• Trademark：WEIDAN ELECTRONICS
• Origin：China
• HS Code：8544491100
• Production Capacity：300000PCS,Month

Basic Info.

Model NO. PV004 Certification TUV Wire Core Material Tinned Wire OD size 6.5mm, 7.3mm Transport Package Polybag+ Carton Specification 4mm2, 6mm2 Trademark WEIDAN ELECTRONICS Origin China HS Code 8544491100 Production Capacity 300000PCS/Month

Product Description

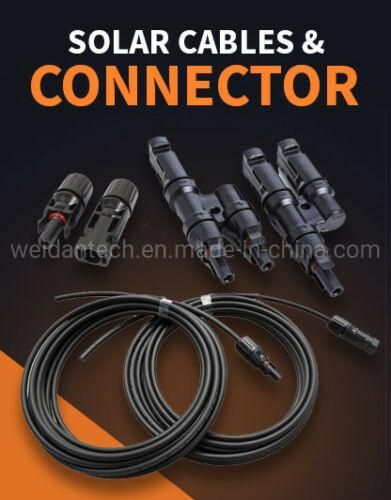

H1Z2Z2-K, EN50618 Black/Red Color Solar Photovoltaic Cable, 2.5mm2/4.0mm2/6.0mm2,  Halogen free Copolymer insulation and Anti-UV  LSZH outer sheath.
---- Suitable for all photovoltaic systems for cabling of solar modules and connection to the AC/DC inverter.

Characterisitc:
*Duarable Insulation and very nice waterproof quality (IP67) enable  for all kinds of wwather.
* Inner Conductor: Flexible Tinned Copper Wire
*Dielectric: LSZH Halogen free Copolymer (UV resistant)
*one side with Male Solar Connector, and the others comes with Female Solar Connectors, with Waterproof IP67
*Colored Cable (RED +Black) easy for use, avoid any mixed connected and short circuit.

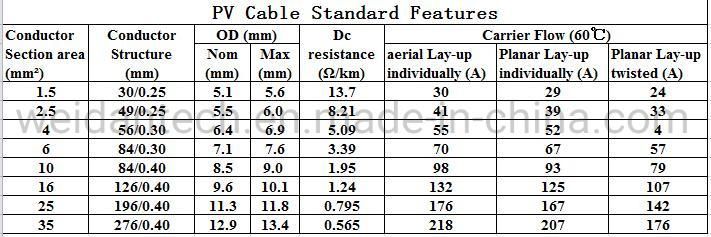

Speficiations:
* Temperature range: -40ºC to 90ºC;  (Move)
                                  -120ºC to 90ºC  (Fixed)
*Nominal Voltage [U0/U] AC 600/1000V, DC900/1500V
*Alternating Text Voltage: AC 6.5KV/ DC:15 KV
*DC Resistance Conductor: 2.5mm2≤7.98 Ω/km
                                             4.0mm2≤4.95 Ω/km
                                              6.0mm2≤3,30 Ω/km
*Cable Structure: Tinned Plated Copper wires, Stranded, IEC60228 Class 5 Double Insulated isolations,
                             1500V EN50618
* Chemically Cross-linked special compound
