• Model NO.：GYFTC8Y
• Core：Multicore
• Certification：CE, ISO9001
• Brand：OEM
• Sheath Material：PE
• Name：Aerial Self Supporting Optical Fiber Cable
• Number of Cores：up to 288 Cores
• The Way：Direct Buried
• Temperature：-40--60
• Outer Sheath：HDPE
• Color：Black
• Transport Package：Wooden-Drum or Iron-Wooden Drum
• Specification：ISO9001, CE
• Trademark：JingLong
• Origin：China(Mainland)
• HS Code：8544700000
• Production Capacity：2000km,Month

Basic Info.

Model NO. GYFTC8Y Core Multicore Certification CE, ISO9001 Brand OEM Sheath Material PE Name Aerial Self Supporting Optical Fiber Cable Number of Cores up to 288 Cores The Way Direct Buried Temperature -40--60 Outer Sheath HDPE Color Black Transport Package Wooden-Drum or Iron-Wooden Drum Specification ISO9001, CE Trademark JingLong Origin China(Mainland) HS Code 8544700000 Production Capacity 2000km/Month

Product Description

2-288cores Aerial Self Supporting Fiber Optic Cable with FRP Csm


This specification covers the G652D 24 core fiber optic cable price per meter figure8 cable and technical properties complying with the latest YD/T 1155-2011 standard

FRP strength member, Loose tube stranded and filled with jelly, water blacking tape and water black yarns, aluminium tape, Outer HDPE sheath, two rip cods for easy open out sheath, 2.7mm,3.0mm 3.6mm,3.9mm,4.2mm,6.0mm galvanized stranded steel wire. Self supporting type optical cable for outdoor.



1. up to 288 fibers, SM G652D, G655, G656, G657A  MM 50/125,60/125 optic fiber

2.Steel strand diameter.3.0mm 3.6mm 3.9mm,4.2mm,6.0mm

3.Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.

4.Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN

G652D optical fiber cable self supporting for aerial

5.1 Mechanical & environmental characteristics

5.1.1 Cable bending radius: 10 x cable diameter (during operation)

20 x cable diameter (during installation)

5.1.2 Temperature range

Operating temperature range	-40oC to +70oC
Storage / Transport temperature range	-50oC to +70oC
Installation temperature range	-20oC to +60oC

 5.2 Main mechanical & environmental characteristics test  / G652D 24 core fiber optic cable price per meter figure8 cable

NO	ITEM	TEST METHOD	ACCEPTANCE REQUIREMENTS
1	Tensile Strength IEC 794-1-E1	- Load: 4000/6000/8000N  - Length of cable under load: 50m	- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage.
2	Crush Test IEC 60794-1-E3	- Load:1500 N/100mm - Load time:  1min	- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage.
3	Impact Test IEC 60794-1-E4	- Points of impact: 5 - Times of per point: 5 - Impact energy: 450g - Radius of hammer head: 12.5mm - Impact rate: 2sec/cycle	- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage.
4	Repeated Bending IEC 60794-1-E6	- Bending Dia.: 20 x OD - Load: 250N - Flexing rate: 3sec/cycle - No. of cycle: 30	- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage.
5	Torsion IEC 60794-1-E7	- Length: 1m - Load: 250N - Twist rate: 1min/cycle - Twist angle: ±90° - No. of cycle: 10	- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage.
6	Water Penetration IEC 60794-1-F5B	- Height of water: 1m - Sample length: 3 m - Time: 12 hour	- No water shall have leaked from the opposite end of cable
7	Temperature Cycling IEC 60794-1-F1	- Temperature step: +20oC→-45oC→+60oC →+20oC - Time per each step: 12 hrs - Number of cycle: 2	- Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage.
8	Compound Flow IEC 60794-1-E14	- Sample length: 30 cm - Temp: 70°C ± 2°C - Time: 24 hours	- No compound flow
9	Sheath High Voltage Test	- On line test - 9t KV (t-sheath thickness)	- No sheath breakdown

6.1 packing ( G652D optical fiber cable self supporting for aerial  )

6.1.1 Each single length of cable shall be reeled on Fumigated Iron Wooden Drum suitable for long distance shipment.

6.1.2 Covered by plastic buffer sheet.

6.1.3 Sealed by strong wooden battens.

6.1.4 At least 1 m of inside end of cable will be reserved for testing

6.1.5 Drum length

6.1.5.1 Standard drum length is 2000m,3000m,4000m,5000m,6000m±2%;

6.1.5.2 Total quantity is at least the ordered quantity.

6.2. Drum Marking

6.2.1 Cable drum

-Manufacturer brand or name;

-Roll-direction arrow;

-Cable outer "end" position indicating arrow;

-The word "OPTICAL FIBER CABLE";

-Caution plate indicating the correct method for loading, unloading and convey the cable;

6.2.2 Marking plate

-Cable type;

-Cable length;

-Gross / Net weight in kilograms;

-Drum number;

-Manufacturing year and month;

-Project number, contract number or purchasing order number (if needed).

6.3 Cable identification documents

-Cable date sheet (Test report).

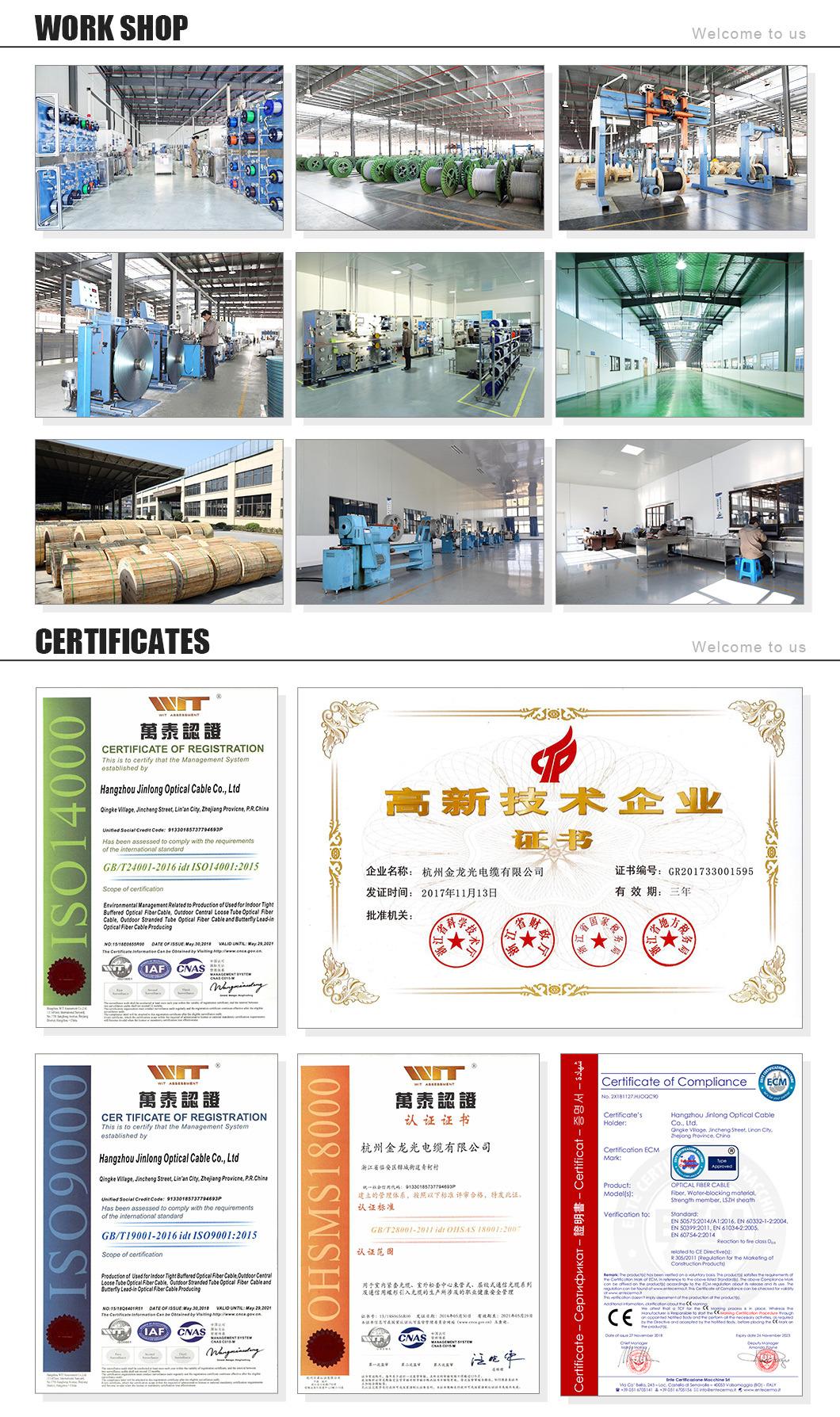

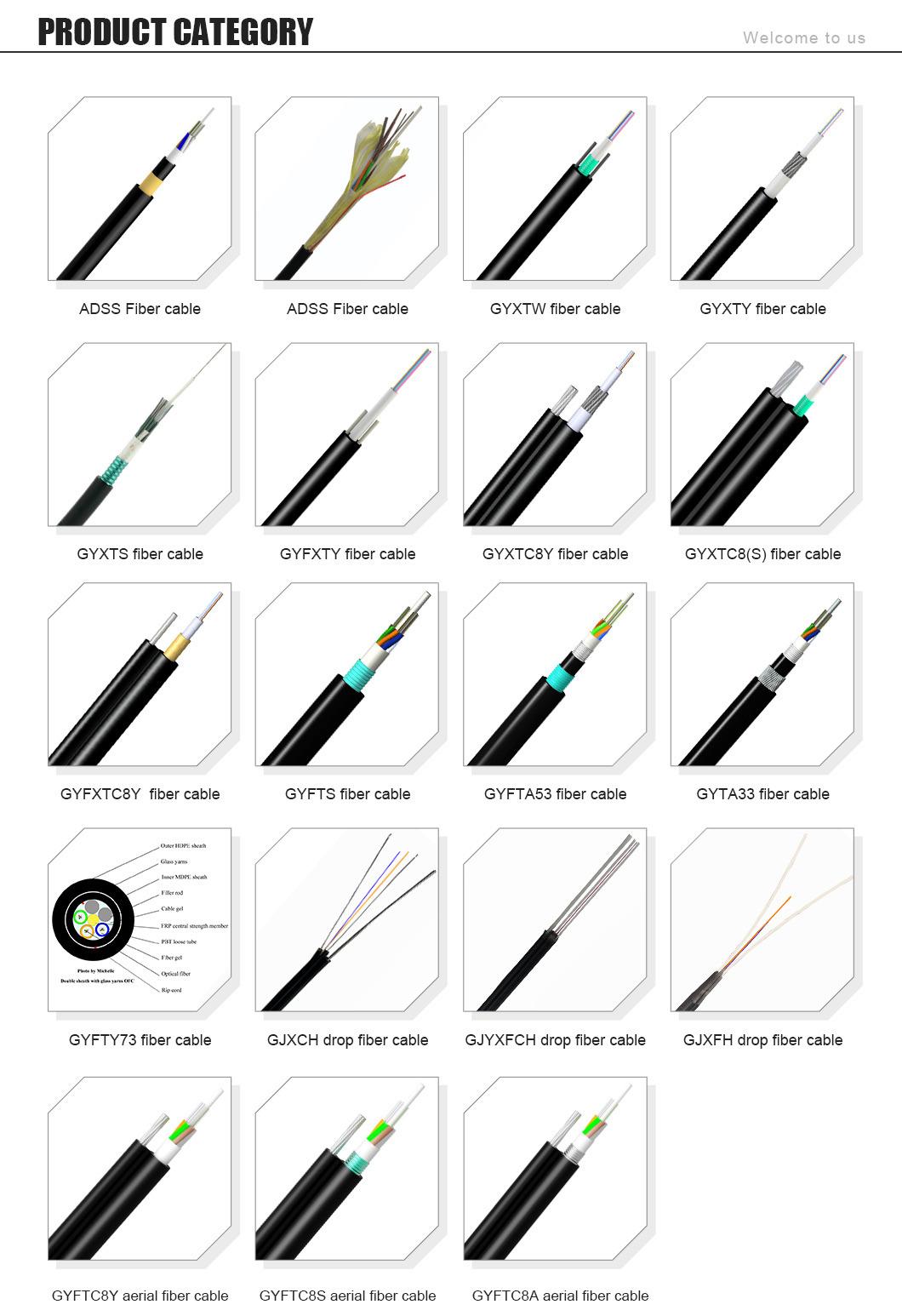

Company Profile
