Indoor Sc/LC/FC/St/E2000/Mu Armoured Fiber Optic Armored Patch Cord
HNK Optic Equipment Co., LIMITED- Application：Communication
- Type：Singlemode or Multimode
- Connection Structure：Sc, St, FC, LC, Mu
- Core：1 ~12 Cores
- Certification：RoHS, UL, CE, ISO9001
- Sheath Material：LSZH, PVC
Base Info
- Model NO.：Armored patch cord
- Connector Type：Sc,LC,FC,St,E2000,Mu
- Fiber Cores：1~12 Cores
- Fiber Type：According to Requirement
- Length：According to Requirement
- Transport Package：PE Bag+Carton
- Specification：RoHS
- Trademark：HNK or OEM
- Origin：Shenzhen, China
- HS Code：90011000
- Production Capacity：100000PCS,Month
Description
≥30D
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: APC-AA-BB-CDFGCL
Ordering Guide
Connector Type Code
Color Code
Ordering Sample
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: APC-AA-BB-CDFGCL
Ordering Guide
| AA | BB | C | D | E | F | G | CL |
| Connector Type | Connector Type | Fiber Type | Fiber Count | Boot fit for cable diameter | Length | Jacket Materia | Jacket Color(CL) |
| FP,SP, SA,LP | FP,SP, SA,LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | SX=Simplex DX=Duplex 4F=4 cores 6F=6 cores 12F=12 cores | 09=0.9mm 16=1.6mm 20=2.0mm 30=3.0mm | 0015 =1.5M 0200 =20M | 1=PVC 2=LSZH 3=PE | As noted in Color code chart |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |

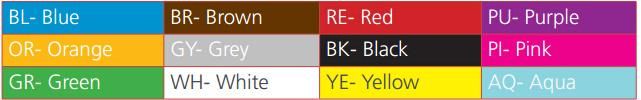

Color Code
Ordering Sample
| Part Number | Description |
| APC-LP-LP-G657A6F01001BL | LC/PC-LC/PC Armoured Fiber Optic Patch Cord, Singlemode G657A, 6 Cores, PVC, Blue,10M. |
