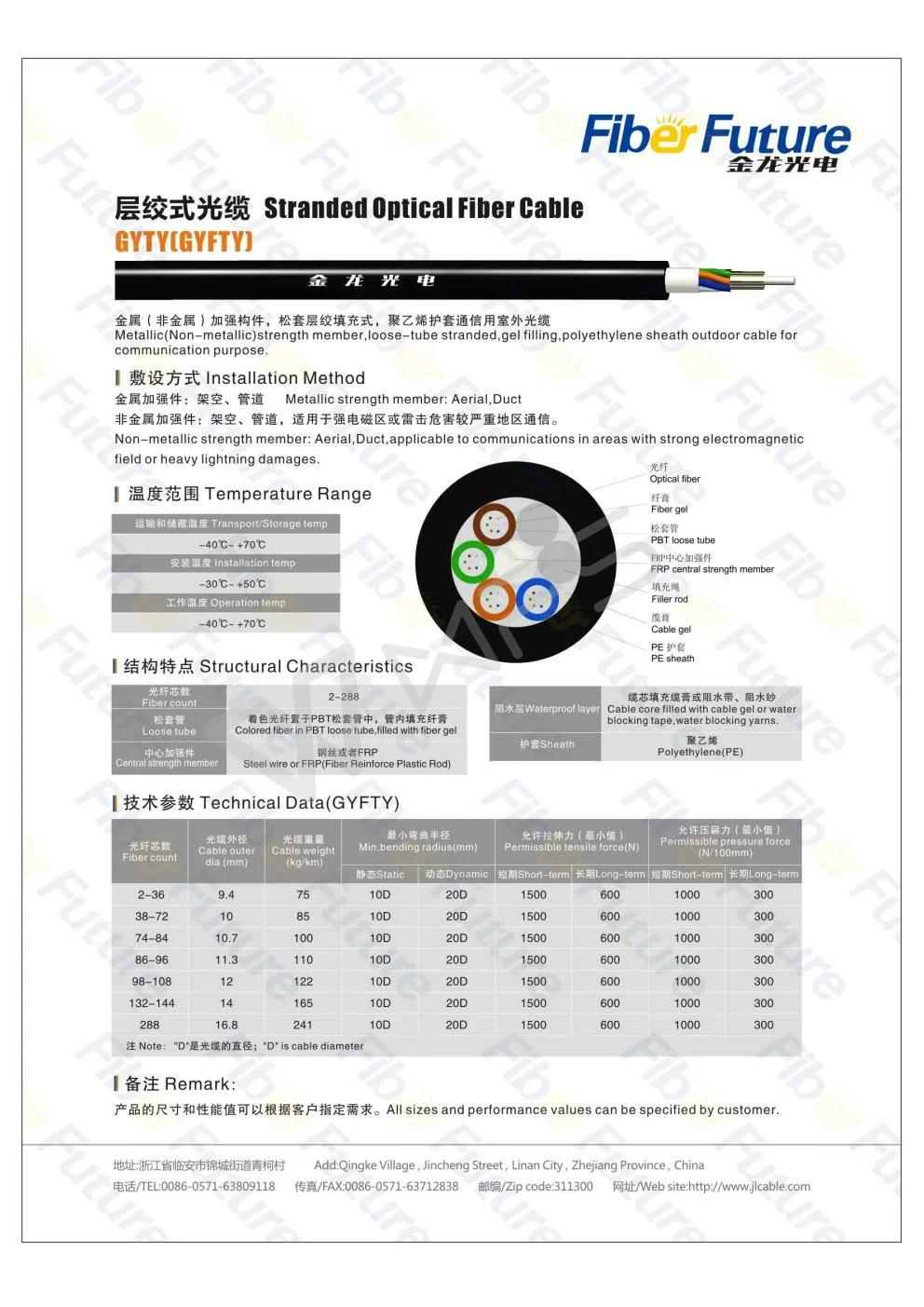

Aerial & Underground GYFTY Single Mode Fiber Optic Cable
Hangzhou Jinlong Optical Cable Co., Ltd.- Application:Communication
- Type:Single-mode Fiber
- Connection Structure:Joint Box
- Material Shape:Round Wire
- Allowed Lateral Pressure:100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength:1000N<10000N
Base Info
- Model NO.:GYFTY
- Core:Multicore
- Certification:CE, ISO9001
- Brand:Jinlong
- Sheath Material:PE,HDPE,Lzsh
- Place of Origin:Zhejiang, China (Mainland)
- Operating Temperature:-40~+60
- Central Strength:FRP
- Model Number:GYFTY
- Water Blacking Material:Water Blocking Tape
- Certificate:ISO9001 and CE
- Outer Jacket:PE
- Optic Fiber Type:Sm or Mm
- Number of Conductors:>10,2 to 288
- Color:Black
- Transport Package:Packed on Fumigated Iron-Wooden
- Specification:CE ISO9001
- Trademark:jinlong
- Origin:China Zhejiang
- HS Code:8544700000
- Production Capacity:500 Kilometer,Kilometers Per Week
Description
Min. bendingMin. tensile Min. crush count dia.(mm) weight(Kg/km) radius(mm) strength(N) pressure(N/100mm) Static state Dynamic Short term Long term Short term Long state term 2-42 11.5 106 120 240 1500 600 1000 300 44-48 11.9 115 120 240 1500 600 1000 300 50-56 11.9 112 120 240 1500 600 1000 300 58-84 12.9 134 130 260 1500 600 1000 300 86-96 13.7 155 140 280 1500 600 1000 300 98-108 14.5 179 150 300 1500 600 1000 300 110-120 15.3 204 160 320 1600 600 1000 300 122-132 16.1 232 170 340 1800 600 1000 300 134-144 16.9 262 170 340 1900 600 1000 300
