LSZH Jacket Self-Supporting Outdoor FTTH Cable 2 Core Optic Fiber Cable FTTH
Ningbo Haishu Efon Communication Equipment Limited- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Other
- Material Shape：Flat Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GJYXFCH
- Core：2-24
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Efon
- Sheath Material：Lszh,PE Sheath,Flame Retardant Sheath,Anti-Rodent
- Cable Structure：Tight Buffer Self-Support FTTH Cable
- Applications：Outdoor Aerial
- Fiber Options：G657A1, G657A2, G652D
- Fiber Count：1-4
- Strength Member：1.0mm Steel Wire or FRP
- Installation Tensile：600n
- Material of Jacket：UV and Flame Resistant LSZH
- Mesenger Member：1.0,1.2 mm or 7*0.33 Steel Wire
- Certifications：ISO9001,Ce,RoHS
- Warranty (Year)：2
- Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
- Specification：CE
- Trademark：OEM
- Origin：China
- HS Code：85447000
- Production Capacity：10000km,Week
Description
Cable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength
(N/100mm)
Crush Resistance
(N/100mm)
1000
500
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
You May Like

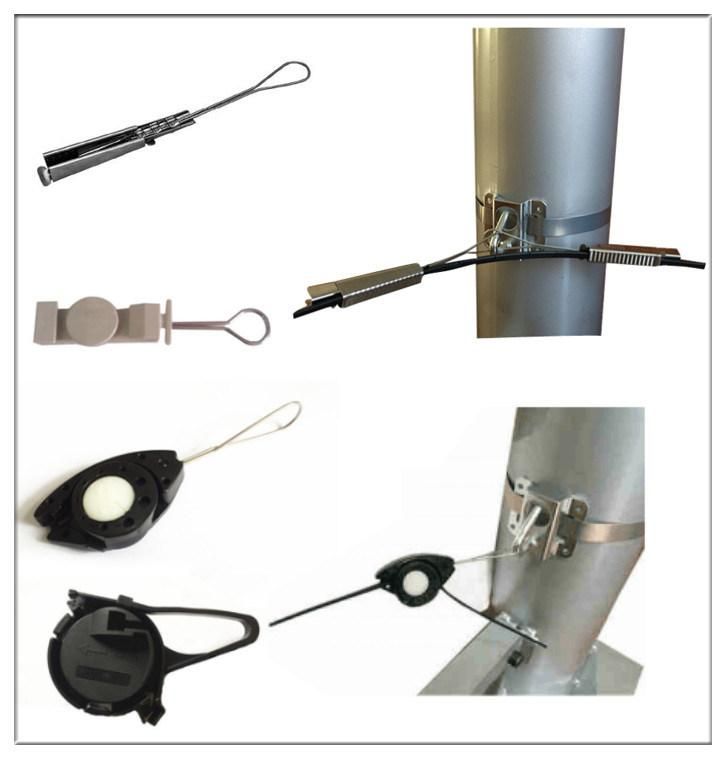

You May Need : Cable Fitting for FTTX Drop Cable
