FTTH Outdoor Optical Fiber Drop Cable LSZH Black Jacket FTTH Cable Manufacturers of Optical Optic Fiber FTTH Drop Cable

TOPNET (SHENZHEN) COMMUNICATION CO.,LTD
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Flat Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：1000N<10000N

Base Info

  • Model NO.：Outdoor drop cable
  • Core：Multicore
  • Certification：RoHS, ISO9001, Anatel
  • Brand：OEM
  • Sheath Material：LSZH
  • Core Number：1 & 2 & 4 & 6 & 8 & 12 Cores
  • Size：2.5*6.0mm & 3.0*7.0mm
  • Fiber Type Sm：G652D, G657A1, G657A2. G657b3
  • Fiber Type mm：Om1, Om2, Om3, Om4, Om5
  • Transport Package：Plywood Drun and Carton
  • Specification：2.0*5.0mm
  • Trademark：OEM
  • Origin：China
  • HS Code：8544700000
  • Production Capacity：5000km Per Week

Description

ItemTechnology parameterCable typeDrop CableCable Count1  2  4  6  8  12Fiber colorBlue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, AquaFiber type9/125 (G657A2)Sheath colorBlack and whiteSheath materialLSZHCable dimension (mm)3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)Cable weight (Kg/km)20Min. bending radius (mm)10 (Static) 25 (Static) 30 (Static) 60 (Static)Attenuation (dB/km)0.4 at 1310nm, 0.3 at 1550nmShort term tensile ( N)200; 600Crush resistance (N/100mm)1000; 2200Operation temperature (ºC)-20~+70AttenuationBandwidthEffective modal bandwidth10 Gb/s Link LengthConditions1310/1550nm850/1300nm850/850nm850nmTypicalMaximumTypicalMaximum1300nmUnitdB/kmdB/kmdB/kmdB/kmMHz.kmMHz.kmmG652D0.5/0.40.6/0.5/////G657A10.5/0.40.6/0.5/////G657A20.4/0.30.5/0.4/////G657B30.5/0.40.6/0.5/////62.5/125//3.5/1.03.5/1.5≥160/500//50/125///3.0/1.03.5/1.5≥200/500//OM150/125///3.0/1.03.5/1.5≥500/500//OM2OM3-150//3.0/1.03.5/1.5≥700/500≥950150OM3-300//2.5/0.83.0/1.0≥1500/500≥2000300OM4-550//2.5/0.83.0/1.0≥3500/500≥4700550

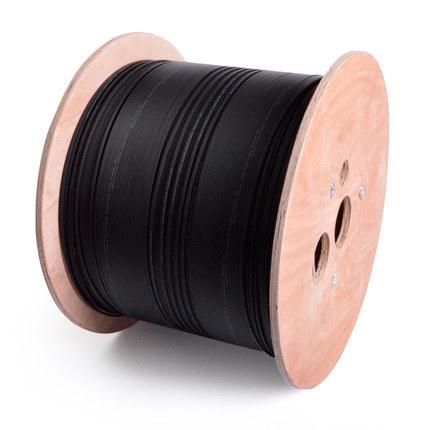

Package
FTTH Outdoor Optical Fiber Drop Cable LSZH Black Jacket FTTH Cable Manufacturers of Optical Optic Fiber FTTH Drop CableFTTH Outdoor Optical Fiber Drop Cable LSZH Black Jacket FTTH Cable Manufacturers of Optical Optic Fiber FTTH Drop CableFTTH Outdoor Optical Fiber Drop Cable LSZH Black Jacket FTTH Cable Manufacturers of Optical Optic Fiber FTTH Drop Cable



FAQ
1. Can I visit you?
-Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

2. How long is your delivery time?
-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. What is your payment terms?
-Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
4. How about the warranty?
-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

5. Can you produce according to the samples?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
