End Glow Plastic Optical Fiber for Decorative Lighting
SICHUAN HUIYUAN PLASTIC OPTICAL FIBER CO., LTD.- Application：Art, Decorative Lighting
- Type：Multi-mode Fiber
- Connection Structure：with Light Engine
- Material Shape：Round Wire
- Core：Single Core
- Certification：RoHS, CE, ISO9001
Base Info
- Model NO.：LF series products
- Brand：Huiyuan
- Sheath Material：No Jacket
- Coil Length：90m--12000m,Roll
- Transport Package：Cartons
- Specification：Bared fiber
- Trademark：HUIYUAN
- Origin：Chengdu, Sichuan, China
- HS Code：900110009
- Production Capacity：10000sets,Month
Description
≤0.25LF2-1000 1.0 1500 LF2-1500 1.5 700 LF2-2000 2.0 350 LF2-2500 2.5 250 LF2-3000 3.0 150
2. Technical Parameters
3. Features
Smooth surface;
Good flexibility;
No ultraviolet or infrared ray transmitted;
Non-conducting, no heat transfer;
Strong end light effect.
4. Applications

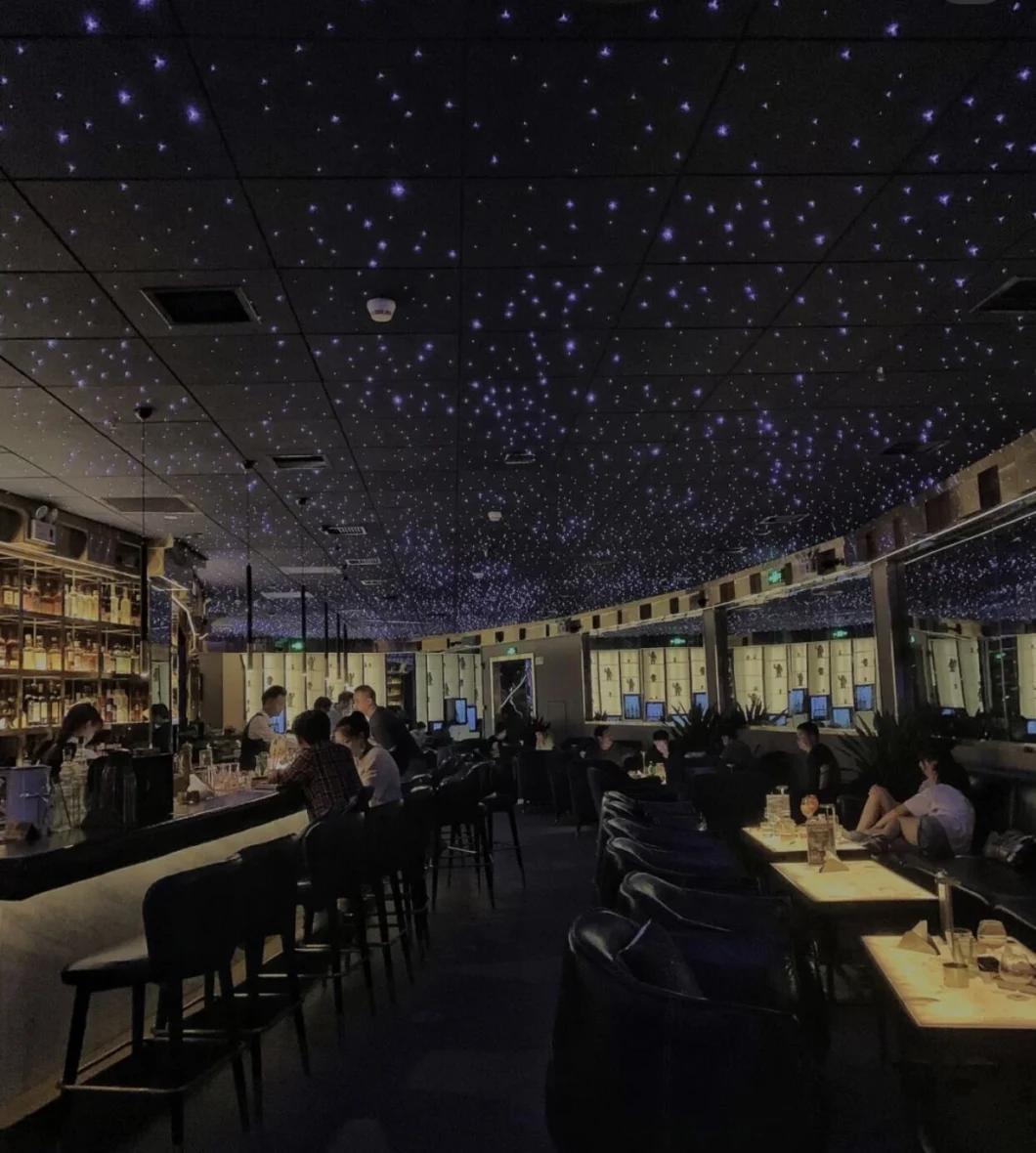

Usually used with LED light engines, LF series end glow fibers are well used for star ceiling, fiber optic 3-D mirror, fiber optic chandelier, optical fiber logos and so on.

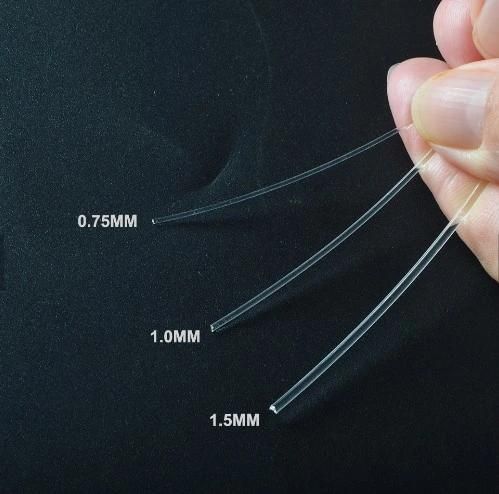

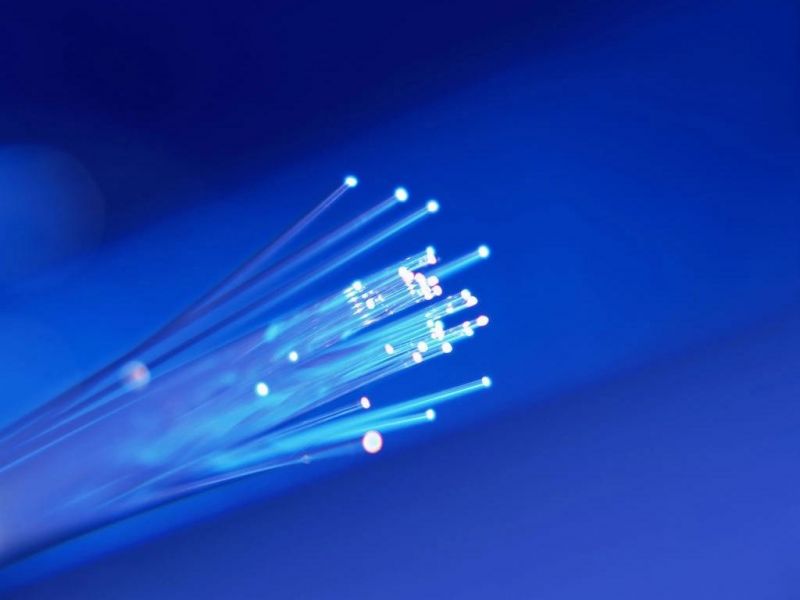

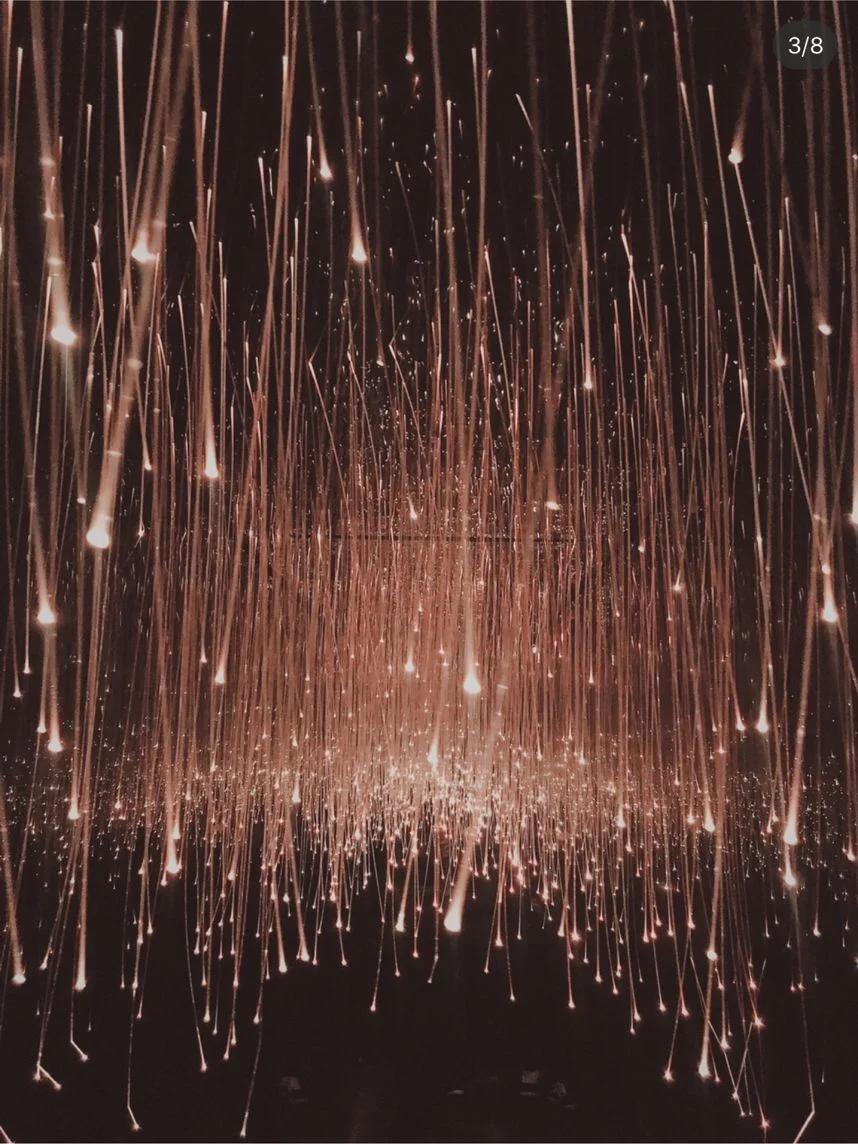

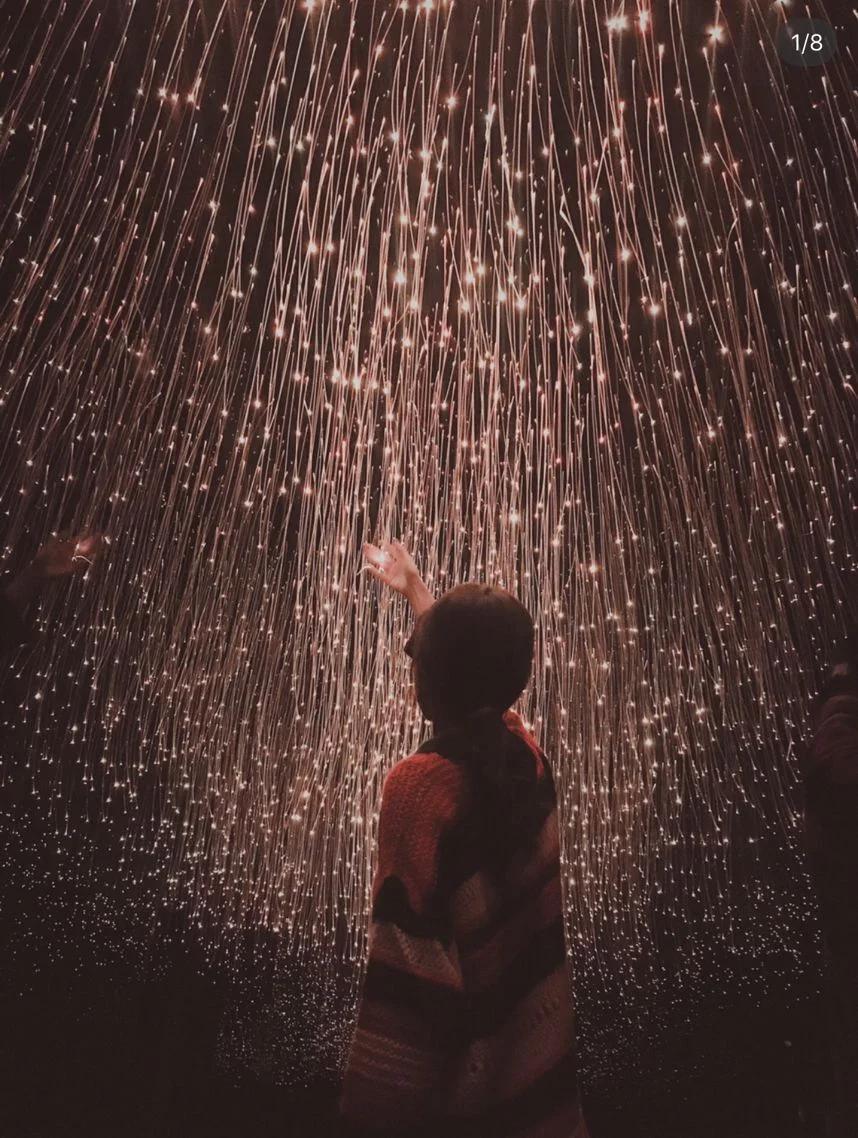

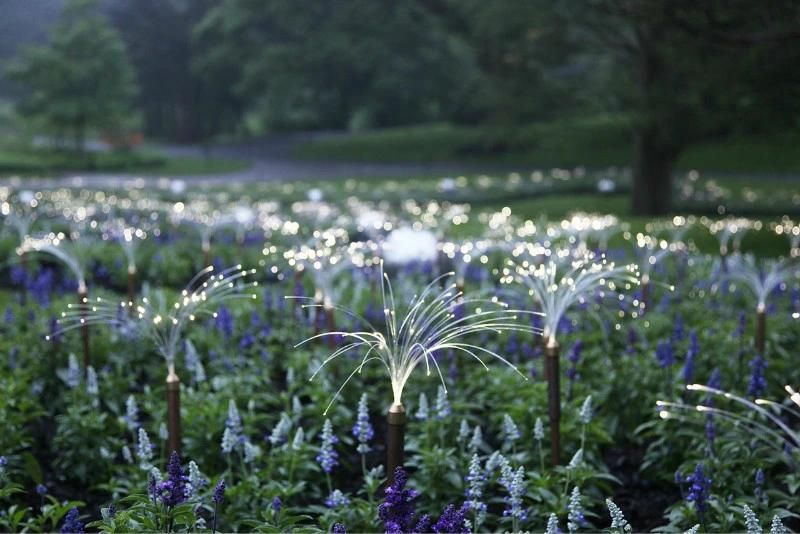

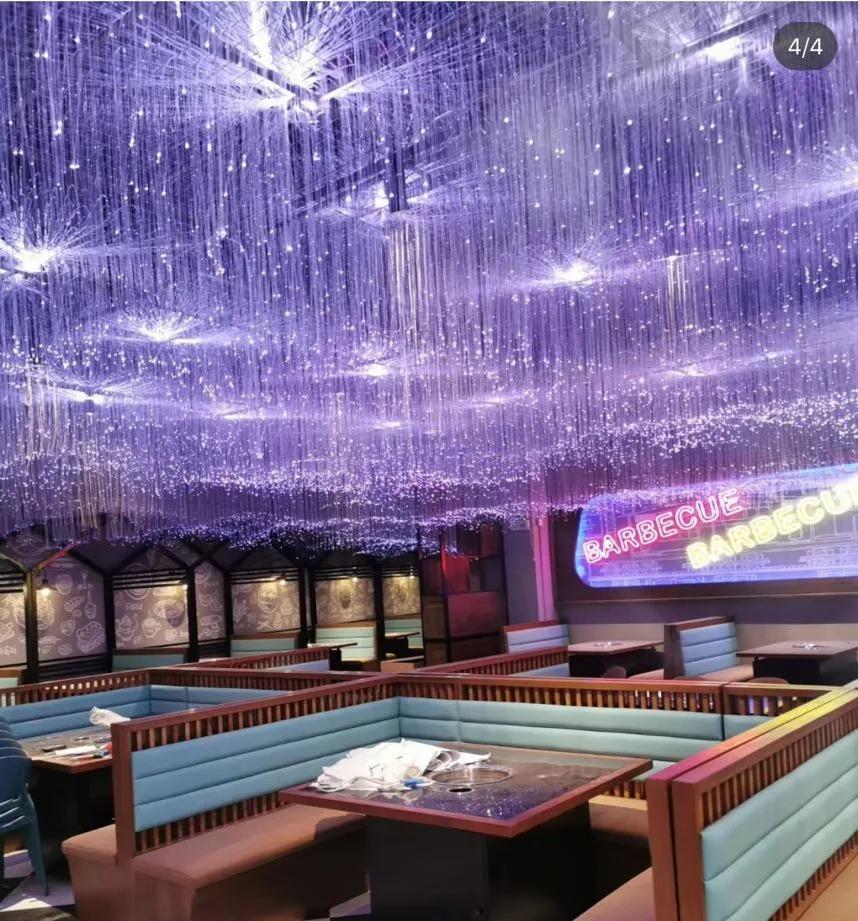

5. Product and Application Pictures
6.Huiyuan History
2000- Set up to make breakthroughs in industrialization development of the low-loss PMMA plastic optical fiber technology. Set up to make breakthroughs in industrialization development of the low-loss PMMA plastic optical fiber technology.
2003- First mass production of low-loss PMMA plastic optical fiber,breaking themonopoly of foreign companies andilling the gaps in the domestic indusry.
2004- Authorized the Ministry of Information Industry to firmulate National Communication Industry Standards in Platic Optical Fiber for communication(YD/T 1447-2006)
2006- Develped plastic optical fibers with attenuation lower than 0.2db/m,which reached international technicalstandards and succeeded in the project assessment of Ministry of Science and technology.
2007- Passed ISO9001 ubternational quality crtification.
2009- Approved by National Development and Reform Commission, the only POF Engineering Laboratory of China, the POF Production and Application of the National and Local Engineering Laboratory was fficallyl set up.
2013- Authorized by the Ministry of Industry and Information Technology (MIT), Huiyuan revised the National Communication Industry Standard (YD/T1447-2013) of Plastic Optical Fiber for Communication.
2014- The Chengdu Academicians (Experts) Innovation Workstation was instituted in Huiyuan.
2015-Approved by Standardization Administration of China, Huiyuan formulated several standards of the national power industry. They are: "Technical Specification of POF in Electric Power Information Transmission System,
Part I: Technical Requirements" GB/T 31990.1-2015, Technical Specification of POF in Electric Power Information Transmission System, Part II Optical Transceivers" GB/T31990.3-2015, " Technical Specification of POF in Electric Power Information Transmission System, Part IV: POF Cable.
2016- The project of Huiyuan' s 650nm Optical Transceivers was identified with Sichuan Scientific and Technological Achievements Certificate of Registration.

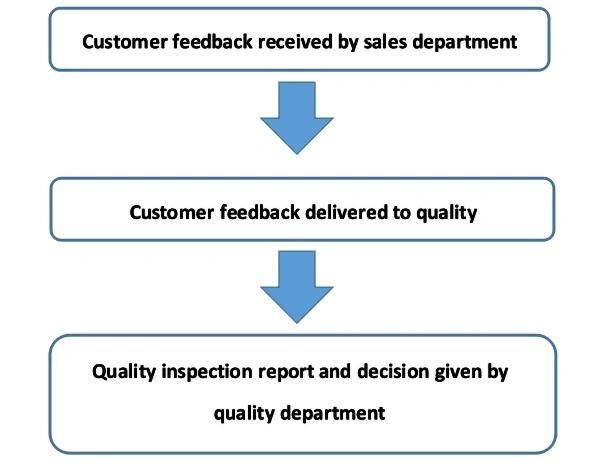

7. After-Sales Service
8.Scientific&Techological Achievements
9.Q&A
1).Are you trading company or manufacturer?
We are factory. Huiyuan Plastic Optical Fiber Co, Ltd is a subsidiary company of Huiyuan Group and was established in 2005 with CNY 20 million registered capital. In 2009, approved by the NDRC (national development and reform commission), the only national and local joint engineering laboratory of POF production and application was instituted in Huiyuan. And the Chengdu academicians (experts) innovation workstation was also established here in 2014. Over 11 years, we are continuously setting up national standards of communication pof. So far, we have more than 30 patents, including over 10 patents for invention. As the pioneer and standard-setter of plastic optical fiber industry in china, Our fibers&cables enjoy a good reputation in the fields of illumination, communication, industry control and other fields.
2).What's your Leadtime&package?
Leadtime: According to order quantity. Normally delivery date is within 10 working days
Packaging: Plastic Bag, Carton and Pallet are available according to your request.
3).How do you shipping the goods?
DHL/UPS/FEDEX/TNT usually is 5-8 working days. Would keep tracking shipping status and reporting to client.
By Sea/Air/Tail, could use client's pointed forwarder or our cooperated one.
4).Where is your location ? How can I visit there ?
Our factory is located in No.61 Chongyang Avenue, Chongzhou Industrial Development Zone, Chengdu City, Sichuan Province, China.
We warmly welcome you to book a factory tour to visit us in your free time.
2. Technical Parameters
| Item | Parameters |
| Fiber core material | Polymethyl Methacrylate(PMMA) |
| Cladding material | Fluroresin |
| Refractive Index Type | Step Index |
| Numerical Aperture | 0.5 |
| Tensile Strength | ≥350 N |
| Yield Elongation | ≥4% |
| Minimum Bending Radius | ≥ 10 times of fiber diameter |
| Storage and operating temperature | -55ºC~+70ºC |
| Recommended operating temperature | -40ºC~+70ºC |
| Installation temperature | -20ºC~+70ºC |
3. Features
Smooth surface;
Good flexibility;
No ultraviolet or infrared ray transmitted;
Non-conducting, no heat transfer;
Strong end light effect.
4. Applications
Usually used with LED light engines, LF series end glow fibers are well used for star ceiling, fiber optic 3-D mirror, fiber optic chandelier, optical fiber logos and so on.
5. Product and Application Pictures
6.Huiyuan History
2000- Set up to make breakthroughs in industrialization development of the low-loss PMMA plastic optical fiber technology. Set up to make breakthroughs in industrialization development of the low-loss PMMA plastic optical fiber technology.
2003- First mass production of low-loss PMMA plastic optical fiber,breaking themonopoly of foreign companies andilling the gaps in the domestic indusry.
2004- Authorized the Ministry of Information Industry to firmulate National Communication Industry Standards in Platic Optical Fiber for communication(YD/T 1447-2006)
2006- Develped plastic optical fibers with attenuation lower than 0.2db/m,which reached international technicalstandards and succeeded in the project assessment of Ministry of Science and technology.
2007- Passed ISO9001 ubternational quality crtification.
2009- Approved by National Development and Reform Commission, the only POF Engineering Laboratory of China, the POF Production and Application of the National and Local Engineering Laboratory was fficallyl set up.
2013- Authorized by the Ministry of Industry and Information Technology (MIT), Huiyuan revised the National Communication Industry Standard (YD/T1447-2013) of Plastic Optical Fiber for Communication.
2014- The Chengdu Academicians (Experts) Innovation Workstation was instituted in Huiyuan.
2015-Approved by Standardization Administration of China, Huiyuan formulated several standards of the national power industry. They are: "Technical Specification of POF in Electric Power Information Transmission System,
Part I: Technical Requirements" GB/T 31990.1-2015, Technical Specification of POF in Electric Power Information Transmission System, Part II Optical Transceivers" GB/T31990.3-2015, " Technical Specification of POF in Electric Power Information Transmission System, Part IV: POF Cable.
2016- The project of Huiyuan' s 650nm Optical Transceivers was identified with Sichuan Scientific and Technological Achievements Certificate of Registration.
7. After-Sales Service
8.Scientific&Techological Achievements
9.Q&A
1).Are you trading company or manufacturer?
We are factory. Huiyuan Plastic Optical Fiber Co, Ltd is a subsidiary company of Huiyuan Group and was established in 2005 with CNY 20 million registered capital. In 2009, approved by the NDRC (national development and reform commission), the only national and local joint engineering laboratory of POF production and application was instituted in Huiyuan. And the Chengdu academicians (experts) innovation workstation was also established here in 2014. Over 11 years, we are continuously setting up national standards of communication pof. So far, we have more than 30 patents, including over 10 patents for invention. As the pioneer and standard-setter of plastic optical fiber industry in china, Our fibers&cables enjoy a good reputation in the fields of illumination, communication, industry control and other fields.
2).What's your Leadtime&package?
Leadtime: According to order quantity. Normally delivery date is within 10 working days
Packaging: Plastic Bag, Carton and Pallet are available according to your request.
3).How do you shipping the goods?
DHL/UPS/FEDEX/TNT usually is 5-8 working days. Would keep tracking shipping status and reporting to client.
By Sea/Air/Tail, could use client's pointed forwarder or our cooperated one.
4).Where is your location ? How can I visit there ?
Our factory is located in No.61 Chongyang Avenue, Chongzhou Industrial Development Zone, Chengdu City, Sichuan Province, China.
We warmly welcome you to book a factory tour to visit us in your free time.
