• Model NO.：H05RN-F H07RN-F Rubber Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：H05rn-F H07rn-F Rubber Cable
• Brand：Chang Qing Teng
• Number of Cores：Single,2,3,4,5,6,7,8,10,16 Core...
• Cross Section Area/Measure：3.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300,4
• Standard：IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502
• Conductor：Stranded,Solid,Flexible Copper,Aluminum Conducto
• Insulation：XLPE,PVC,PE,PUR
• Aplication：Electric, House Wire, Building Wire...
• Shield：Copper Wire Screen(Cws), Aluminium Wire Screen (a
• Armoured：Steel Tape Armoured (Sta) or Steel Wire Armoured
• Transport Package：Non-Fumigation Wooden Drum, Iron-Wooden Drum.
• Specification：350x160x270,800x350x550,1000x500x600,1200x500x900.
• Trademark：Luxing
• Origin：Shandong
• HS Code：8544492100
• Production Capacity：500000meters,Year

Basic Info.

Model NO. H05RN-F H07RN-F Rubber Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model H05rn-F H07rn-F Rubber Cable Brand Chang Qing Teng Number of Cores Single/2/3/4/5/6/7/8/10/16 Core... Cross Section Area/Measure 3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4 Standard IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502 Conductor Stranded/Solid/Flexible Copper/Aluminum Conducto Insulation XLPE/PVC/PE/PUR Aplication Electric, House Wire, Building Wire... Shield Copper Wire Screen(Cws), Aluminium Wire Screen (a Armoured Steel Tape Armoured (Sta) or Steel Wire Armoured Transport Package Non-Fumigation Wooden Drum, Iron-Wooden Drum. Specification 350x160x270,800x350x550,1000x500x600,1200x500x900. Trademark Luxing Origin Shandong HS Code 8544492100 Production Capacity 500000meters/Year

Product Description

1.H05RN-F H07RN-F Rubber Cable

This cable is primarily used in all kinds of electrical equipment, such as the mobile power of household appliances, electric machinery,
electrical equipment and tools, and it is also can be used in indoor or outdoor enviroment conditions.

Conductor: Stranded bare or tinned soft copper wire

Insulation: EPR (Ethylene-Propylene Rubber)

Sheath: Neoprene (Chloroprene rubber)


2.Specification And Working Condition:

1)The rated voltage for YQ type is 300/300 V, YZ/YZW type(H05RN-F) is 300/500V,YC/YCW type(H07RN-F) is  450/750V.

2)The long-term working temperature allowed by conductor should be not more than 60 ° C.

3)W-type cable with climate resistance and oil resistance, suitable for outdoors or in contact with oil occasions.

4)ZR type cable has flame retardant properties, can be used for fire-retardant occasions.

Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245 IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent  synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent  synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
60245    IEC 82(YHF)	polychloroprene or other  equivalent synthetic  elastomer sheathed arc-welding electrode cable	100/100V	10-120

3.Advantages Of H07RN-F:

The H07RN-F cable is used at medium mechanical stress in dry, wet and damp locations, as well in free air.
Also for fixed installation on plaster or machines. The cable is resistant to oil, UV-radiation and ozone.

Flexible
The H07RN-F is a flexible cable, ideal for mobile use.
This means that the cable can be used several times and can be applied for temporary purposes.
In addition, it is easy to handle and pliant making it easy and compact to store.
Its flexibility is also an advantage for small-spaced fixed installations as smaller bends can be made. Due to the flexibility of the cable,
it is easier and faster to install, which saves more time and reduces costs.

Oil Resistant
The H07RN-F is oil resistant which means the cable can withstand aggressive oil containing substances.
These substances will not affect the cable, the functionality of the cable will be maintained and the risk of irreparable damage is lower.

UV Resistant
Cables that are not UV resistant will be affected when they are exposed to direct sunlight.
The H07RN-F is UV resistant and can therefore be used above ground in the open air.
The outer sheath of the cable will not be harmed by the ultra-violet light which normally dries out a cable or causes cracks or bursts in the sheath.
This will preserve the functionality of the cable.

Flame Retardant
Cables used to be responsible for spreading fire. The H07RN-F is flame retardant.
This means that this cable is designed in a way that it will not spread fire.
Cables with these advantages are often used in buildings and at locations where people live, work and travel / move.

4.Why buy cables from luxing cable factory?

1) Reliable material;
-Each raw material into the plant, must undergo a rigorous selection and testing,
-To ensure that the best material to you.

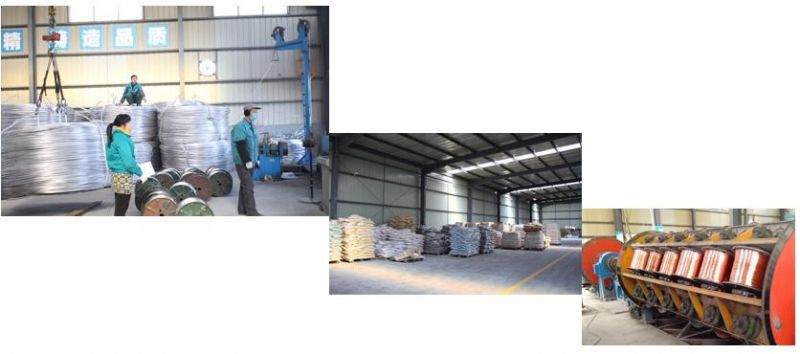

2) Strict production;
-24 production processes, 24 detection processes,
-Each of the strict control procedures to ensure cable safety.

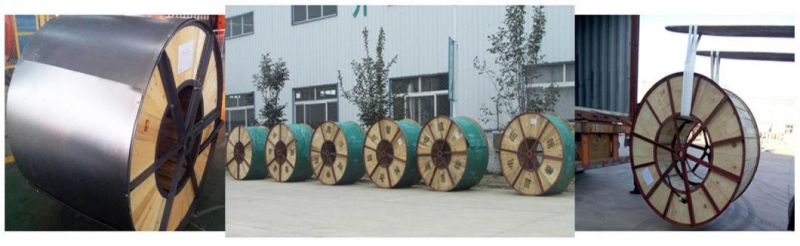

3) Safe packaging ;
-Using wood fumigation plate, plus metal packaging,
-reliable transport so that cable safely arrived at your site.
