600V UL83 Certificated Electric 4/6/8/10/12/14 AWG Gauge Thhn Thwn-2 Cable Building Wire
Hebei Huatong Wires & Cables Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Household, Building
- Conductor Material：Copper
- Sheath Material：Nylon
- Insulation Material：PVC
Base Info
- Model NO.：THHN Cable Wire
- Material Shape：Round or Sector
- Range of Application：Flame Retardant
- Certification：ISO9001, UL, RoHS
- Brand：Rneda
- Product Name：Thhn Wire
- Conductor：Copper or Aluminum
- Voltage：600V
- Insulated Material：PVC
- Sheathed Material：Nylon
- Certificate：UL
- Standard：UL83
- Core：Single
- Cross Section：14AWG 12AWG 10AWG 8AWG 6AWG
- Sample：Free

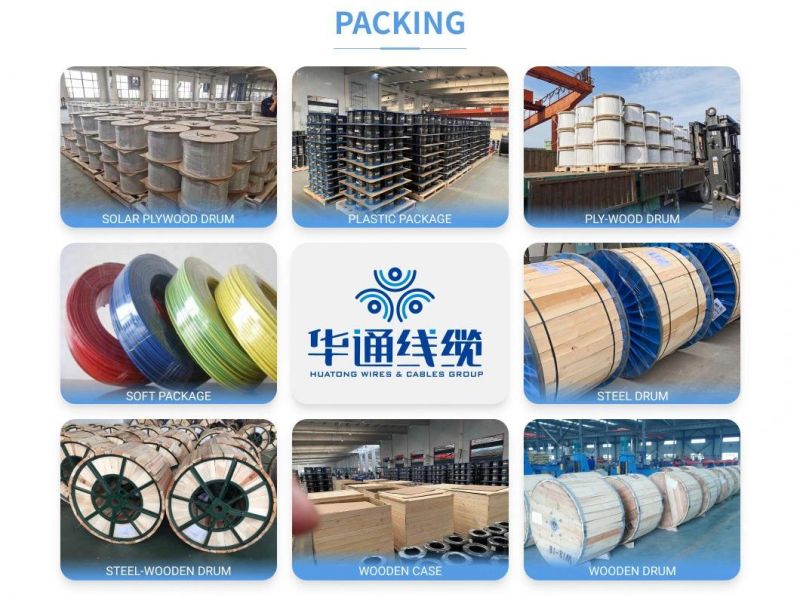

- Transport Package：Soft Packing
- Specification：14AWG-750MCM
- Trademark：RNEDA
- Origin：Hebei, China
- HS Code：85444921
- Production Capacity：500km Per Month
Description
NOMINAL INSULATION
THICKNESS INCH/MMNOMINAL JACKET
THICKNESS INCH/MM NOMINAL OVERALL
DIAMETER INCH/MM CABLE WEIGHT
LBS/KFT KG/KM 14 1 0.015 0.38 0.004 0.10 0.11 2.79 15 22 12 1 0.015 0.38 0.004 0.10 0.12 3.05 23 34 10 1 0.020 0.51 0.004 0.10 0.15 3.81 37 54 14 19 0.015 0.38 0.004 0.10 0.11 2.79 16 24 12 19 0.015 0.38 0.004 0.10 0.13 3.30 24 36 10 19 0.020 0.51 0.004 0.10 0.17 4.32 39 58 8 19 0.030 0.76 0.005 0.13 0.22 5.59 63 94 6 19 0.030 0.76 0.005 0.13 0.26 6.60 98 145 4 19 0.040 1.01 0.006 0.15 0.33 8.38 157 234 3 19 0.040 1.01 0.006 0.15 0.36 9.14 193 287 2 19 0.040 1.01 0.006 0.15 0.39 9.91 240 357 1 19 0.050 1.27 0.007 0.18 0.43 10.92 300 446 1/0 19 0.050 1.27 0.007 0.18 0.47 11.94 376 560 2/0 19 0.050 1.27 0.007 0.18 0.52 13.21 467 695 3/0 19 0.050 1.27 0.007 0.18 0.57 14.48 581 864 4/0 19 0.050 1.27 0.007 0.18 0.64 16.26 724 1077 250 37 0.060 1.52 0.008 0.20 0.69 17.53 855 1272 300 37 0.060 1.52 0.008 0.20 0.76 19.30 1022 1521 350 37 0.060 1.52 0.008 0.20 0.79 20.07 1191 1772 400 37 0.060 1.52 0.008 0.20 0.85 21.59 1345 2001 500 37 0.060 1.52 0.008 0.20 0.94 23.88 1668 2482 600 61 0.070 1.78 0.009 0.23 1.10 27.94 1994 2967 750 61 0.070 1.78 0.009 0.23 1.16 29.46 2465 3668
THICKNESS INCH/MM
THICKNESS INCH/MM
DIAMETER INCH/MM
LBS/KFT KG/KM
