Speaker Cable Bulk Guitar Cable Microphone Cable Instrument Audio XLR Cable DMX Cable Transparent Electric Wire Guitar Patch Cable 3 5 Pin Neutrik D-SUB 512
Shanghai Bluewin Wire & Cable Co., Ltd.- Application：Speaker, Monitor, Microphone
- Color：Black
- Type：Twisted Pair
- Species：AV
- Connector：W,O
- Material Shape：Round Wire
Base Info
- Model NO.：BW-AC
- Wire Core Material：Bare Copper Wire
- Certification：RoHS, CE, ISO9001
- Brand：Bluewin & OEM
- Insulation：PE
- Sheath：PVC
- Overall Diameter：6.0mm
- Transport Package：100m,Reel or as Request
- Specification：22AWG,24AWG
- Trademark：Bluewin
- Origin：Shanghai, China
- HS Code：8544492100
- Production Capacity：1000km,Week
Description
Basic Info.
Model NO. BW-AC Wire Core Material Bare Copper Wire Certification RoHS, CE, ISO9001 Brand Bluewin & OEM Insulation PE Sheath PVC Overall Diameter 6.0mm Transport Package 100m/Reel or as Request Specification 22AWG/24AWG Trademark Bluewin Origin Shanghai, China HS Code 8544492100 Production Capacity 1000km/WeekProduct Description
High quality flexible Microphone Cable
Application:
Interior wiring of mixing consoles, racks, and other audiocomponents
Flexible cable for clip-on microphones, earphones, speaker units, etc.
Assembly of adapter cable
Specification:
Color: Black
Overall diameter: 6.0mm
Conductor: 28/0.10OFC, 24AWG/0.22mm2
Insulation: PE
Screen Material: Al-foil+BD 84/0.10OTinned Copper
Overall Jacket: PVC
Conductor resistance: 80 ohm/1km
Capacity: < 90pf/m
SPEAKER CABLE
DMX 512 BELDEN 3107ENH
D-SUB 512 CABLE
DB25 to 8 x XLR female
Order Code

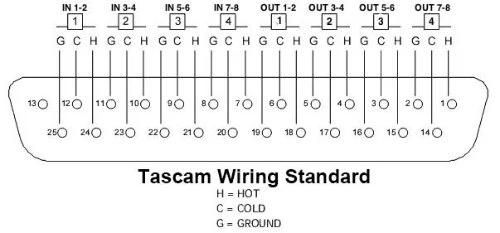

BSD2-T (T for Tascam wiring)

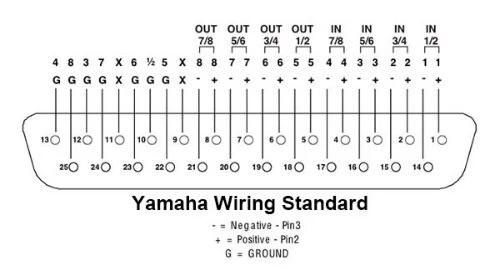

BSD2-Y (Y for Yamaha wiring)
Cable Length: 2M,3M,5M,10M

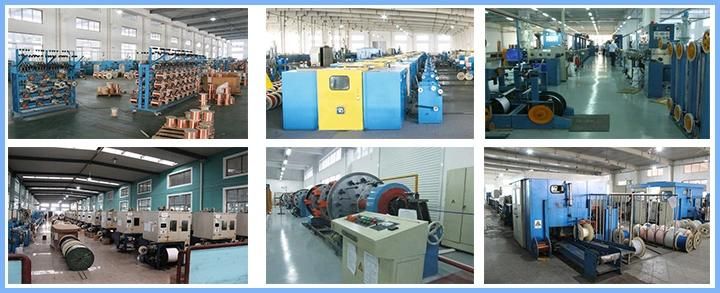

PRODUCTION LINE
PACKAGE
