• Model NO.：LLT-Alarm210
• Material Shape：Round Wire
• Range of Application：Cabling Systems
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Llt
• Sheath Colour：Red, White, Optional
• Packing：100 Meter,Coil or Customized
• Size：0.2mm,Optional
• Rated Voltage：300V
• Rated Temperature：-10ºC-+70ºC
• Transport Package：Wooden Reel
• Specification：2 core, 4 core, 6 core, 8 core or optional
• Trademark：LLT
• Origin：China
• HS Code：8544492100
• Production Capacity：400, 000 Meter Per Day

Basic Info.

Model NO. LLT-Alarm210 Material Shape Round Wire Range of Application Cabling Systems Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Llt Sheath Colour Red, White, Optional Packing 100 Meter/Coil or Customized Size 0.2mm,Optional Rated Voltage 300V Rated Temperature -10ºC-+70ºC Transport Package Wooden Reel Specification 2 core, 4 core, 6 core, 8 core or optional Trademark LLT Origin China HS Code 8544492100 Production Capacity 400, 000 Meter Per Day

Product Description

Production Description

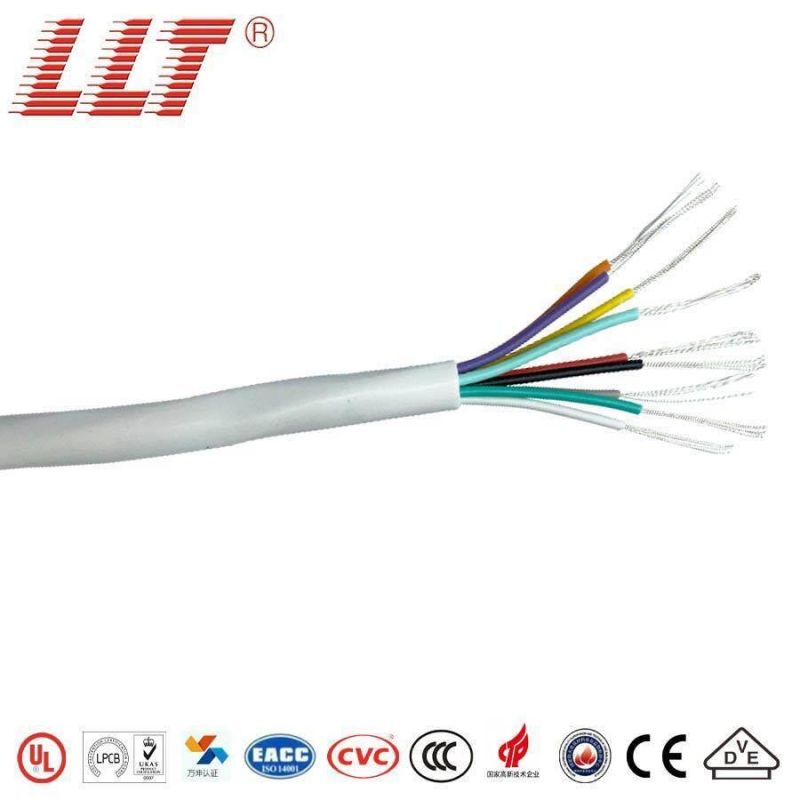

LLT Security Alarm cable Specifications


conductor type: TCCA or BC or TC
conductor size:0.2mm or optional
core count:2 core,4 core,optional
Insulation: PVC
Sheath: PVC
Sheath Colour: White or optional

Screened Cable:
Has the same cores as the standard cable but Sheathed with an aluminium foil screen and has an earth drain wire, to reduce potential RF interference which may cause false alarms.

Conductor Identification:
4 Cores: Red, Blue, Yellow, Black,
6 Cores: Red, Blue, Yellow, Black, Green, White
8 Cores: Green, Yellow, White, Black, Blue, Red, Orange,Brown
more core according to customer requirement.

Product features and application:
Good flexibility combined with robustness and a strong nylon stripping cord.
Security systems and home automation systems which have built-in approved security
controllers.However,itdoesn't make any difference which type of system one is installing,alarm wiring
will always be an integral part of an over all installation.Stranded sation wire is suitable for alarm security
systems and other low voltage electrical hook up applications.Use it to connect door and window
sensors,motion detectors,keypads as well as other hard wired accessories to your alarm panels.Comes
in a secure and dispensable packaging for easy handling and use.

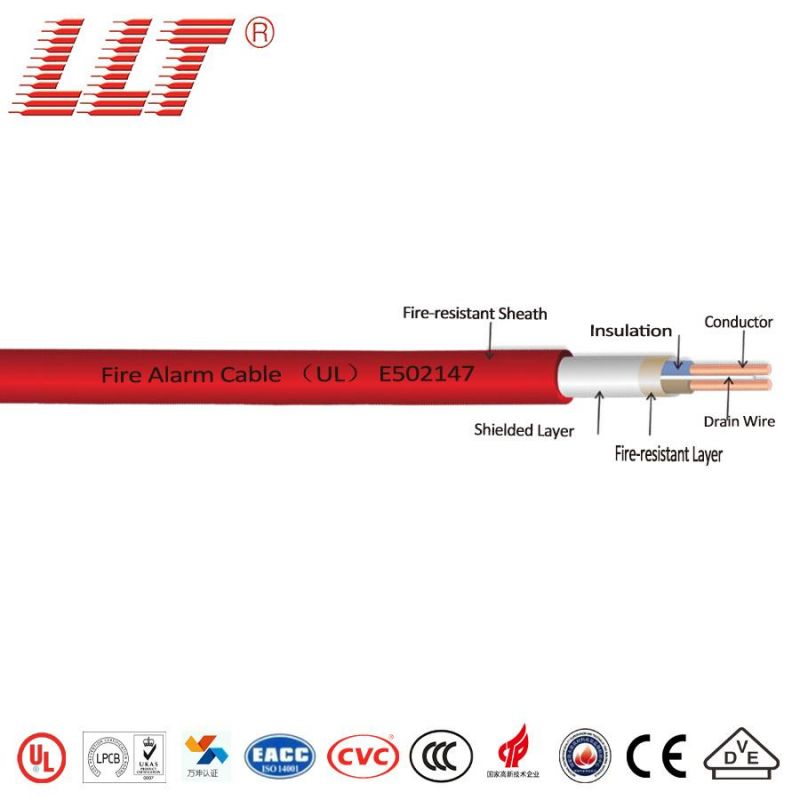

 LLT UL listed fire alarm cable





 Production Feacture

LLT shielded/unshilded fire alarm cable power limited fire alarm cable describes one pair (2 Cores). The maximum operating voltage is 300/300V, the flame retardant is in according with UL 1685, UL 1666.

ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits

UL 1685 Type FPL, UL 1666 Type FPLR

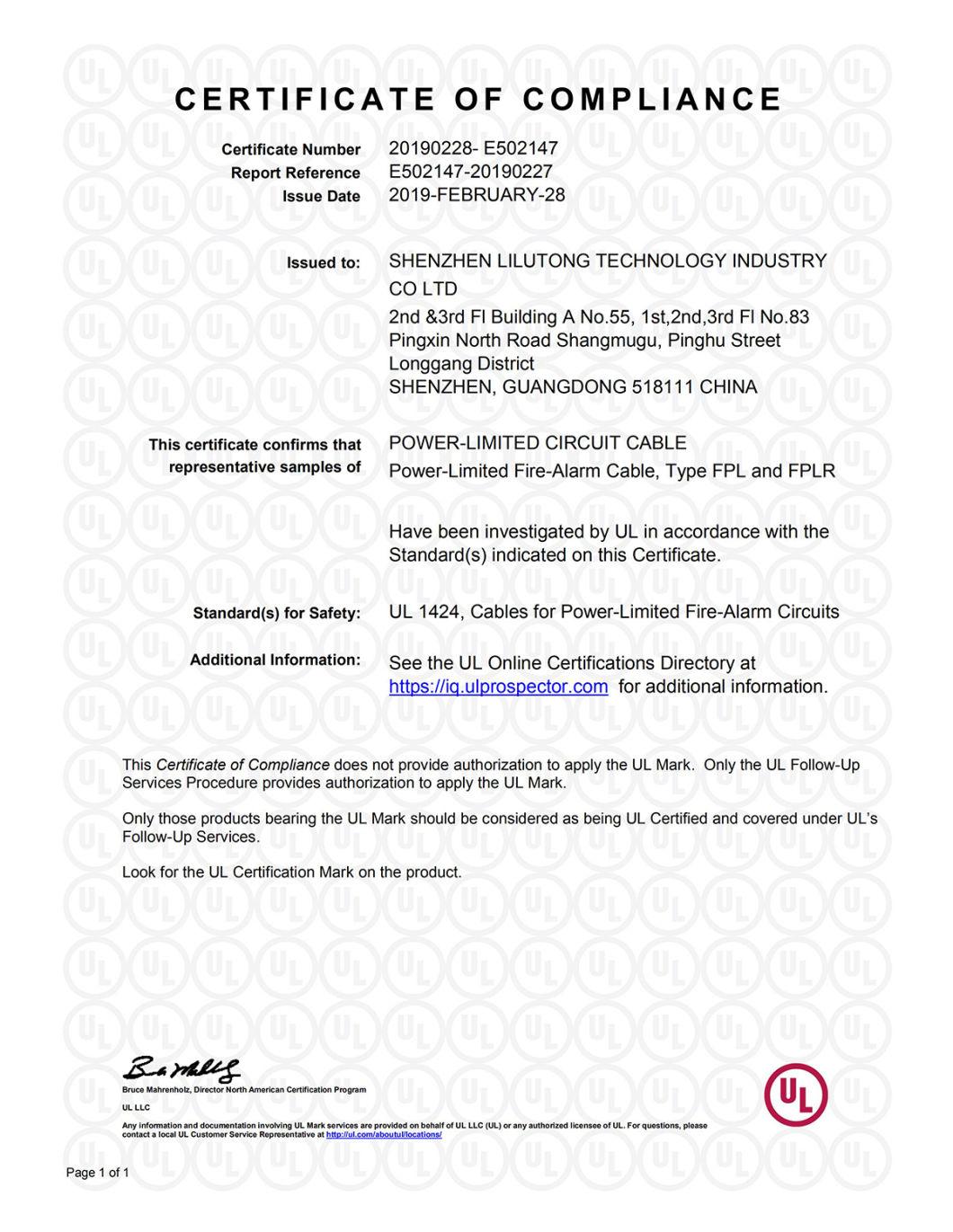

UL Listed File No. E502147

RoHS Compliance

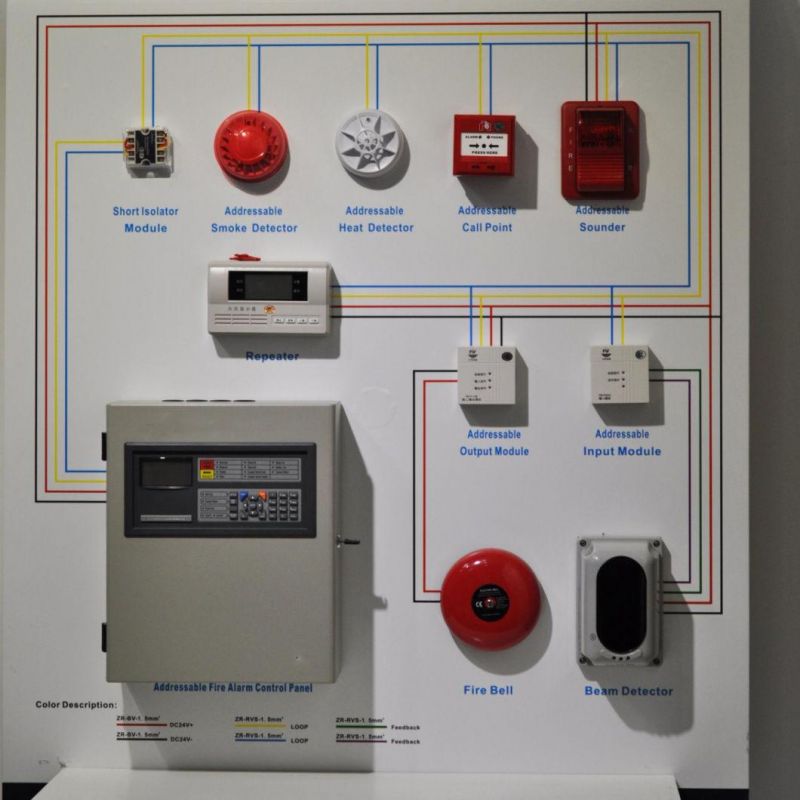

Application


1.Fire Alarm System

2.Sprinkler System

3.Smoke Detector

4. Critical Central Fire Systems

5. Signalling System

6. Manual Call Point

7. Foam System

Certifications


Packing & Delivery

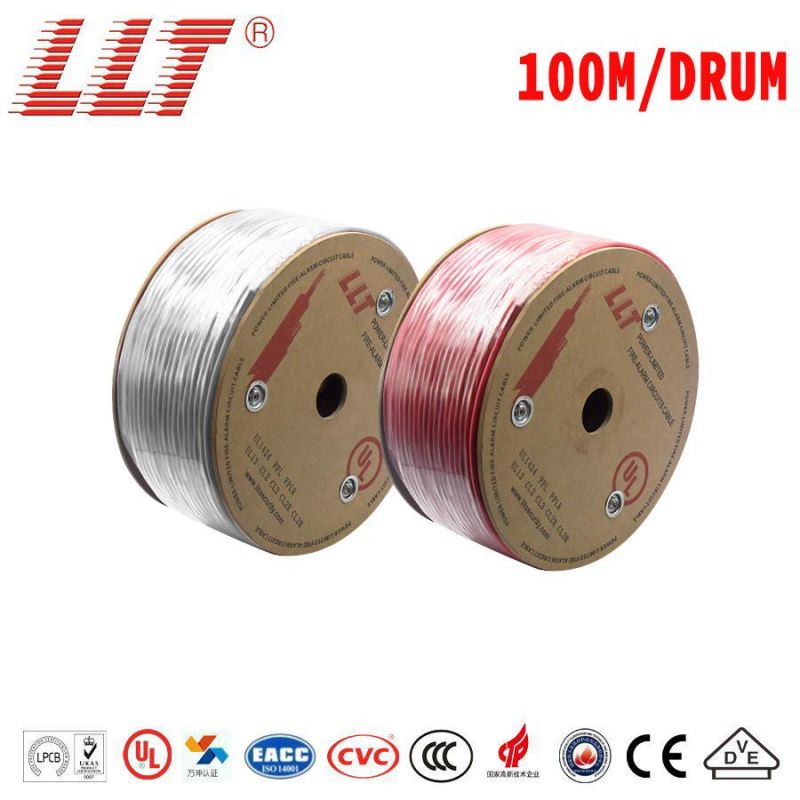

***100 Meter/Coil, 100 Meter/Paper reel, 100 Meter/plastic reel, 500 Meter/Wooden drum, Carton & Pallet


Company Profile

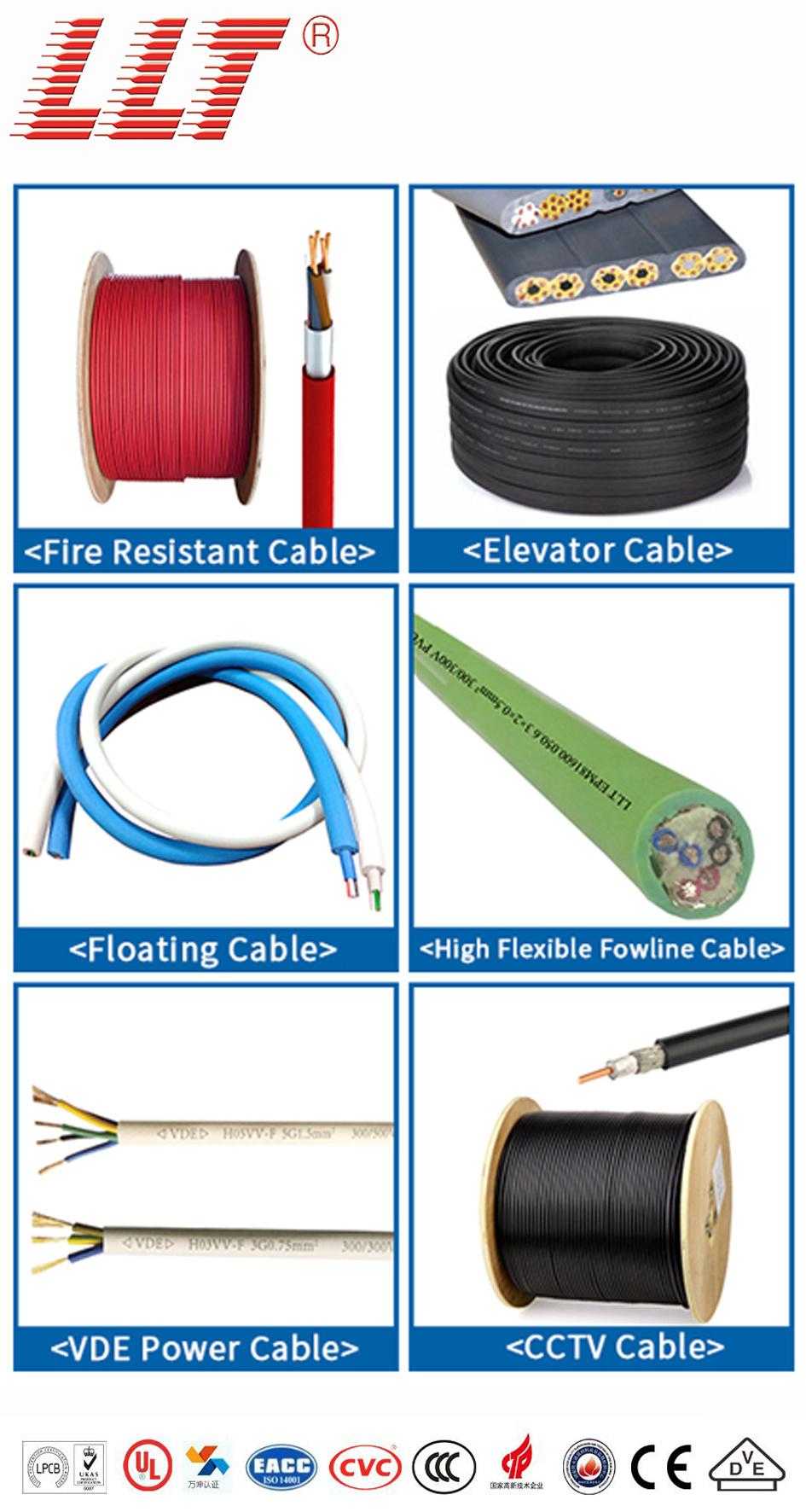

Shenzhen Lilutong Technology Industry Co.,LTD is a professional manufacturer for security and fire fighting cables which was established in 2001 with an area over 10,000 m² in Shenzhen. LLT has been very professional in the security field after a period for launching, promoting, developing for security products, especially for LPCB fire resistant cable, UL fire alarm cable, elevator cable and flexible cables.
As an international manufacturer, LLT imports advanced technology, trains a great number of high-quality, international, and conscientious personnel. During the production, LLT's skilled production team follows the standardized manufacturing process which is ISO9001:200 Quality System strickly for making sure every procedure is out of mistakes. LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS,VDE. UL and compliant with the RoHS Standard.

FAQ

1.Are you a manufacture or a trading company?

We are professional cable manufacturer with 21 years' production experience.

2.Does the factory have certification?

Yes, LLT's skilled production team follows the standardized manufacturing process which is ISO9001 Quality system strictly for making sure every procedure is out of mistakes.

3.Does your company's products have certification?

Yes, LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS, VDE, UL and commpliant with the RoHS standard.

4.When can I get the price and effectiveness?

We usually quote with in 6 hours. If you desperately need the price, please contact us or send us an EMAIL. We can handle the priority of your inquiry. Usually within a day. It's valid for 10 days.

5.What's your factory MOQ?

Our factory has MOQ requirement, but small quantity is also accepted.

6.I didn't find the product specifications I needed on this page.

Dear friends, you can contact us by email. In addition, we provide customized services. So please contact us!
