BS Standard or IEC 61089 300 mm2 ACSR Conductor All Aluminum Sranded Wires Steel Reinforced Conductor Overhead Transmission Bare Conductor
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR Conductor
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001, ISO14001, CCC, Ce
- Brand：Gdyg
- Standard：BS215, ASTM232, IEC61089
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600tons Per Month
Description
ACSR/AZACSR/MA ACSR/MB ACSR/MC ACSR/MS mm2 KN KN KN KN KN 1 1250 AA 84/19 306 300 293 319 289 2 1250 AA 76/19 269 265 260 278 260 3 1250 AA 72/7 250 246 242 257 239 4 1120 AA 84/19 275 269 263 286 259 5 1120 AA 46/19 240 236 232 248 232 6 1120 AA 72/7 226 223 219 232 218 7 1000 AA 84/19 245 239 234 254 231 8 1000 AA 72/7 202 199 196 208 195 9 900 AA 84/19 226 221 217 236 217 10 900 AA 72/7 181 179 176 186 175 11 800 AA 54/19 240 233 227 252 223 12 800 AA 45/7 186 182 179 193 175 13 710 AA 54/19 213 207 201 224 198 14 710 AA 45/7 167 164 160 173 158 15 630 AA 54/19 189 184 179 199 176 16 630 AA 45/7 148 145 142 153 140 17 560 AA 5419 173 168 164 182 164 18 560 AA 45/7 132 129 126 136 125 19 500 AA 54/7 154 150 145 163 141 20 500 AA 45/7 118 115 113 122 112 21 450 AA 54/7 139 135 131 147 128 22 450 AA 45/7 108 106 104 112 103 23 400 AA 30/19 170 164 158 181 155 24 400 AA 26/7 139 135 131 148 126 25 400 AA 54/7 123 120 116 130 113 26 355 AA 30/19 151 146 140 161 137 27 355 AA 26/7 123 119 115 131 112 28 355 AA 24/7 111 108 105 117 103 29 315 AA 30/19 138 133 128 147 128 30 315 AA 26/7 110 106 103 117 99.3 31 315 AA 24/7 98.7 96 93.2 104 91.7 32 315 AA 18/1 68 66.8 66.3 70.8 64 33 280 AA 30/7 122 118 113 131 109 34 280 AA 26/7 100 97.2 94.1 106 92.4 35 280 AA 24/7 87.5 85.1 82.6 92 81.2 36 280 AA 18/1 60.4 59.4 58.9 63 56.8 37 250 AA 30/7 109 105 101 117 97.4 38 250 AA 26/7 89.5 86.8 84.1 94.6 82.5 39 250 AA 24/7 79.4 77.2 75 83.4 73.8 40 250 AA 18/1 54.1 53.1 52.7 56.4 50.9 41 224 AA 30/7 97.4 93.9 90.4 104 86.9 42 224 AA 26/7 80 77.6 75.1 84.5 73.7 43 224 AA 24/7 72 70.1 68.1 74.8 68.1 44 224 AA 18/1 48.3 47.5 47.1 50.4 45.5 45 200 AA 30/7 89.7 86.6 83.4 95.5 81.6 46 200 AA 26/7 71.5 69.3 67.2 75.6 65.9 47 200 AA 24/7 64.2 62.5 60.7 67.7 60.7 48 200 AA 18/1 43.1 42.4 42.1 45 41.3 49 180 AA 30/7 80.7 77.9 75 85.9 73.4 50 180 AA 26/7 65.4 63.4 61.4 69 60.3 51 180 AA 24/7 57.8 56.2 54.7 60.9 54.7 52 180 AA 18/1 40.4 39.7 39.1 41.4 38.1 53 160 AA 30/7 72.9 70.4 67.9 77.6 66.4 54 160 AA 26/7 58.9 57.2 55.4 62.4 55.4 55 160 AA 24/7 52 50.6 49.2 54.8 49.2 56 160 AA 18/1 35.8 35.2 34.6 37 34 57 140 AA 26/7 52.2 50.7 49.2 55.3 49.2 58 140 AA 24/7 46.4 45.2 44 48.9 44 59 140 AA 18/1 31.5 30.9 30.4 32.5 29.9 60 125 AA 26/7 46.9 45.6 44.2 49.6 44.2 61 125 AA 24/7 41.5 40.4 39.3 43.6 39.3 62 125 AA 18/1 28.8 28.3 27.9 29.7 27.6 63 100 AA(HS) 16/19 123 117 111 133 106 64 100 AA(HS) 12/7 85.9 82 78 93.8 74.1 65 100 AA, A 6/1 34.6 33.5 33 37.3 30.8 66 90 AA(HS) 12/7 77.2 73.6 70.1 84.2 66.6 67 80 AA(HS) 12/7 70.6 67.5 64.4 76.4 62.6 68 80 AA, A 6/1 27.6 26.7 26.4 29.8 24.6 69 71 AA(HS) 12/7 62.9 60.2 57.4 68.1 55.8 70 63 AA(HS) 12/7 56.2 53.8 51.3 60.8 49.9 71 63 AA, A 6/1 22.1 21.4 21.1 23.8 20.4 72 56 AA(HS) 12/7 50.2 48 45.8 54.3 44.5 73 50 AA(HS) 12/7 45.4 43.5 41.5 48.2 41.5 74 50 AA, A 6/1 18.1 17.5 17 19.2 16.4 75 40 AA(HS) 8/1 22.5 21.5 21.1 24.7 19.3 76 40 AA, A 6/1 14.9 14.4 14 15.7 13.7 77 31.5 AA, A 7/1 15.1 14.6 14 16.2 13.5 78 31.5 AA, A 6/1 11.9 11.6 11.2 12.6 11 79 25 AA, A 7/1 12.3 11.9 11.5 131 11.2 80 25 AA, A 6/1 9.65 9.37 9.09 10.1 9.09 81 20 AA, A 7/1 10 9.69 9.34 10.7 9.15 82 20 AA, A 6/1 7.84 7.62 7.39 8.29 7.39 83 16 AA, A 6/1 6.33 6.15 5.97 6.69 5.97 84 12.5 AA, A 6/1 4.97 4.83 4.69 5.25 4.69
Main feature
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum, Al-clad steel
Sheath Material: Bare
Insulation Material: Bare
Model No: ACSR Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001, ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
ACSR Code: Turkey, Swan, etc
ACSR Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Specification: 10mm2 - 1500m
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China

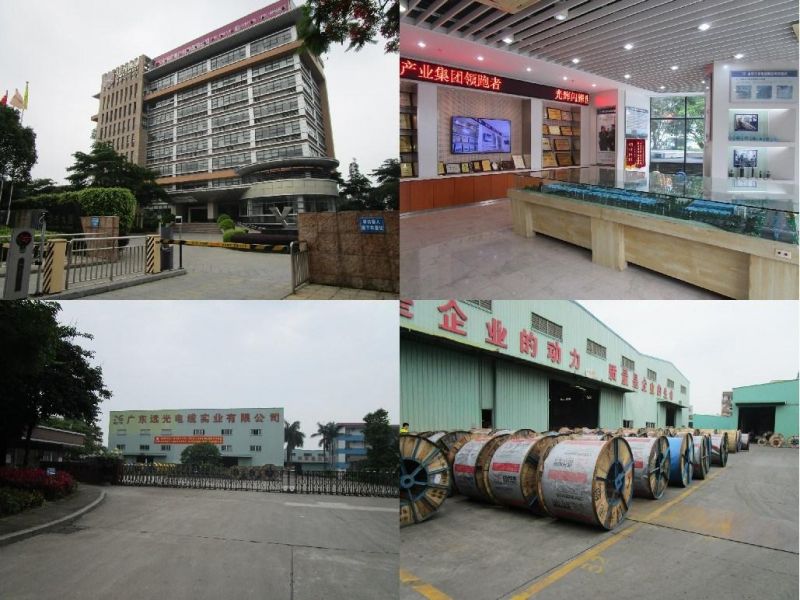

Our company

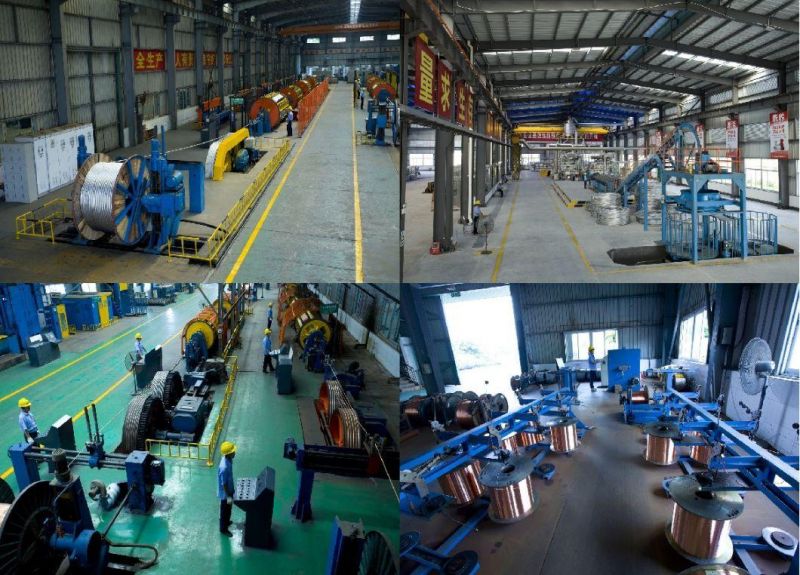

Workshop
Certificates
Customers Visiting
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
