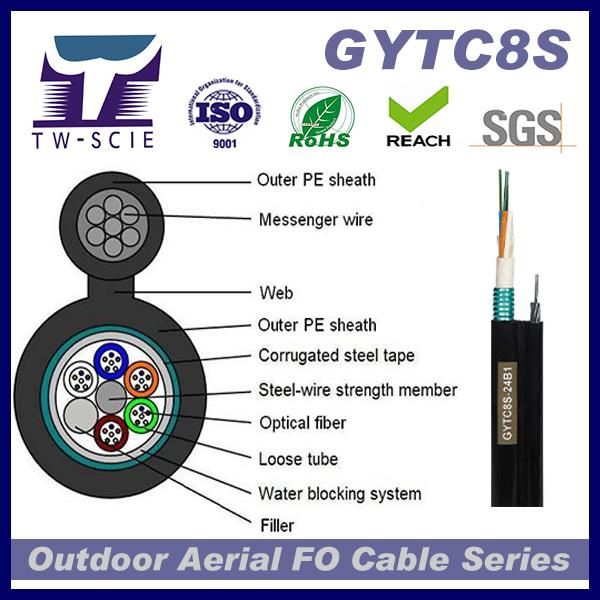

2-288 Core Self-Support Fiber Optic Cable GYTC8S

DONGGUAN TW-SCIE CO., LTD.
  • Type：Single-mode Fiber
  • Connection Structure：Self-Support Fiber Optic Cable
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：1000N<10000N
  • Core：Multicore

Base Info

  • Model NO.：GYTC8S
  • Certification：RoHS, Reach
  • Brand：OEM
  • Sheath Material：PE
  • Messenger Material：Steel Wire
  • Loose Tube Material：PBT with Jelly
  • Waterblocking Material：Water Blocking Tape or Filling Compound
  • Outer Sheath Material：MDPE , HDPE , LSZH PE
  • Outer Sheath Color：Black PE Fiber Optic Cable
  • Single Armour Material：Corrugated Steel Tape
  • Central Stranded Member：Steel Wire or FRP
  • Operating Temperature：-40 Degree ~ +60 Degree
  • Transport Package：Wooden Drum
  • Specification：SGS ROHS REACH ISO
  • Trademark：TW-SCIE or OEM
  • Origin：China (Mainland) Guangdong Dongguan
  • HS Code：8544700000
  • Production Capacity：200km,Day

Description

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiberCharacteristicsConditionsSpecified ValuesUnitsOptical Characteristics   Mode field diameter (MFD)1310nm
1550nm9.2±0.4
10.4±0.8µm
µmCut-off wavelength (λcc) ≤1260nmAttenuation coefficient1310nm
1383nm
1550nm<0.35
<0.35
<0.22dB/km
dB/km
dB/kmMacro bending lossφ75mm, 100circles, at 1550nm≤0.1dBAttenuation non-uniformity ≤0.05dBDispersion coefficient1288~1339nm
1271~1360nm
1550nm≤3.5
≤5.3
≤18Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km)Zero dispersion wavelength 1300~1324nmMax zero dispersion slope ≤0.093Ps/(nm2.km)Group index of refraction (typical value)1310nm
1550nm1.466
1.467 Geometric characteristic   Cladding diameter 125.0±1.0µmCore/cladding concentricity error ≤0.8µmCladding non-circularity ≤1.0%Coating diameter 245.0±10µmCladding/coating concentricity error ≤12.0µmCoating non-circularity ≤8%Diameter of colored coating 250.0±15µmMechanical characteristic   Curling (radius) ≥4mProof stress >0.69GpaCoating strip forceAverage value
Peak value1.0-5.0
1.3-8.9N
NDynamic stress corrosion susceptibility parameter (nd value) ≥20
 50/125 MM In cable:
 1300nm

2-288 Core Self-Support Fiber Optic Cable GYTC8S

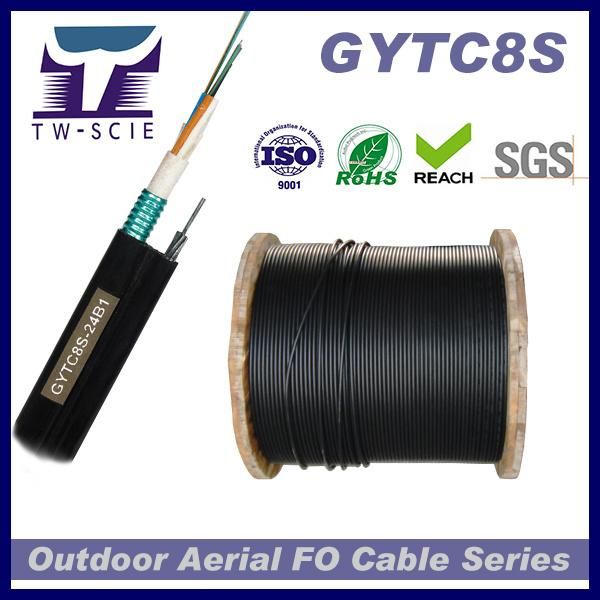

More Pictures(Self-support Fiber Optic Cable):

2-288 Core Self-Support Fiber Optic Cable GYTC8S
2-288 Core Self-Support Fiber Optic Cable GYTC8S

Company Overview:

2-288 Core Self-Support Fiber Optic Cable GYTC8S

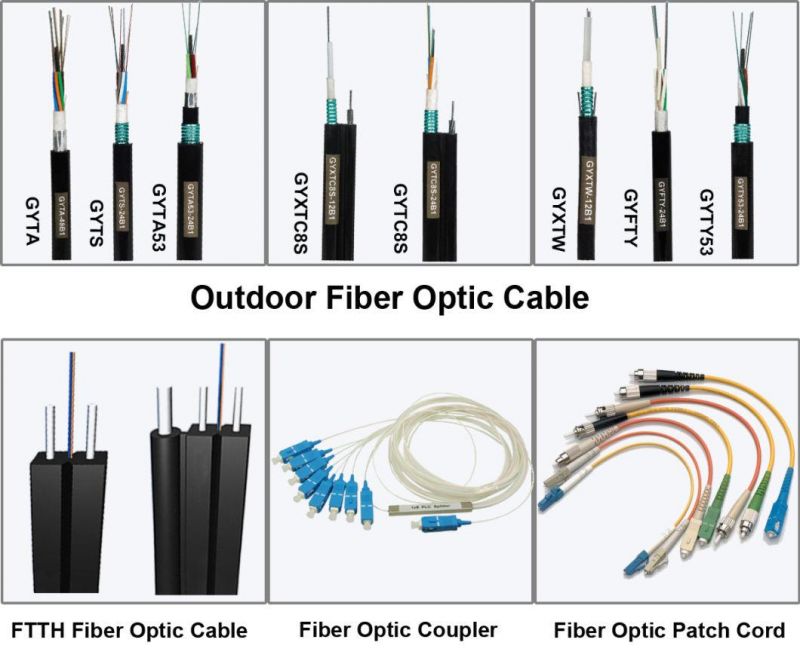

Related Products:
