• Model NO.：FTTH
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC, Reach
• Brand：OEM
• Sheath Material：Lszh
• Model：GJXFH
• Fiber Conts：1-4 Fibers
• Strength Member：FRP or Steel
• Transport Package：1km or 2km Wooden Reel
• Specification：CE, RoHS, ISO9001, UL, ETL
• Trademark：OEM
• Origin：China
• HS Code：85447000
• Production Capacity：10000km Per Month

Basic Info.

Model NO. FTTH Core Multicore Certification RoHS, UL, CE, ISO9001, VDE, CCC, Reach Brand OEM Sheath Material Lszh Model GJXFH Fiber Conts 1-4 Fibers Strength Member FRP or Steel Transport Package 1km or 2km Wooden Reel Specification CE, RoHS, ISO9001, UL, ETL Trademark OEM Origin China HS Code 85447000 Production Capacity 10000km Per Month

Product Description

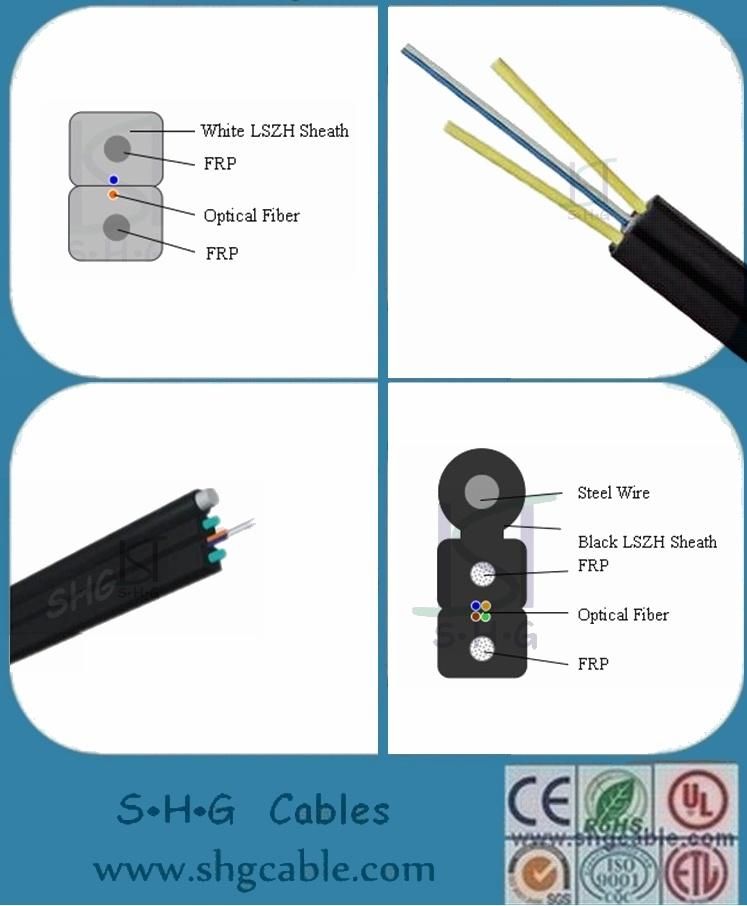

SHG Butterfly indoor FTTH Fiber Optic Cable , the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a LSZH sheath, UV & Flame retardant.

Features
 2) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
 3) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
 4) Simple structure, light weight and high practicability;
 5) Novel flute design, easily strip and splice, simplify the installation and maintenance;
 6) Low smoke, zero halogen and flame retardant sheath.

Certificates:
CE, RoHS, ISO9001:2000



Package:
1km / 2km in wooden reel or plastic reel and then in carton, then in Pallets.

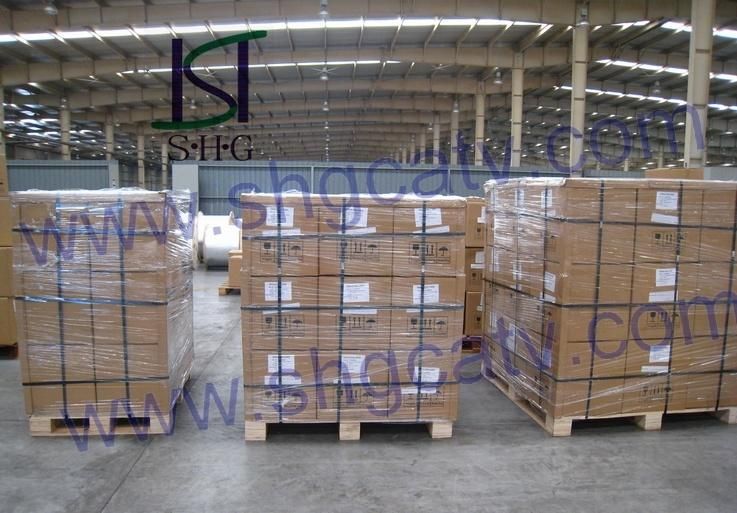

SHG Fiber Optic Cable factory overview


Construction

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0± 0.2)× (3.0± 0.2)	8	30/60	300/1000	15/30
2	(2.0± 0.2)× (3.4± 0.2)	8.5	30/60	300/1000	15/30
1	(2.0± 0.2)× (3.8± 0.2)	9	30/60	300/1000	15/30
4	(2.0± 0.2)× (4.0± 0.2)	10	30/60	300/1000	15/30
