Factory Price Outdoor ADSS/GYTS/GYTC8S Cable Aerial Fiber Optic/Optical Cable and FTTH Drop Cable
Shenzhen DYS Fiber Optic Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Fiber Optic Cable, RF Cable, Submarine Cable
- Conductor Material：Fiber Optic
- Cover Material：PVC,LSZH,PE
- Type：Fiber Optic Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：GYTA , GYXTW53 , GYXTW , ADSS , GYFTC8S , GYTS
- Wire Core Material：Fiber
- Certification：CE, ISO, RoHS, UL
- Model：Singlemode or Multimode
- Brand：Corning, Yofc, Ofs
- OEM for Cable：Available
- Fiber Account：2 Core to 144core
- Fiber Type：Single Mode
- MOQ：1-2km
- Function：Delivery Signal Light
- Operating Temperature：-40°c~+70°c
- Sheath Material：PE or at for Aerial Fiber Optic Cable ADSS
- Warranty：20 Years
- Fiber Brand：Yofc,Ofs,Corning
- Packing：Wooden Drum
- Transport Package：According to Customer′s Request
- Specification：RoHS, ISO9001
- Trademark：DYS or OEM
- Origin：Guangdong, China (Mainland)
- HS Code：8544700000
- Production Capacity：5000,Month
Description
-40~+70
Description:
Description:

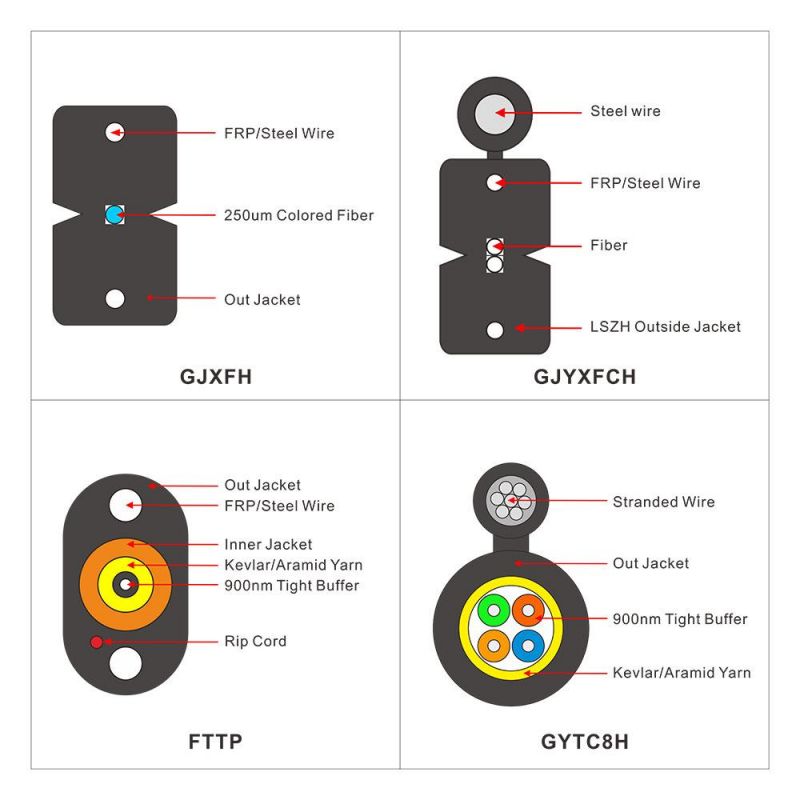

- The optical fiber unit is positioned in the center.
- Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
- Then the cable is completed with a black or white color LSZH sheath.
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame retardant sheath
- Simple structure, light weight and high practicability
- Used in indoor cabling, especially used for FTTH
- Used as access building cable
| Cable code | Fiber Count | Cable diameter mm | Cable weight Kg/km | Tensilse Strength Long/Short term N | Crush Resistance Long/Short term N | Bedning Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
