• Model NO.：MC,MCP,MCPJB
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Mc,Mcp,Mcpjb
• Brand：Rneda
• Product Name：Mining Cable
• Size：1.5mm2 2.5mm2 4.0mm2 6.0m2 10mm2 16mm2
• Cores：2,3,4,7,12cores
• Standard：Mt818 GB12972
• Rate Voltage：0.3,0.5kv 0.38,0.66kv 0.66,1.44kv 1.9,3.3kv 3.6,6K
• Temperature：65 and 90
• Insulated：Rubber
• Sheathed：Rubber
• Minimum Bending Radium：6 Times of The Cable Diameters
• Transport Package：Standard Export Drum.
• Specification：GB12972
• Trademark：RNEDA
• Origin：China
• HS Code：8544492100
• Production Capacity：500000meter Per Month

Basic Info.

Model NO. MC/MCP/MCPJB Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Mc/Mcp/Mcpjb Brand Rneda Product Name Mining Cable Size 1.5mm2 2.5mm2 4.0mm2 6.0m2 10mm2 16mm2 Cores 2,3,4,7,12cores Standard Mt818 GB12972 Rate Voltage 0.3/0.5kv 0.38/0.66kv 0.66/1.44kv 1.9/3.3kv 3.6/6K Temperature 65 and 90 Insulated Rubber Sheathed Rubber Minimum Bending Radium 6 Times of The Cable Diameters Transport Package Standard Export Drum. Specification GB12972 Trademark RNEDA Origin China HS Code 8544492100 Production Capacity 500000meter Per Month

Product Description

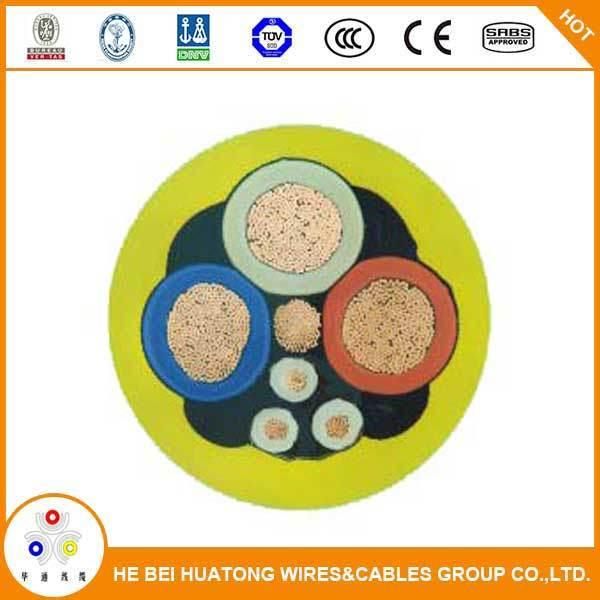

Hot Sale Electrical Trailing Cable for Mining Use Underground Wire 0.6/1kV 3.6/6kV Flexible Rubber Sheathed

1 Brief introduction
1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.
2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90ºC;for the other, it is 65ºC.
3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.
4 The grounding wire should be well connected with the earth.
5The cable should be prevented from exposing to the sunshine for a long time.

2 Implemented standard
1For the non-spread combustion cable, implement GB12972 Flexible rubber mining cable
2For the flame-retardant cable, implement MT818Flame-retardant cable used in the coal mine
3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.

3 Type and Name


Type	Description	Application
MC-0.38/0.66	Rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.38/0.66	Shielded, rubber-sheathed flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.66/1.14	Shielded, rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14	Shielded ,monitoring and braiding reinforced type,  rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it can be dragged directly
MCPJR-0.66/1.14	Shielded ,monitoring and braiding reinforced type,  rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it must be used in the protective chain panel
MCPT-0.66/1.14	Metallic shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV
MCP-1.9/3.3	Shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPT-1.9/3.3	Metallic shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPTJ-0.66/1.14
MCPTJ-1.9/3.3	Metallic shielded, monitoring type,  rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MY-0.38/0.66	Movable rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 1.9/3.3kV
MYP-0.38/0.66	Movable shield rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 0.38/0.66kV
MYP-0.66/1.14	Movable shield rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 0.66/1.14kV
MYPJ-3.6/6	Monitoring movable shield rubber flexible cable for mining	As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV
MYPTJ-3.6/6	Metallic shielded monitoring type  movable rubber flexible cable	As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV
MYP-3.6/6	Movable shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-20ºC
MYPT-3.6/6	Movable metallic shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-20ºC
MYPD-3.6/6	Movable shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-40ºC
MYPTD-3.6/6	Movable metallic shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-40ºC
MZ-0.3/0.5	Driller cable for mining	As the power connection of driller with rated voltage 0.3/0.5kV
MZP-0.3/0.5	Driller shielded cable for mining	As the power connection of driller with rated voltage 0.3/0.5kV

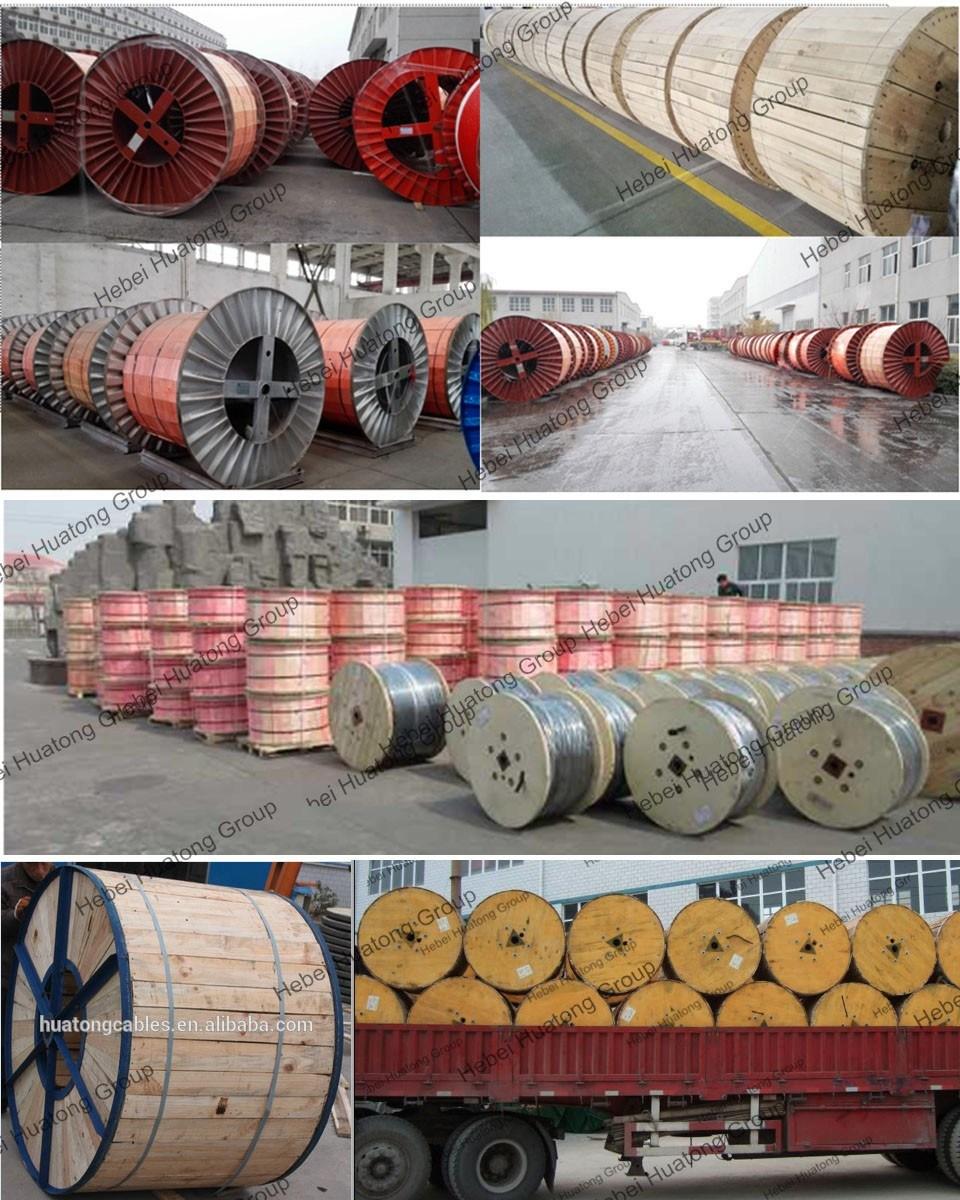

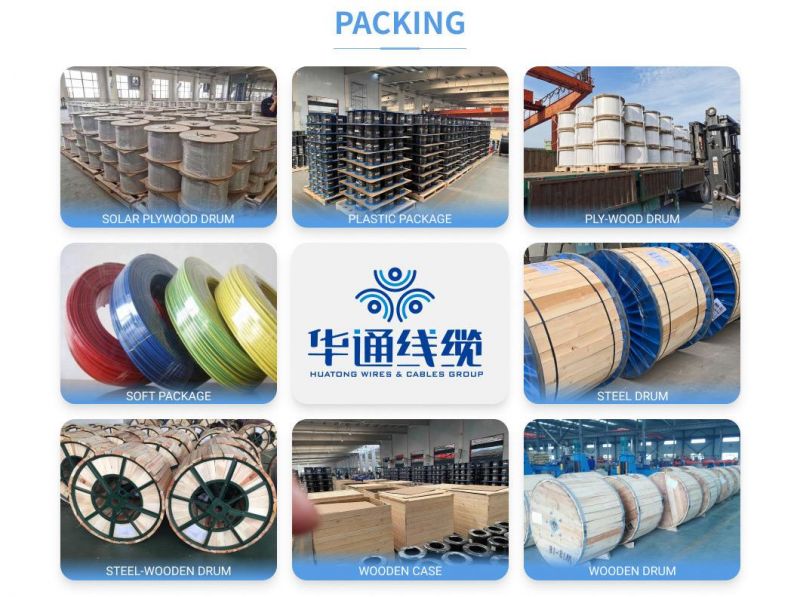

4 Packing: standard export drum
