1, 2 Core FTTH Indoor Drop Wire Fiber Optic Cable Optical Fiber Cable
DONGGUAN TW-SCIE CO., LTD.- Application:Communication, Drop Cable
- Type:Single-mode Fiber
- Connection Structure:Drop Cable
- Material Shape:Flat Wire
- Allowed Lateral Pressure:>1000(N,100mm)
- Allowed Tensile Strength:>10000N
Base Info
- Model NO.:drop cable
- Core:Multicore
- Certification:RoHS, UL, CE, ISO9001, Drop Cable
- Brand:Drop Cable
- Sheath Material:LSZH
- Product Name:Drop Cable
- Messenger Material:Steel Wire
- Other Messenger Material:FRP, Kfrp
- Jacket Material:LSZH,PVC
- Jacket Color:Black, White
- Installation Style:Indoor & Outdoor Aerial Drop Cable
- Optical Fiber Type:G.657A1
- Fiber Color:Customized
- Outer Diameter of Cable:2.0mm*5.0mm
- Diameter of Messenger Wire:1.0mm
- Transport Package:Wooden Drum
- Specification:SGS ROHS REACH ISO
- Trademark:TW-SCIE drop cable or OEM
- Origin:China (Mainland) Guangdong Dongguan
- HS Code:8544700000
- Production Capacity:200km,Day
Description
Attenuation(max.)
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Mechanical and Environmental Characteristics:
Items
Unit
Specifications
Tension(Long Term)
N
500
Tension(Short Term)
N
800
Crush(Long Term)
N/100mm
1000
Crush(Short Term)
N/100mm
2200
Min. Bend Radius(Dynamic)
mm
20D
Min. Bend Radius(Static)
mm
10D
Installation Temperature
ºC
-0ºC to + 60ºC
Operating Temperature
ºC
-20ºC to + 70ºC
Storage Temperature
ºC
-20ºC to + 70
Note:
1.Not all the FTTH cables are in the list. 1,2,4,6,8 fibers are available. Steel wire/FRP/KFRP material of strength member and messenger wire are available.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.The dimensions and raw materials can be designed according to the demand of the customers.
4.Standard Reel Length: 1000m/reel: other lengths available on request.
Packaging & Shipping
*Standard Packaging: The FTTH drop cable is rolled by Plastic Reel or wooden drum.1KM /drum or other required.
*Sheath markThe following printing(white hot foil indentation)is applied at 1-meter intervals.:
a. Supplier: TW-SCIE or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
Shipping: we have shipping department with professional guys work together with the experienced shipping agent overall the world.

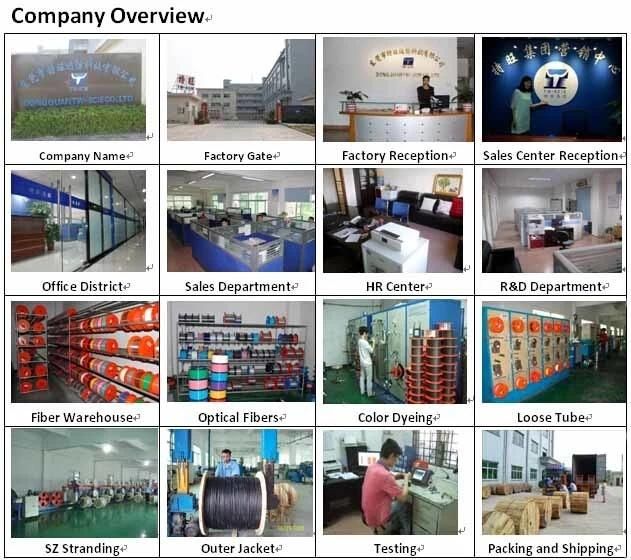

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own importers and exporters rights. Since its founding, high-quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provide the most completed product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with much scientific research academy.
The main products of our enterprise are:

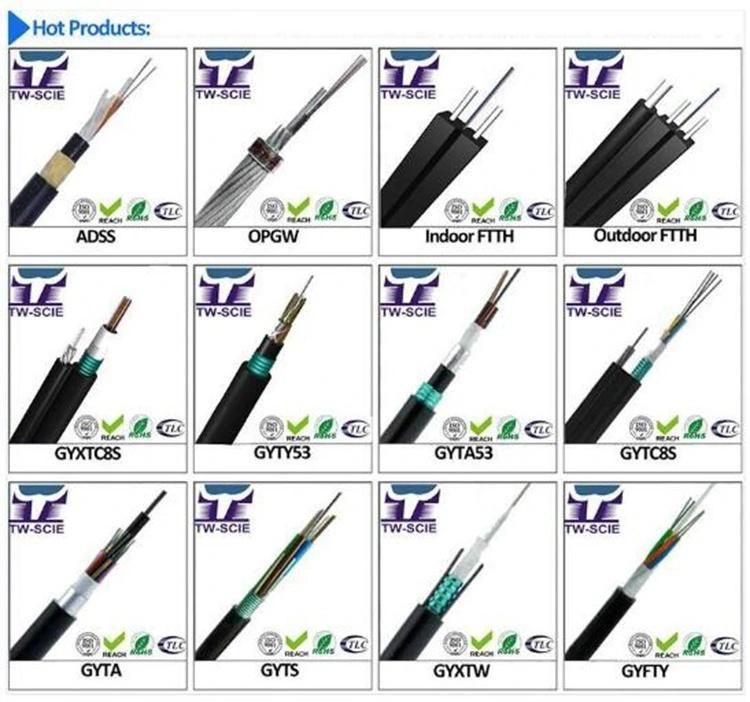

Drop cable, optical cable, drop cable, Optical media converter, optical transceiver, optical coupler, an optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and another related department, exporting France, India, Singapore, Malaysia.
