• Model NO.：SC,UPC fiber optic cable Patch cord
• Core：Double Core
• Certification：RoHS, ISO9001
• Brand：Koc
• Sheath Material：PVC
• Singlemode Duplex Lszh：2.0mm , 3.0mm, 0.9mm
• Cable Jacket：PVC, Lszh, Ofnr, Ofnp, PE
• Connector Type：Sc,LC,FC,St,Mu,MTRJ,MPO,MTP
• Cable Color：Blue,Green,Aqua,Red,Magenta,Beige
• Housing Material：Plastic,Metal
• Transport Package：Single Pack
• Specification：ISO, REACH, ROHS, TELL, CE
• Trademark：KOC
• Origin：Shenzhen, Guangdong
• HS Code：85447000
• Production Capacity：50000,Month



APPLICATIONS
 CATV
 Telecommunication networks
 Active device termination
 Metro
 Local Area Networks (LANs)
 Data processing networks
 Test equipment
 Premise installations
 Wide Area Networks (WANs)
AVAILABILITY
 Simplex/Duplex patch-cord available
 Fan-out available
 Pigtail available
 Various boot (cable) sizes available
FEATURES
 Low insertion loss and back reflection loss
 Good exchangeability
 Good Durability
 High temperature stability
 Standard: Telcordia GR-326-CORE
Price is for SC-SC singlemode simplex 5meter only.

Specifications single modemultimodeInsertion LossTypical≤0.2dB, Maximuml≤0.3dB≤0.25dBRetrun Loss≥50dB ( PC)
≥65dB ( APC) Repeatability≤0.1 Durability≤0.2dB typical change, 1000 matings Interchangeability≤0.2dB Tensile strength>70N
 Operating Temperature-40 to + 85ºC-40 to + 85ºC
Ordering OptionsConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable NumberApplicationLengthBeige0.9mmBeige9/125μm(SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out(4f)    Green Fan-out(6f)    Gray Fan-out(8f)    Red Fan-out(12f)    White
Company inforamtion

KOC Group consists of a number of companies specialized in manufacturing and selling fiber optic communication products, offering various worldwide solutions for telecommunication, broadcast, CATV and network industry.

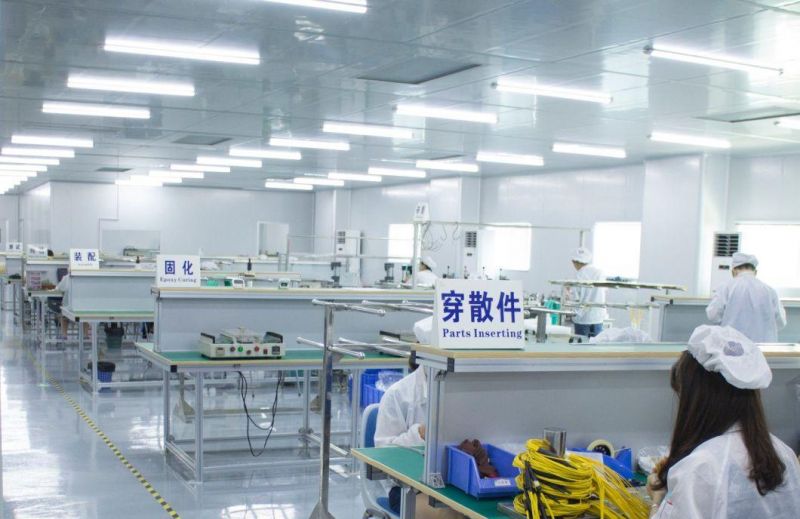

Company Photo




Company Photo





Note: The EXW price is for LC-LC simplex singlemode G652D 1 meter, thank you.
