• Model NO.：WDZ-HCBD
• Material Shape：Granules
• Range of Application：LSOH
• Certification：ISO9001, CE, RoHS
• Brand：Jsxd
• Original Tensile Strength：12.5 MPa
• Original Breakage Elongation：160 %
• pH：5.3
• Oxygen Index：40 %
• Conductivity：0.7 Us,mm
• Transport Package：Aluminum Foil Bag Inside and Kraft Bag Outside
• Specification：25 kg
• Trademark：JSXD
• Origin：China
• HS Code：3901909000
• Production Capacity：8000 Ton Per Month

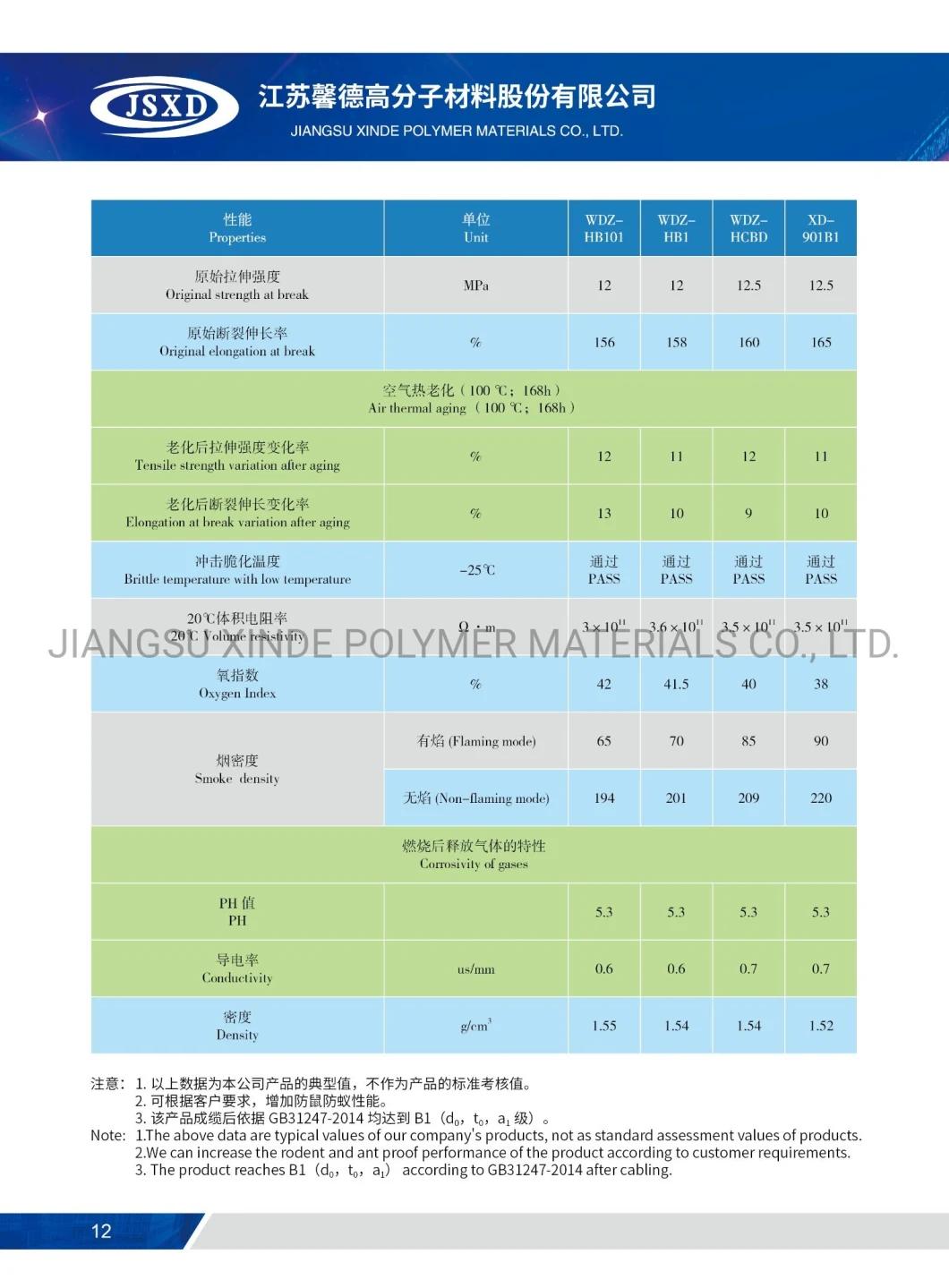

Basic Info.

Model NO. WDZ-HCBD Material Shape Granules Range of Application LSOH Certification ISO9001, CE, RoHS Brand Jsxd Original Tensile Strength 12.5 MPa Original Breakage Elongation 160 % pH 5.3 Oxygen Index 40 % Conductivity 0.7 Us/mm Transport Package Aluminum Foil Bag Inside and Kraft Bag Outside Specification 25 kg Trademark JSXD Origin China HS Code 3901909000 Production Capacity 8000 Ton Per Month

Product Description

WDZ-HCBD Fire Resistant Low release Cable Sheath Material LSOH LSZH LSFH OHLS LS0H


Description:
This series of products are suitable for rail transit fire-resistant cable. Under the specified conditions, the material in the unit time of combustion to release low heat, low smoke toxicity, high fire retardant.

Processing:
This series of products, it is recommended to dry for about 2 hours before processing, drying temperature: 70ºC, drying temperature can rise to 80ºC in the starting state. It is recommended that the aspect ratio is about 25, and the screw with good plasticization is processed. The processing temperature is suggested to be :135ºC-140ºC-145ºC-150ºC -155ºC-160ºC-165ºC(reference temperature)

Packing:
Net weight 25kg: Inner aluminum foil/polyethylene composite film bag, outer kraft paper composite bag.
Net weight 1000kg: Inner aluminum foil/polyethylene composite film bag, outer polypropylene woven composite bag.

Storage:
The product should be stored in a clean, dry and ventilated warehouse, and should not be damaged by sun, rain, water and other abnormal conditions.  Storage temperature should not be lower than 0ºC.  The storage period of the product shall not exceed 6 months from the date of production.
