• Model NO.：H1Z2Z2-K
• Certification：TUV
• Wire Core Material：Tinned Wire
• Code Name：H1z2z2-K
• Conductor：Flexible Tinned Copper
• Type：Class 5
• Insulation：Halogen-Free Cross-Linked Compound
• Sheath：Halogen-Free Cross-Linked, Flame Retardant Compoun
• AC Voltage：600,1000V
• Sheath Color：Black or Red
• Standard：TUV 2 Pfg 1169,08.2007
• Temperature Rating：Fixed: -40deg.C to +90deg.C
• Transport Package：Fumigated Steel Wooden Drum or Wooden Drum
• Specification：Tinned Copper
• Trademark：Dingan
• Origin：China Mainland (Jiangsu)
• HS Code：8544492100
• Production Capacity：250000 Kilometers Per Year

NO OF  CORESNOMINAL CROSS SECTIONAL AREA mm²NOMINAL WEIGHT kg/kmNOMINAL INSULATION THCIKNESS mmNOMINAL SHEATH THICKNESS mm11.537.40.91.112.549.20.91.11467.00.91.11691.51.01.1110134.31.11.2116198.91.31.2125305.41.31.2135428.6--150577.5--170778.8--1951028.0--11201280.5--11501598.1--11851983.2--
Packaging & Shipping

Fumigated Steel-Wooden Drum/Wooden Drum


Company Information

Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.

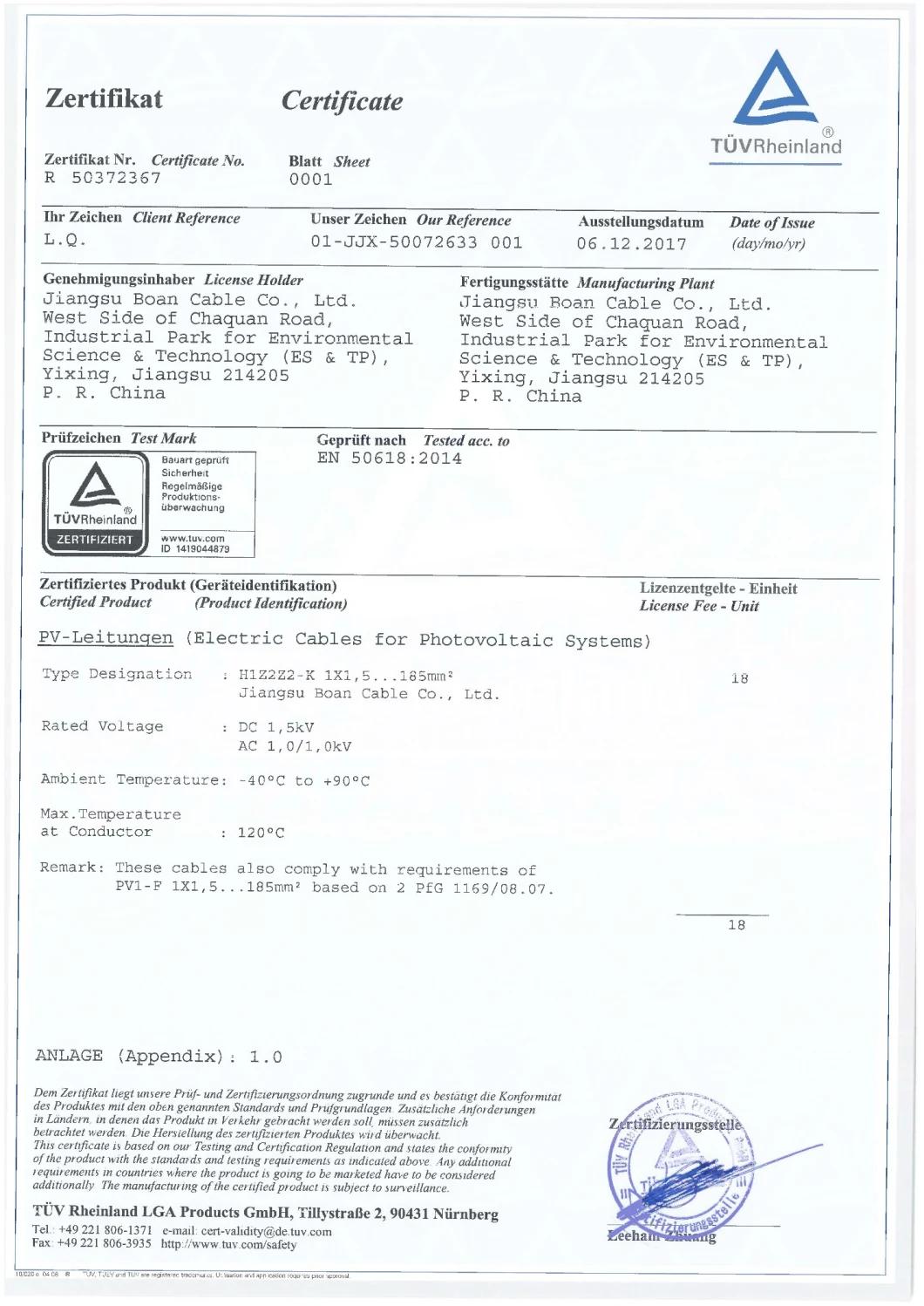

Certification:
