• Model NO.：UTP Cat6
• Type：Cat 6
• Material Shape：Round Wire
• Conductor Type：Solid
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：UTP CAT6
• Impedance：100 Ohm
• Color：Gray, White, Blue or Based on Customer′s Requireme
• Support Network：Ethernet
• Usage：Computer
• Information Content：Data
• Condition：New
• Iner Package：305m,1000ft
• out Package：1roll,Pull Box 2boxes,Carton
• OEM& Free Samples：Available
• Center Conductor O.D.：0.55,0.565,0.57mm
• Transport Package：305m,Pull Box, 2 Pull Boxes,Carton Box
• Specification：CE, ROHS, REACH, ETL, UL, ISO, SGS, BV
• Trademark：Xingfa or OEM
• Origin：Hagnzhou, China
• HS Code：854491100
• Production Capacity：18000kilometer,Month
• Package size per unit product：42.00cm * 42.00cm * 22.00cm
• Gross weight per unit product：15.000kg

Basic Info.

Model NO. UTP Cat6 Type Cat 6 Material Shape Round Wire Conductor Type Solid Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Model UTP CAT6 Impedance 100 Ohm Color Gray, White, Blue or Based on Customer′s Requireme Support Network Ethernet Usage Computer Information Content Data Condition New Iner Package 305m/1000ft out Package 1roll/Pull Box 2boxes/Carton OEM& Free Samples Available Center Conductor O.D. 0.55/0.565/0.57mm Transport Package 305m/Pull Box, 2 Pull Boxes/Carton Box Specification CE, ROHS, REACH, ETL, UL, ISO, SGS, BV Trademark Xingfa or OEM Origin Hagnzhou, China HS Code 854491100 Production Capacity 18000kilometer/Month

Packaging & Delivery

Package size per unit product 42.00cm * 42.00cm * 22.00cm Gross weight per unit product 15.000kg

Product Description

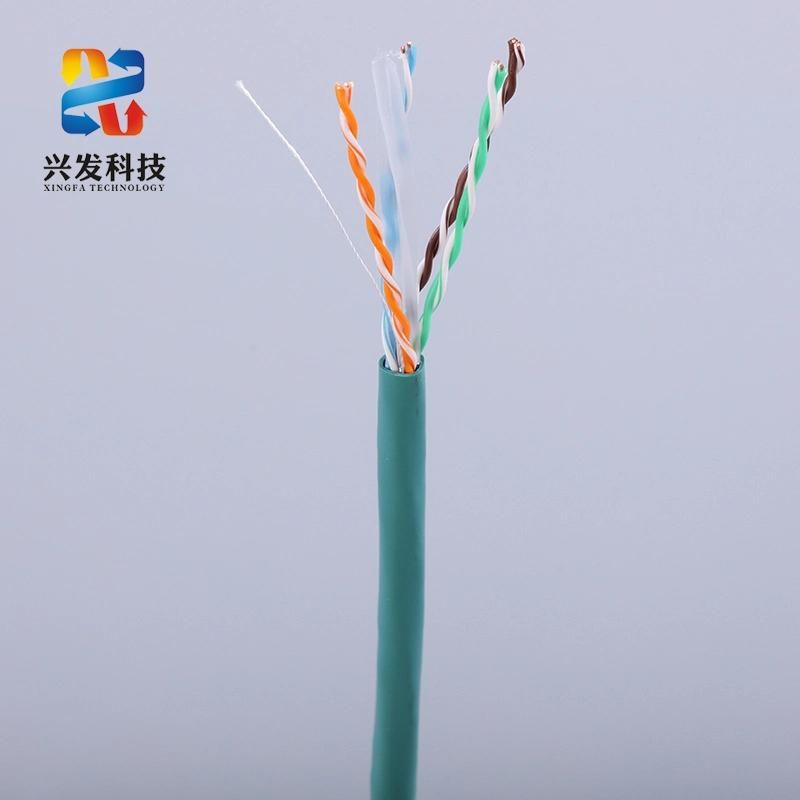

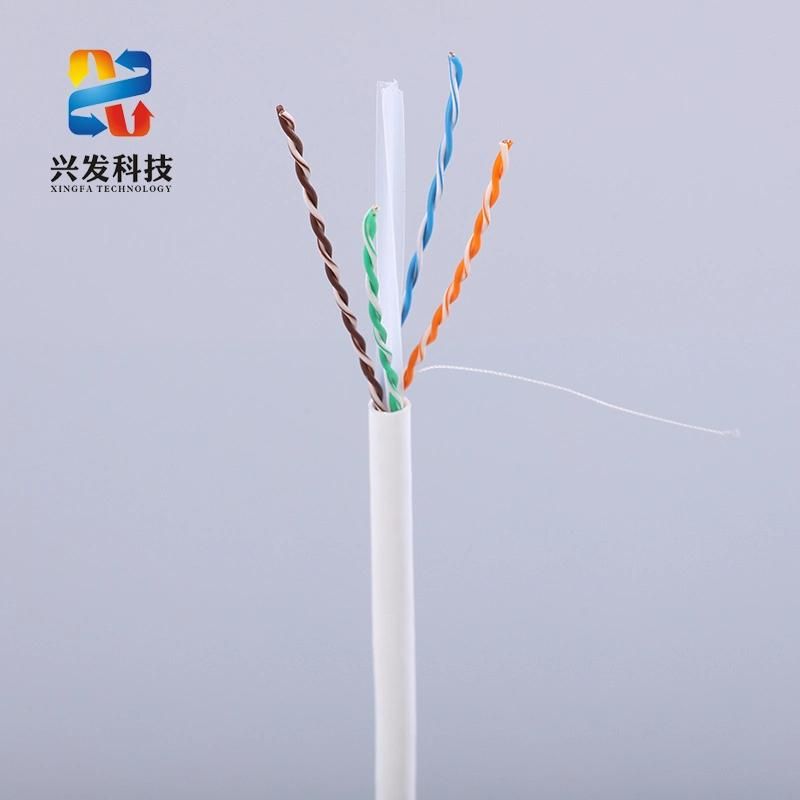

High Speed Ethernet  UTP CAT6 305m Cable

UTP CAT6 Cable is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is
Also used to carry other signals such as telephony and video.

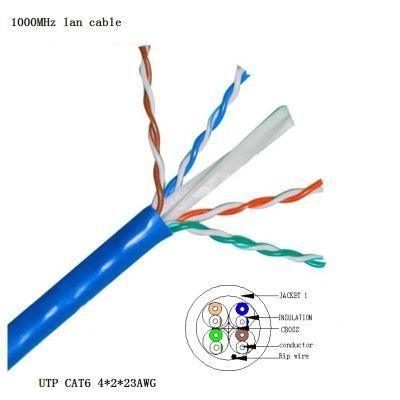

UTP Cat6

4Pairs(1 x 0.56mm) BC Conductor

1.03mm HDPE Insulation

Cross Seperator+Rip Cord

6.1mm PVC Jacket

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1	20.0	2.03	74.3	570	67.8	72.3	64.8
4	23.0	3.78	65.3	552	55.7	63.3	52.8
8	24.5	5.32	60.8	546.73	49.7	58.8	46.7
10	25.0	5.95	59.3	545.38	47.8	57.3	44.8
16	25.0	7.55	56.2	543	43.8	54.2	40.7
20	25.0	8.47	54.8	542.05	41.8	52.8	38.8
25	24.3	9.51	53.3	541.2	39.8	51.3	36.8
31.25	23.6	10.67	51.9	540.44	37.9	49.9	34.9
62.5	21.5	15.38	47.7	538.55	31.8	45.4	28.8
100	20.1	19.8	44.3	537.6	27.8	42.3	24.8
200	18.0	28.98	39.8	536.54	21.8	37.8	18.8
250	17.3	32.85	38.3	536.27	19.8	36.3	16.8

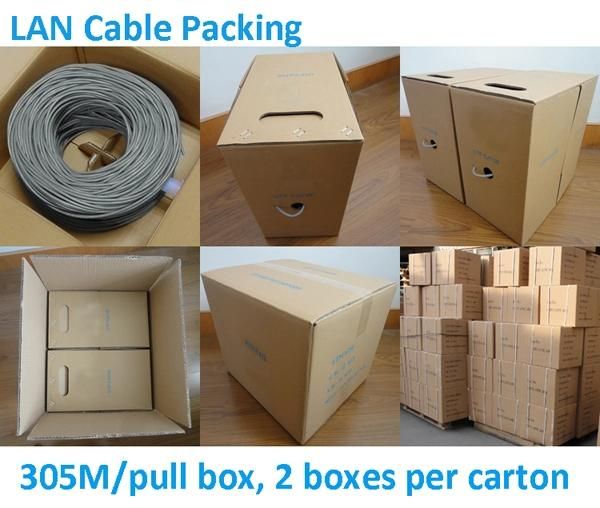

Packing
