• Model NO.：ACSR-Dayuan-031
• Material Shape：Round Wire
• Range of Application：Power Distribution and Transmission
• Certification：ISO9001, CE, CCC
• Brand：Dayuan
• Quality Check：All Products Checked by Experienced QC
• Trail Order：Welcome
• OEM Service：Welcome
• Delivery Date：15days~35days After Order Confirmed
• Other：High Voltage
• Conductor Shape：Circular Core or Compact Core
• Cross Section Area：10-1500 mm2
• Standard：IEC502, BS7870-5, GB12527-91
• Key Word：ACSR
• Transport Package：Use The Drum, We Can Make as Customer Requirement
• Specification：IEC, ASTM, ICEA, BS, DIN
• Trademark：Luoyang Dayuan
• Origin：Luoyang, China
• HS Code：7614100000
• Production Capacity：100000m,Day

Basic Info.

Model NO. ACSR-Dayuan-031 Material Shape Round Wire Range of Application Power Distribution and Transmission Certification ISO9001, CE, CCC Brand Dayuan Quality Check All Products Checked by Experienced QC Trail Order Welcome OEM Service Welcome Delivery Date 15days~35days After Order Confirmed Other High Voltage Conductor Shape Circular Core or Compact Core Cross Section Area 10-1500 mm2 Standard IEC502, BS7870-5, GB12527-91 Key Word ACSR Transport Package Use The Drum, We Can Make as Customer Requirement Specification IEC, ASTM, ICEA, BS, DIN Trademark Luoyang Dayuan Origin Luoyang, China HS Code 7614100000 Production Capacity 100000m/Day

Product Description

Overhead conductor ACSR Cable Aluminum Conductor Steel Reinforced ACSR

Company Information

1: a group with seven sub-companies;

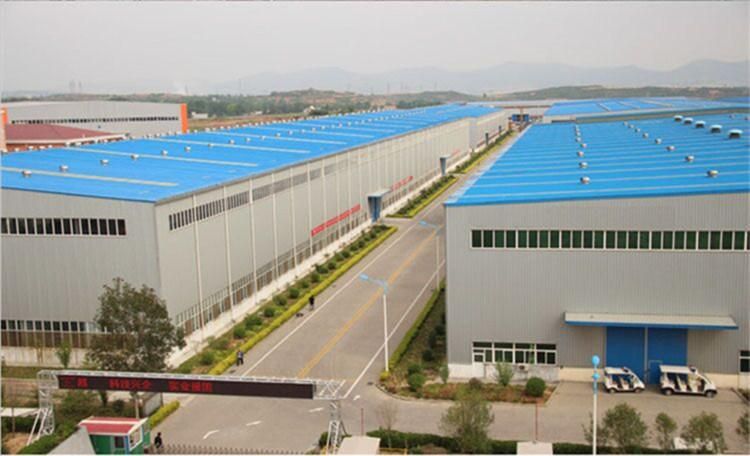

2: Factory about 200,081 square meters;

3: 800 staffs and 40 engineers, 11 production lines;

4: production capacity: 100,000m/day.




ACSR Conductor
ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.



Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Expressed Method of Product
1: Code
Stranded wire..............................................J
Aluminum conductor.........................................…L
Steel core .............................................…..G
Corrosion.................................................F
2: Expressed method of product
  Example:
Aluminium conductors steel-reinforced, Nominal cross area120mm2,steel-reinforced20 mm--------- LGJ -120/20    GB1179-83



 Material Standard
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
2) The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
3) Production can be arranged according to customers requirements for material standard,etc.
Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced
Standards:
ASTM-B232   Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2       aluminum conductors steel-reinforced -For overhead power transmission
DIN48204       Steel reinforced aluminum stranded conductors
IEC209           Aluminum stranded conductor steel reinforced
Customized type available



Packing & Delivery
Package: simple rolls, wooden drum, or wooden steel drum, your requirement is ok;
Delivery: according order qty, usually 20-30days after contract

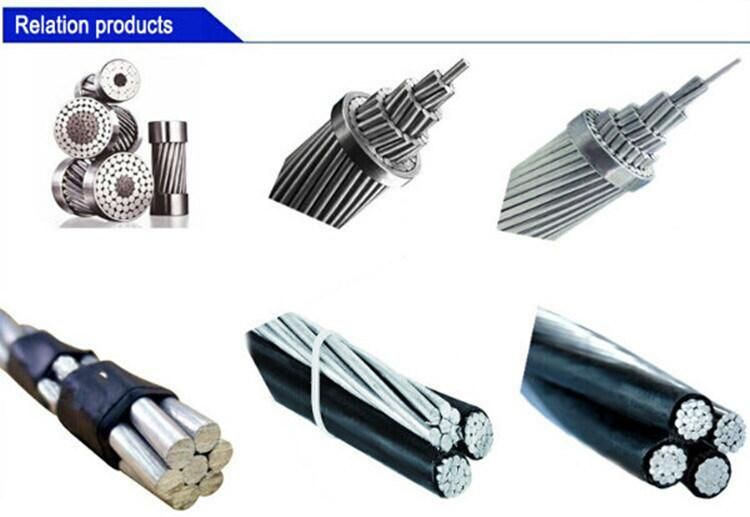

Products we can Produce
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications

No.	Products Name
1	electrical wires, power cables, control cables
2	solar cables
3	aerial cables
4	all aluminum conductor(AAC)
5	aluminum conductor steel reinforced wire(ACSR)
6	all aluminum alloy conductor(AAAC)
