• Model NO.：HXELEVATOR-BP
• Sheath Material：PVC
• Insulation Material：PVC
• Material Shape：Flat Wire
• Certification：ISO9001, CE, UL, RoHS, VDE
• Brand：Hxin
• Transport Package：Carton and Strong Wooden Drum
• Specification：cores 24*0.75mm2+2*2p*0.75mm2
• Trademark：Hxin
• Origin：Shanghai, China
• Production Capacity：1000000meter

Basic Info.

Model NO. HXELEVATOR-BP Sheath Material PVC Insulation Material PVC Material Shape Flat Wire Certification ISO9001, CE, UL, RoHS, VDE Brand Hxin Transport Package Carton and Strong Wooden Drum Specification cores 24*0.75mm2+2*2p*0.75mm2 Trademark Hxin Origin Shanghai, China Production Capacity 1000000meter

Product Description

Product Description
 Conductor: comply with GB/T3956-1997 5kinds conductor specification requirement. following DIN VDE 0295 and IEC 228 standard twisted copper wires
Conductor insulation: PVC/D type
Conductor colors: conductor inuslation color more than 5 cores following GB5023.1-2012 4.2
Conductor structure: Insulation core stranding, grouping seriation
Outer Jacket: PVC/ST5 cold-resistant special  sheath,Black(RAL9005)orgrey(RAL7001).
Shield:  Braid made of copper wires
Standards:GB5023.6-2012 ,factory standard


Technical parameters
 Rate voltage:U0/U 300/500V
test voltage:  insulation thickness≤0.6:1500V,finished product test:2000V.
Minimum bending radius: Cable installtion allowed bending radius should no less than 6 times of cable width.
Tensile strength: test according to standard GB5023.2-2008 3.6
Static bending test: According to GB5023.2-2012 3.5
operating temperature:-15ºC- +70ºC
Flame resistance: pass GB/T18380.1-2001 test and GB5023.6-2012
Product Features
 1.Good softness2.Free hanging length no more than 80 meters,3.Moving speed is no more than4m/s.4.Conductor maximum temperature is 70ºC , 5.Normal working temperature is -5ºC ~40 ºC  CertificationROHS,CE


Application

Apply for the elevator internal traveling suspension cable

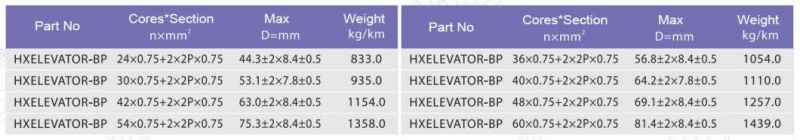

Specification (we also accept customer's specification)

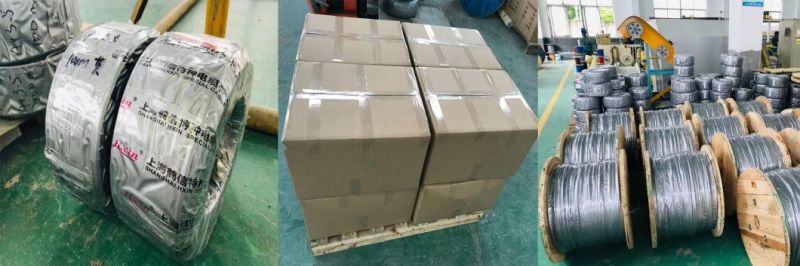

Packing ways

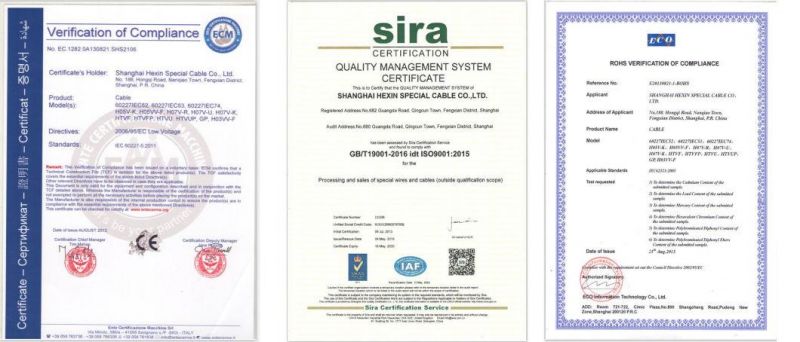

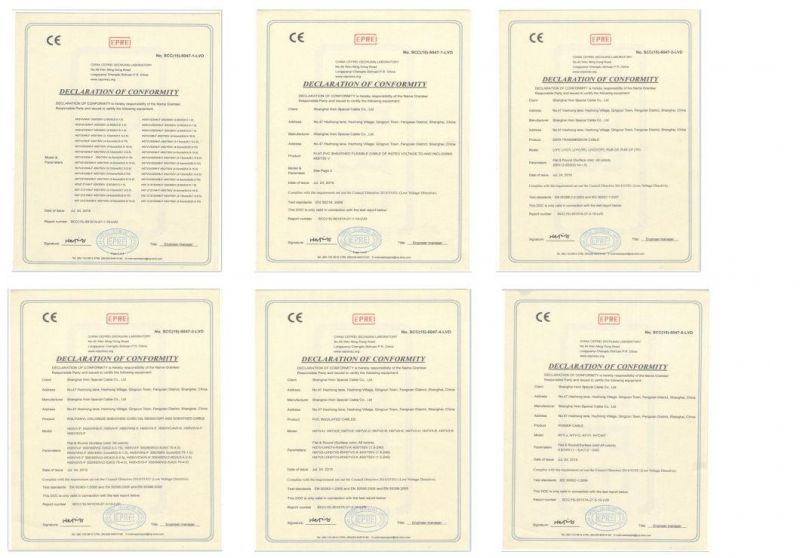

Certificate
