CATV Unidirectional Optical Receiver (WR1002JE)

HANGZHOU PREVAIL OPTOELECTRONIC EQUIPMENT CO., LTD.
  • Application：Communication, CATV
  • Type：Single-mode Fiber
  • Certification：CE, ISO9001
  • Receive Optical Power：-9 ~ +2dBm
  • Return Loss：> 45db
  • C/N：≥ 51db

Base Info

  • Model NO.：WR1002JE WR8602JE
  • C/CTB：≥ 67db
  • C/Cso：≥ 62db
  • Max Output Level：≥ 116dbuv
  • Output Return Loss：≥ 16db
  • Frequency Range：45 ~ 862,1003MHz
  • Transport Package：Netrual or According to Customer′s Request
  • Specification：outdoor type
  • Trademark：Prevail
  • Origin：China
  • Production Capacity：1000pcs,month

Description

Technical ParametersOptical  ParametersReceiving Optical PowerdBm-9 ~ +2Optical AGC Control Range dBm+2 ~ -9/-8/-7 (adjustable)Optical Return LossdB>45Optical Receiving Wavelengthnm1100 ~ 1600Optical Connector Type SC/APC or specified by the userFiber Type Single modeLink  PerformanceC/NdB≥ 51EQ 8dB, Output level 108 dBμV (FZ110)C/CTBdB≥ 67C/CSOdB≥ 62RF  ParametersFrequency RangeMHz45 ~862/1003Flatness in BanddB±0.75Rated Output LeveldBμV≥ 108 Max Output LeveldBμV≥ 112 (-9 ~ +2dBm Optical power receiving)≥ 116 (-7 ~ +2dBm Optical power receiving)Output Return LossdB≥16Output ImpedanceΩ75Electrical control EQ rangedB0~15Electrical control ATT rangedB0~15General CharacteristicsPower VoltageVA: AC(150~265)V   B: AC (35~90) VOperating Temperature  °C-40~60ConsumptionVA≤14Dimension mm 220(L)* 205(W)* 65(H)

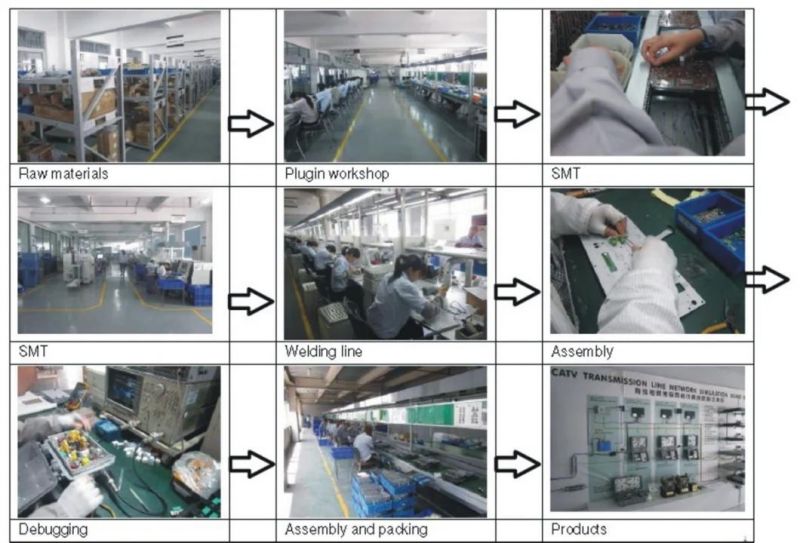

Product Process:
