• Model NO.：polyester AL magnet wire electrical AL wire ename
• Place of Origin：China (Mainland)
• Model Number：Enameled Aluminum Wire
• Insulation Material：Polyester, Polyurethane, Polyester-Imide
• Product Name：Polyester-Imide Enameled Al Wire
• Color：Natural Color, or According to Enamel Pew, Piw, Ei
• Diameter：Round: 0.15-5.33mm; Flat:a:1-10, B:2-16
• Appearance：Smooth, Free From Flaw
• Thermal Class：130,155,180,200,220,240
• Package：PT25-PT200
• Sample：Free
• Transport Package：Wooden Case
• Specification：0.15-5.33mm; flat: a: 1-10, b: 2-16
• Trademark：XINCHENG
• Origin：China
• HS Code：8544000000
• Production Capacity：20ton,Day

enameled aluminum wireTypeQ(ZY/XY)L-2/220Diameter5.330mmStandardMW35-ATest ItemUnitTechnical RequirementTest ResultAppearance bright and clean, Uniform  color,OkOverall Diametermm<5.3305.421Conductor Diametermm5.138-5.2255.160Thickness of  insulation filmmm>0.0940.109resistanceΩ/m<0.0013640.001300Elongation >15%36%winding test no crackingOkTensile Test 15% No crackingno crackingPeel twist insulation film Without losing adhesionOkJerk test insulation film Without losing adhesionOkResistance to heat shock°C240 °C insulation film no  crackingTensing 15% half an hour, no crackingResistance to  solvent Standard solvent "H" Pencil2H is okBreakdown VoltageKV> 3.7KV6.0,5.8,5.7,5.8,5.0package Meet the export standardsOkQuality Control  Result Ok

Advantage  AL Enameled Wire :
1.Enameled aluminum wire ,High resistance to heat shock, high temperature and good performace at softening breakdown, suitable for high-speed automated routing, able to be direct weld, with no pinhole, resistive to high frequency, wearing, refrigerants and electronics corona, high breakdown voltage
2. Compared with the copper enameled wire, enameled aluminum wire is easier to be winded, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
3. Due to the good insulating effect of aluminum film layer, it's heat-resistant temperature can be 20 degrees higher than that of the copper wire;
4. The greatest benefit of using aluminum is that it is 1/3 lighter than copper which significantly lower the production costs, secondly it can attach to the solids easily, and thirdly it can also reduce the freight and operation during transportation.


Different product specifications:

Enameled round aluminum wire Diameter(mm): 0.15-5.33 Temperature class:130,155,180,200,240	Enameled  flat aluminum wire Diameter(mm):a:1.0-10.0,b:2.0-16   Temperature class:130,155,180,200,240
Enameled round copper wire       Diameter(mm):0.1-5.0  Temperature class:130,155,180,200,220	Enameled  flat copper wire    Diameter(mm):a:0.8-5.6,b: 2.0-16 Temperature class:180,200,220
Non Woven Cloth/ Polyester Film covered wire     Diameter(mm):round:1.7-8.0,flat: a:1-8,b:3-25   Temperature class:220	Polyimide Film Wrapped wire    Diameter(mm):round:1.7-8.0,flat: a:1.0-8,b:3-25   Temperature class:240
Film Wrapped enameled wire  Diameter(mm): round:1.7-5.0 a:0.8-5.6,b:2-16   Temperature class:220	NOMEX Paper covered wire     Diameter(mm):round:1.7-8.0,flat: a:1-10,b:3-25   Temperature class:220
Fiberglass Film Wrapped wire   Diameter(mm):round:1.7-6.0, flat: a:0.3-5.6,b:2-16   Temperature class: 220	Kraft Paper Wrapped wire Diameter(mm):round:1.7-8.0 a:1-8,b:3-25   Temperature class:240



Application
♦  Oil-immersed transformer windings, Dry-type transformer, High temperature transformer,
♦ Motor, transformer, generator, welding machine; Sealed motor, Power tools motor, Auto alternators motor, Magnet coil, High power motor, household electro motors and micro-motors;
♦  Medium and large electrical motor and transformer windings;
♦  Power substations, rectifiers, f urnace transformer oil-immersed transformer coil winding;
♦  Lifting electromagnet, reactors and other low-voltage and high current electromagnetic winding;
♦  Used in aerospace, submersible motor and high voltage coil, wind turbines, micro-electronics and so on.
Windings with light weight, high conductivity, good heat resistance; Winding used for  high frequency signal transmission
Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electrometers.


FAQ
[Q]: What's your mainly products?
Our company are researching and developing, producing and selling as one of the professional all kinds of enameled wire company in China. These wires are used in transformers, motors, electric tools, winding coils etc. All the products adopts IEC, GB, JIS, NEMA standard.
Our mainly products are :
Rectangular Enameled wire/ Round Enameled wire/Ultra Fine Rectangular Enameled wire/NOMEX paper wrapped wire/
Kraft paper wrapped wire/ Polyester film or carton covered wire/Fiber glass wrapped enameled wire/ Electrical rectangular wire/Macromolecule enameled wire, etc.
Our CERTIFICATE ADN STANDARD:
Manufacture standard: IEC Standard
ISO9001:2000 Quality Management System
Enameled Copper Clad Aluminum wire (ECCA): ROHS Authentication
Enameled wire (ECCA ,ECU ,EAL):SGS Authentication

[Q]: How about your company's annual production capacity?
        A : Our Company's annual production is about 8,000 tons.
[Q]:What's your company 's  product scope?
        A :  We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
[Q]: What's the temperature-resist grade of your enameled aluminum wire?
        A :  We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
[Q]:  What is specifications of enameled aluminum wire your company can produce?
        A :  Gauge of enameled aluminum wire:

• Enameled round aluminum wire: 0.15-5.33mm
• Enameled flat aluminum wire: a: 1-10mm, b: 2-16mm

[Q]:  Can you offer Round Enameled wire with PEW, C200?
        A :  Yes, we can.
 [Q]:  Could you provide the free samples?
        A : Yes, We are honored to offer you samples, We could provide the free samples within 0.5kg. You only need undertake the express charges.
 [Q]: What's the price of your enameled aluminum wire?


Packaging & Delivery
Packaging Details:

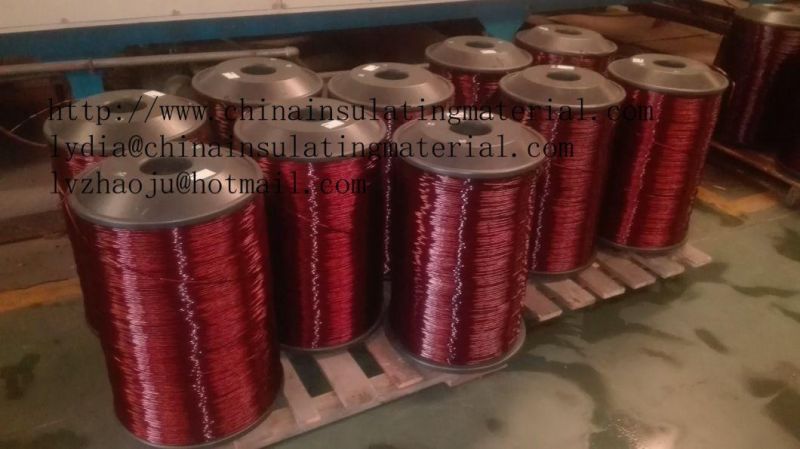

Inner packing: Plastic Spool: PT-4,PT-10,PT-15,PT-25, PT-90,PT-200,,PT-250,PT-270 and Export standard carton according to your wire diameters. One 20 feet container can contain about 15-18.5 tons EAL
Outer packing : wooden case  and wooden pallet or according customers' special requirement
Delivery Time: 7-14 days for one 20 feet container
