• Model NO.：GYTC8S
• Core：2-288
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Efon
• Sheath Material：HDPE,Lszh Sheath,Flame Retardant Sheath,Anti-Roden
• Cable Structure：Overhead Multi-Loose Tube
• Fiber Count：2-288 Cores
• Fiber Options：Itu G652D ,G657A,Om1,Om2,Om3,Om4
• Applications：Overhead Aerial Install
• Material of Jacket：LSZH,PE Sheath,Flame Retardant Sheath,Anti-Rodent
• Installation Tensile：7000n
• Armored：Aluminium Tape,Steel Tape
• Strength Member：Steel Wire
• Bend Radius (Under Installation)：20 X External Diameter of Cable
• Certificate：ISO9001 TCL RoHS

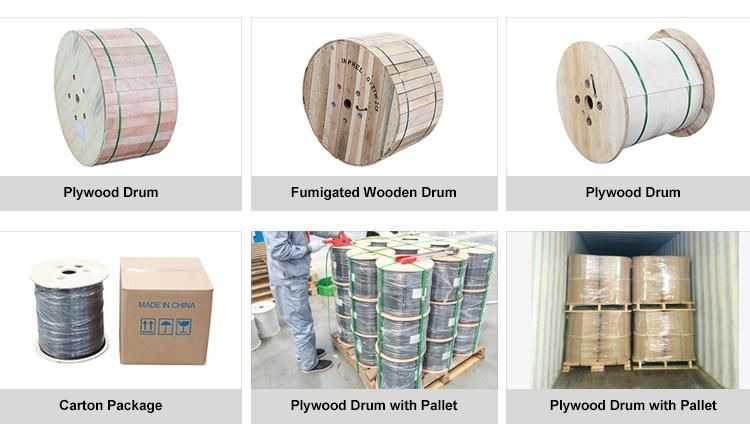

• Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
• Specification：CE
• Trademark：OEM
• Origin：China
• HS Code：85447000
• Production Capacity：300km,Week

Fiber Count

Nominal
Diameter

(mm)

Nominal
Weight

(kg/km)

Allowable Tensile Load

(N)

Allowable Crush Resistance

(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~12

7.6*15.6

142

7000

4000

1000

300

>12

Available upon customer's request

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber
Per Tube

Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~30

10.0*18.0

183

6

5

7000

4000

1000

300

32~48

10.7*18.8

206

6

6

7000

4000

1000

300

50~72

11.6*19.4

226

12

5

7000

4000

1000

300

74~96

13.0*20.0

256

12

6

7000

4000

1000

300

>98

Available upon customer's request

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber
Per Tube

Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~30

9.2*17.2

150

6

5

7000

3000

1000

300

32~48

10.2*18.2

172

8

6

7000

3000

1000

300

50~72

11.1*19.1

177

12

6

7000

3000

1000

300

74~96

12.4*20.4

201

12

8

7000

3000

1000

300

>98

Available upon customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales
people for more detailed information.

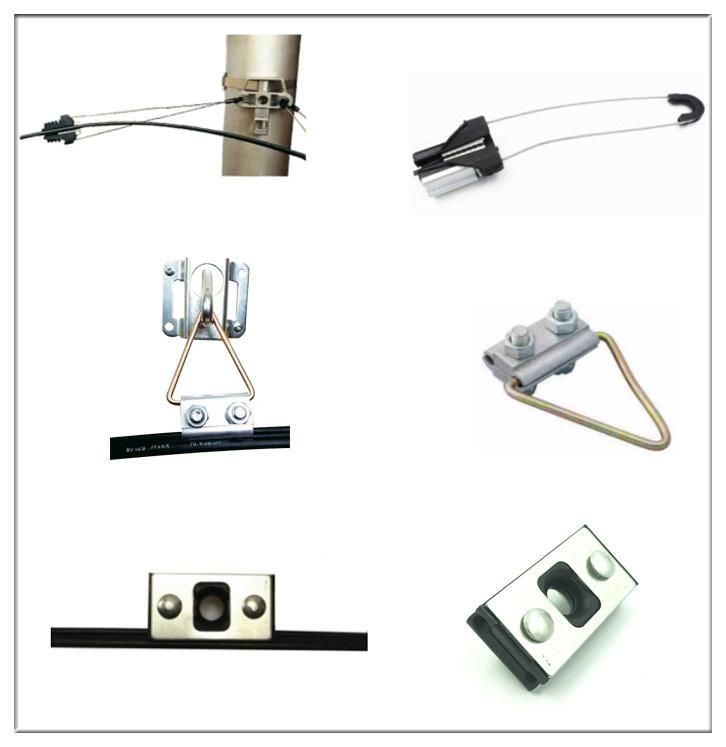

  You May Need  : Figure 8 cable fitting
