Llt Braid Industry Communication Cable Used for Industrial Bus, Robot and Wind Power Systems
Shenzhen Lilutong Technology Industry Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Fieldbus
- Conductor Material：Copper
- Sheath Material：Polyvinyl Chloride (PVC) Compound
- Insulation Material：Foam PE
Base Info
- Model NO.：Profibus-DP
- Material Shape：Round Wire
- Range of Application：Process Application
- Certification：ISO9001, CE, UL, RoHS, VDE
- Brand：Llt
- Screen：Aluminium Foil
- Braid：Tinned Copper Wire
- Inner Sheath：Filler Material
- Place of Origin：Shenzhen, China
- Transport Package：Wooden Roller, Plastic Spool.
- Specification：1*2*22 AWG,1
- Trademark：LLT
- Origin：China
- HS Code：854449
- Production Capacity：100000,Day
Description
Profibus-DP1×2×22AWG/7 PUR 150ohm 0.11 8.0

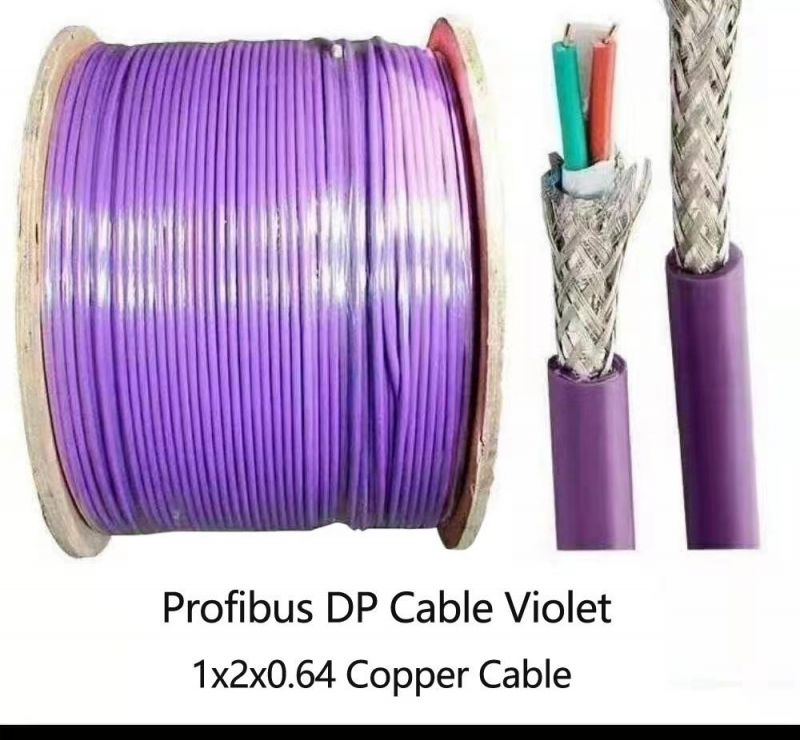

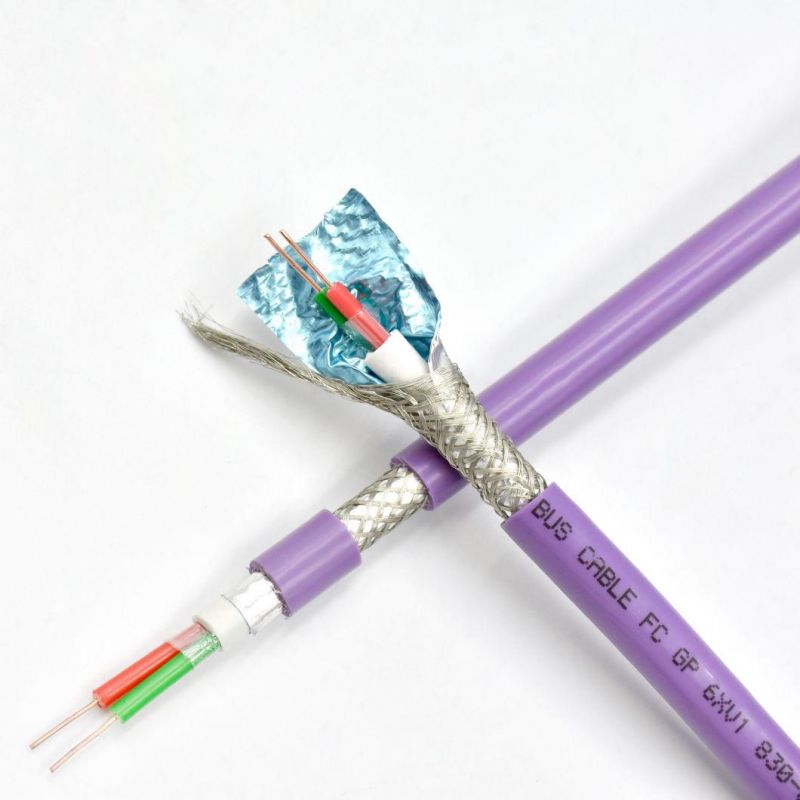

3. Product Description
Conductor : Annealed copper conductor, Class 1, 0.64mm²(22AWG)
Insulation: made by foaming PE, core color: red, green; two cores are twisted in a pair;
Middle layer sheath: made of high flame retardant material;
Screen: Aluminium foil
Overall: Tinned copper wire braiding
Outer protective layer: according to the design of different places, can choose PVC, LSZH, PUR and other bonded system, flame retardant, appearance purple (similar to RAL4001):
Flame retardant performance: in line with VDE 0472 standard; Class B test (IEC332.1);
Impedance :150 Ω ±15 2~20MHZ;
DC resistance :57.5 Ω /KM;
Rated temperature: PVC:-20ºC~105ºC PUR/LSZH :-30ºC~90ºC
4.Certification
5.Company Introduce
Shenzhen LiLuTong Technology Industry Co.,LTD is a professional manufacturer for secuirty and fire fighting cables.Our company was established in 2001, and we have many years of history in launching, promoting, develping for security products, especially LPCB fire resistant cable, UL fire alarm cable, VDE power cable, UL flexible cable, Communication Cable, Control Cable and Single core fire resistant cable.We are located in Shenzhen,which convenient transportation access.
As an international manufacuturer, LLT imports advanced technology, trains a great number of high-quality, international, and conscientious personnel. LLT's skilled production team follows the standardized manufacturing process which is ISO9001:2000 Quality system strictly for making sure every procedure is out of mistakes.LLT products are approved by British Standard LPCB, IEC, CCC, CE, FCC and SGS,VDE,UL,CQC etc. and compliant with the RoHS Standard.
We have ever exported to many countries and areas in the world such as HONGKONG, UAE,US,UK,ITALY,GERMANY,VIETNAM,CANADA,NEW ZEALAND etc. With high quality and outstanding customer service, our cables are greatly appreciated in a variety of different markets on subway, Tunnel, high-rise buildings,public places, oil depot and other major projects.
We hope to cooperate with more customers for mutual development and benefits. We enthusiastically welcome and very grateful for your patronage, and will, as always friends with the vast numbers of merchants to sincerely cooperate in the development of an accomplice, create brilliant!
3. Product Description
Conductor : Annealed copper conductor, Class 1, 0.64mm²(22AWG)
Insulation: made by foaming PE, core color: red, green; two cores are twisted in a pair;
Middle layer sheath: made of high flame retardant material;
Screen: Aluminium foil
Overall: Tinned copper wire braiding
Outer protective layer: according to the design of different places, can choose PVC, LSZH, PUR and other bonded system, flame retardant, appearance purple (similar to RAL4001):
Flame retardant performance: in line with VDE 0472 standard; Class B test (IEC332.1);
Impedance :150 Ω ±15 2~20MHZ;
DC resistance :57.5 Ω /KM;
Rated temperature: PVC:-20ºC~105ºC PUR/LSZH :-30ºC~90ºC
