• Model NO.：GYTA53 Optic Fiber Cable
• Core：Double Core
• Certification：RoHS, ISO9001, Reach
• Brand：OEM or Tw-Scie
• Sheath Material：LSZH,HDPE,MDPE
• Installation Style：Duct & Direct Buried
• Brand Name of Fiber：Corning ,Yofc,Draka, Fujikura...as Your Requiremen
• Loose Tube Material：PBT
• Waterblocking Material：Water Blocking Tape or Filling Compound
• Outer Sheath Material：MDPE , HDPE ,Lszh
• Outer Sheath Color：Black
• First Armour Material：Corrugated Steel Tape
• Second Armour Material：Corrugated Aluminium Tape
• Central Stranding Member：Steel Wire or FRP

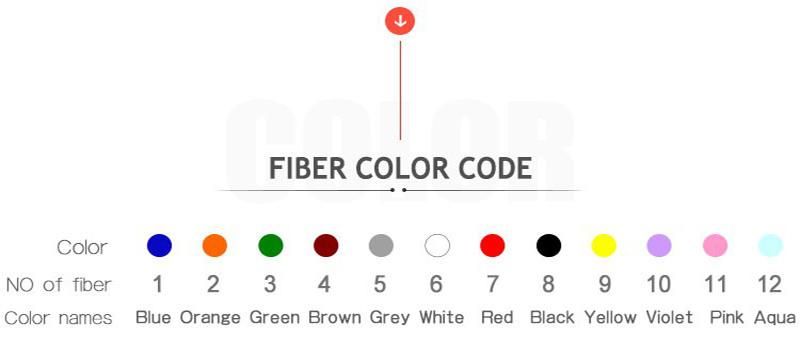

• Color of Fiber and Loose Tube：Blue,Orange,Green,Brown,Grey,White,Red,Black,Yello
• Transport Package：Wooden Drum
• Specification：ISO, ROHS, REACH, SGS
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, China
• HS Code：8544700000
• Production Capacity：200km,Day

Dimension and PropertiesGeneral propertiesUnitNominal valueFiber count (9/125)PC81224Max. No of loose tube/Fillers PC4/12/34/1Fiber No. per tubePC866Central strength membermaterialSteel wireODmm13mm±0.2Armour 1materialCorrugated steel tape with plasticArmour 2materialAluminium tapeWater blocking materialmaterialWater blocking tapeLoose tubeDiametermm1.6±0.2Material PBTInner sheathThicknessmm1.0±0.2Material PEOuter sheathThicknessmm1.8±0.2Material PEMax. allowable pulling forceN1000/3000Crush resistanceN/100mm1000/3000  Working conditionsTemperature rangeTransport and storage:- 30ºC to +60ºCMin Bending Radius                  Installation:-30ºC to +60ºCInstallation: 20 x ODOperation:-40ºC to +60ºC Operation: 10 x ODNote: 1. the nominal outer diameter may vary by ± 5%.            2. The nominal cable weight may vary by ±10%.



G652D Specification:

Category
Description
Specifications
Before cabling
After cablingOptical
Specifications
Attenuation @1310 nm≤0.34 dB/km (max.)≤0.36 dB/km (max.)
Attenuation @1550 nm≤0.20 dB/km (max.)≤0.22 dB/km (max.)
Attenuation @1625 nm≤0.23dB/km≤ 0.25 dB/km
Zero Dispersion Wavelength
1300~1324 nm
Zero Dispersion Slope≤ 0.090 ps/nm2·kmPMD Link value (M=20cables Q=0.01% )
maximum PMDQ
0.2 ps/√km
Cable Cutoff Wavelength (λcc)≤1260 nmMacro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB
Mode Field Diameter@1310 nm
9.2±0.4μm@1550 nm10.4±0.5μm

Dimensional
Specifications
Cladding Diameter
125 ±0.7μm
Core/clad concentricity error≤0.5μm
Cladding Non-Circularity≤1.0%Mechanical
Specifications
Proof stress
≥0.69Gpa
  G655 Specification:

Description
Specifications
Before cabling
After cabling
Attenuation @1550 nm≤0.20 dB/km (max.)≤0.22 dB/km (max.)
Attenuation @1625 nm≤0.23dB/km≤ 0.24 dB/km
Zero Dispersion Wavelength
≤1520 nm
Zero Dispersion Slope≤ 0.084 ps/nm2·km PMD Link value (M=20cables Q=0.01% )
maximum PMDQ
≤0.08 ps/√km
Cable Cutoff Wavelength (λcc)≤1450 nm Macro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB Mode Field Diameter
 @1550 nm9.6±0.5μm

Dimensional
Specifications
Cladding Diameter
124.8 ±0.7μm
Core/clad concentricity error≤0.6μm
Cladding Non-Circularity≤1.0%Mechanical
Specifications
Proof stress   off line≥9.0 N
≥1.0 %
≥100 kpsi

Reference:
The cable which we offered are designed, manufactured and tested according to international standards as follows:

IEC 60794-1-1	Optical fiber cables. Part 1: Generic specification
IEC 60794-1-2	Generic specification- basic optical cable test procedures
IEC 60793-3	Outer cables- sectional specification
IEC 60794-3-20	Outdoor cables- family specification for optical self-supporting aerial telecommunication cables
EIA/TIA 598 B	Color code of fiber optic cables
ITU-T G.650	Definition and test methods for the relevant parameters of single-mode fibers
ITU-T G.652	Characteristics of a single-mode optical fiber cable
ITU-T G.655	Characteristics of a non-zero dispersion-shifted single-mode optical fiber and cable
IEC 60332 Part 1	Fire test on single cables
IEC 60332 Part 3	Fire test on bundled cables
IEC 60754 Part 1&2	Corrosivity of gases (halogen free)
IEC 60331-11/25	Circuit integrity with flaming(90 mins flame application time and 15 mins cooling time
IEC 61034-2	Measure to smoke density(>60% transmittance )
ASTM D 2863	Limiting oxygen and temperature index (Oxygen index>35 and temperature index>260)

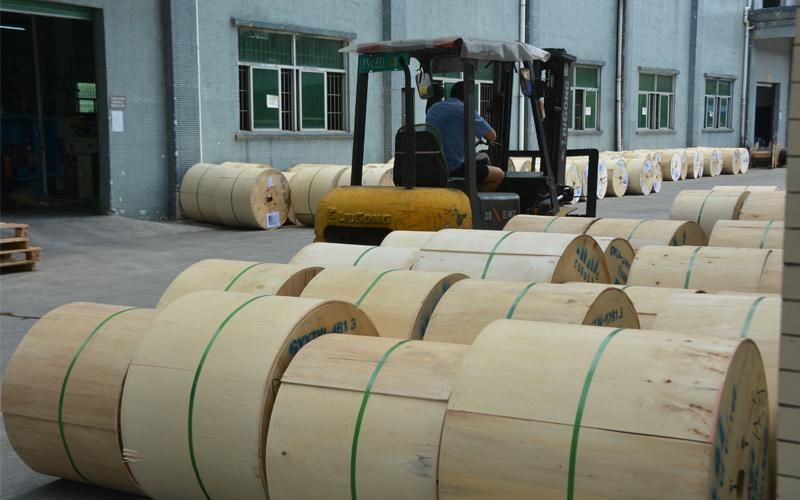

PACKING AND DRUM:
Our cables are packed in carton, coiled on Bakelite & wooden reel. During transportation, right tool should be used to avoid damaging the package, and handle carefully. Cables should be protected from moisture; Cables should be kept away from high temperature condition and spark; Cables should be protected from over bending and crushing; Cables should be protected from mechanical damage.
