Factory Prices HDPE 2-24 Core Fig8 Optical Fiber Cable (GYXTC8S)
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Sensor, Medicine, Probe, Glass Fiber
- Type：Single More or Multimode
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：GYXTC8S fiber optical cable
- Core：Multicore
- Certification：RoHS, ISO9001, Reach
- Brand：OEM
- Sheath Material：LSZH, HDPE, MDPE
- Jacket Material：PE
- Armored：Steel Armored
- Installation Style：Aerial
- Brand Name of Fiber：Corning, Yofc, Draka, Fujikura...as Your Requiremen
- Fiber Counts：2-288 Core
- Outer Sheath Material：MDPE , HDPE , Lszh
- Standard Length for Delivery：2-5 Km
- Armour Material：Corrugated Steel Tape
- Stranding Member：Steel Wire or FRP
- Steel Wire：1.4mm or 1.0,7-3.0mm, 1.2,7-3.6mm
- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH ISO
- Trademark：TW-SCIE or OEM
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：8544700000
- Production Capacity：200km,Day
Description
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| (+20ºC) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelengthλcc | ≤1260nm |
Packaging & Delivery:
Packaging Details
wooden drum or as customized.
Delivery Time
According to the order quantity,usually within 1 week
Description:
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.APL Moisture barrier
5.Stranded wires as the self-supporting messenger
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· 100% cable core filling
· PSP enhancing moisture-proof
Standards:
GYTC8YA/S cable complies with Standard YD/Y 1155-2001 as well as IEC 60794-1
Storage/Operating Temperature: -40°C to + 70°C

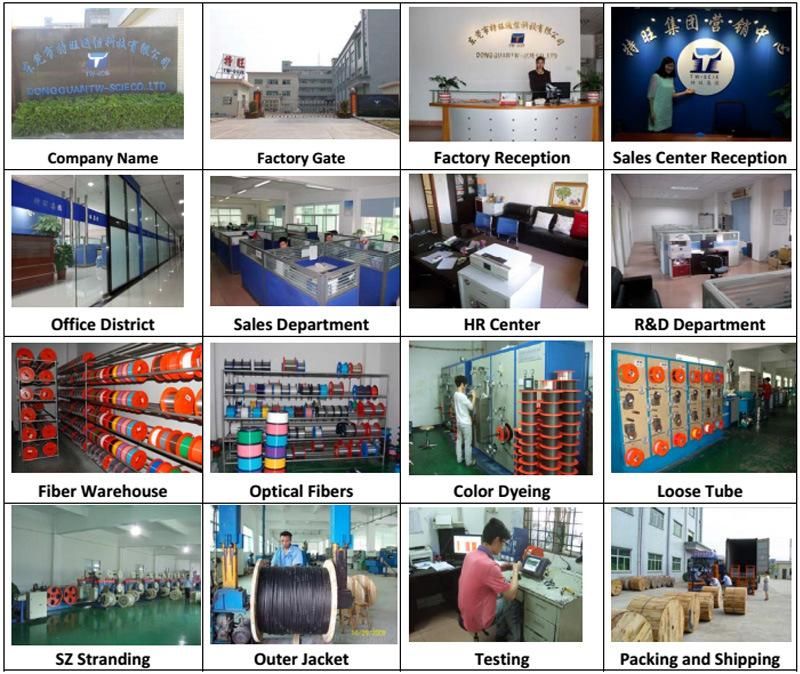

Our Company:
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own importers and exporters rights. Since its founding, high-quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most completed product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
Certificate:
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years' history.
2.What is your fiber brand?
Corning, YOFC, FiberHome, etc
3.Can you accept the small order?
Yes, small order is available.We support new project of our customers as we know business is always
from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have?
ISO9001, SGS, UL, RoHS.
6.What is your delivery time?
Usually within 3-10 working days
7.What is your payment way?
T/T, L/C, Western Union and Paypal.
8.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

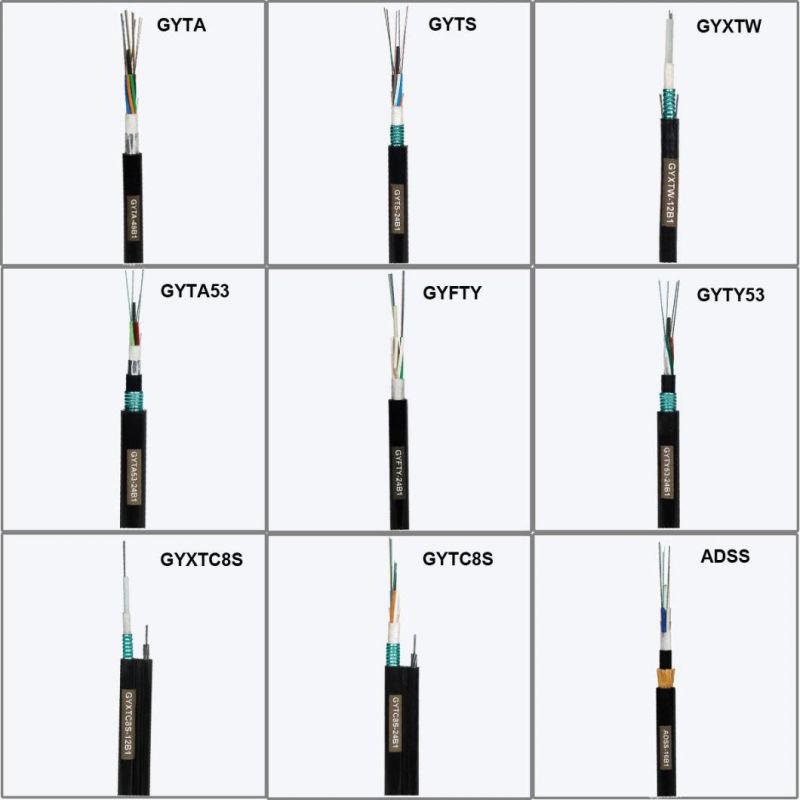

More Products:
More details, you can send me an inquiry, I'll give you a quick reply soon.
