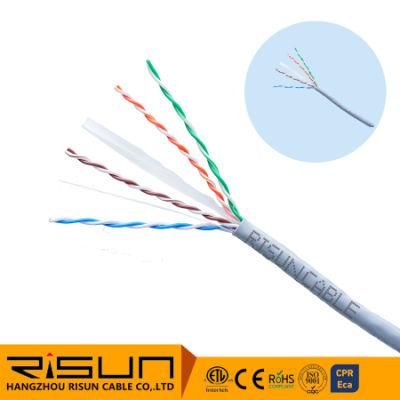

Twisted Pair Category 6 FTP Indoor Solid Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE,LSZH
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：ftp cat6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CPR,ETL,SGS
- Model：FTP CAT6
- Brand：Risun or OEM
- Color：AA Request
- Insulation：HDPE
- Shield：with Aluminium Foil
- Drain Wire：0.4mm Tinned Copper
- Nom. Thick：0.6mm
- Pairs：4pairs
- O.D：7.40mm
- Transport Package：305m,Pull Box, 2boxes,CTN
- Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
- Trademark：Risun or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Mont
Description
Attenuation @68°F(20ºC) Frequency (MHz) RL(≥dB) Attenuation (≤dB/100m) Next (≥dB/100m) Psnext (≥dB/100m) Elfext (≥dB/100m) Pselfext (≥dB/100m) 1 20 1.9 74.3 72.3 67.8 64.8 4 23 3.7 65.3 63.3 55.8 57.7 10 25 5.9 59.3 57.3 47.8 44.8 16 25 7.5 56.3 54.3 43.7 40.7 20 25 8.4 54.3 52.8 41.8 38.7 31.25 23.6 10.6 51.9 49.9 37.9 34.9 62.5 21.5 15.4 47.4 45.4 31.9 28.8 100 20.1 19.8 44.3 42.3 27.8 24.8 155 18.8 25.1 41.1 39.4 23.9 20.9 200 18 29 39.8 37.8 21.8 18.7 250 17.3 32.8 38.3 36.3 19.8 16.8 350 16.3 39.8 36.1 34.1 16.9 13.9 400 15.9 43 35.3 33.7 15.7 12.7 450 15.5 46.3 34.5 32.5 14.7 11.7 500 15.2 48.9 33.8 31.8 13.8 10.8 550 14.9 51.8 33.2 31.2 12.9 9.9
Application & Certificates:
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
Application & Certificates:

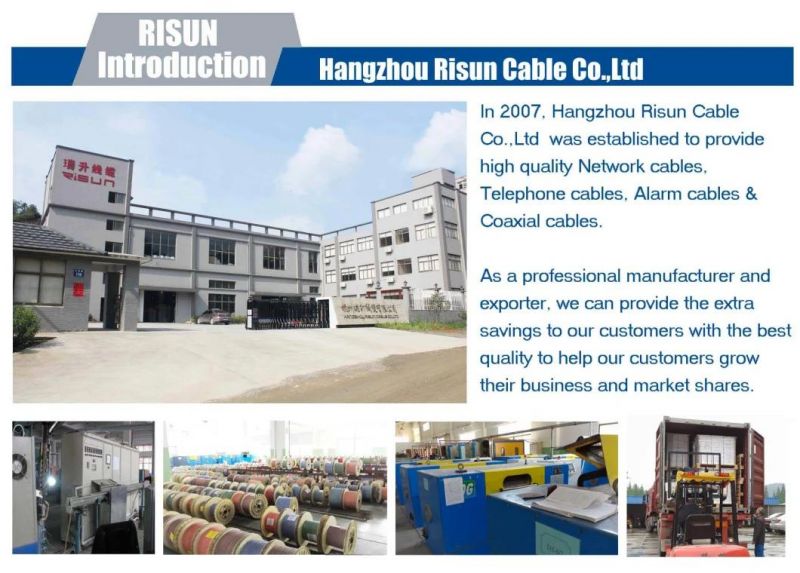

Company Introduction
Production line:

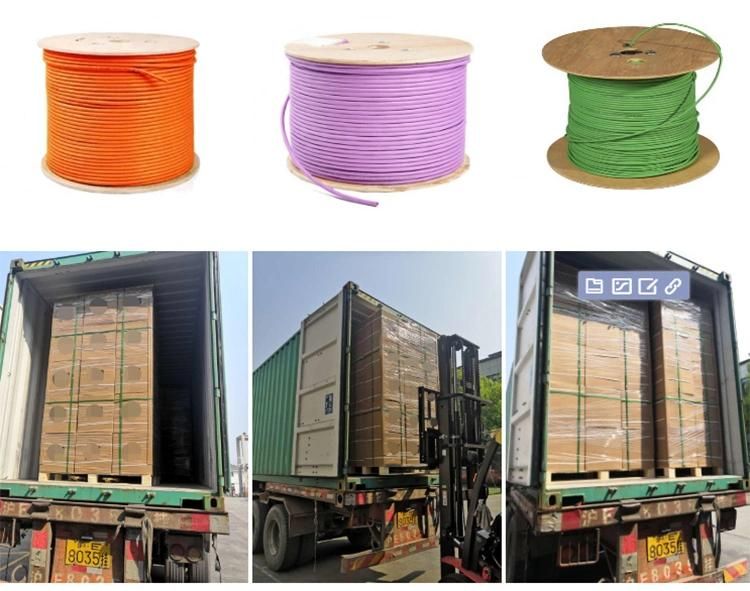

Packing and Shipping:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
