H1z2z2-K High Quality Customized XLPE Insulated Single Core PV Cable Wire Solar Cable 6mm Control Electric Wire Coaxial Waterproof Rubber Cable Made in China
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：solar
- Wire Core Material：Tinned Copper
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Yz,Yzw,Yc,Ycw,H05rr-F,H07rn-F,H05rn-F
- Brand：Fengda
- OEM：Yes
- ODM：Yes
- Colors：Assorted Upon Request
- Model Number：One
- Feature：Cold Resistance
- Other Name：H1z2z2-K
- Soft Cable：Manguer Cable
- Code Name：PV1-F
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：Copper
- Trademark：Fengda
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description

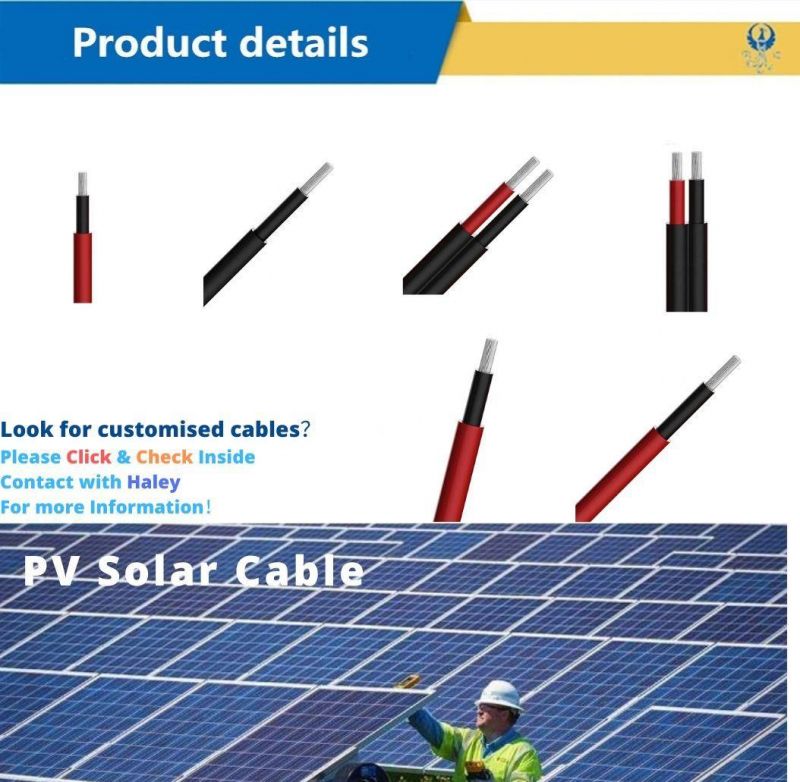

Solar Cable
H1Z2Z2-K | PV1-F
Conductor: Tinned copper, elecreical property & Structure in accordance with EN60228 Class 5.Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material.
Outer sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material.
Colour: Prior colour black,or as per customer's request.H1Z2Z2-K 35mm2 Dc Solar PV Cable EN50618.
| Conductor | Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5 |
| Insulation | Polyolefin Copolymer electron-beam coss-linked |
| Sheath Jacket | Polyolefin Copolymer electron-beam coss-linked |
| Nominal Voltage | Uo/U=1000VAC, 1500VDC |
| Test Voltage | 6500V, 50Hz, 5Min |
| Temperature Rating | -40°C-120°C ,More than 25 Years (EN 50618) |
| Fire Performance | IEC 60332-1 |
| Smoke Emission | IEC61034, EN 50286-2 |
| Low Fire Load | DIN 51 900 |
| Certification | EN 50618 Standard |
Product parameters
| Cross section(mm2) | Conductor Construction | Outer(mm) | Resistance Max. | Current Carring Capacity |
| 1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
| 1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
| 1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
| 1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
| 1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
| 1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
| 1*25 | 361/0.3 | 12.00 | 0.795 | 176 |
| 1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
| 1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
| 1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
| 1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
| 1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
| Cross section(mm2) | Conductor Construction | Outer(mm) | Resistance Max. | Current Carring Capacity |
| 2 x 1.5 | 30/0.25 | 8.3 ± 0.2 | 13.30 | 30 |
| 2 x 2.5 | 50/0.25 | 9.2 ± 0.2 | 7.98 | 41 |
| 2 x 4 | 56/0.3 | 12.0 ± 0.2 | 4.75 | 50 |
| 2 x 6 | 84/0.3 | 13.5 ± 0.2 | 3.39 | 70 |
| 2 x 10 | 142/0.3 | 17.6 ± 0.2 | 1.95 | 98 |
| 2 x 16 | 228/0.3 | 19.8 ± 0.2 | 1.24 | 132 |
FAQ
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
Q: How to ship the order? Is it Safe?
A: Heavy goods are transported by container, sea or air to the designated port. For small packages, recommend sending by express, such as DHL, FEDEX, UPS, TNT, EMS, ect which are door to door service.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: What is your working time?
A: From 8AM to 8PM Monday noon to Sunday noon. Please feel free to contact us. Our sales staff is on a rotation basis. The customer service is available 24 hours a day, checking customer emails, responding to customer questions and messages, and providing the most convenient service for each customer.
