Manufacture High Performance Competitive Price 50 Ohm Alsr300 Low Loss Coaxial Cable for Communication
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Alsr300
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：ALSR300
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Alsr300
- Brand：Elesun
- Material of Inner Conductor：Bc (Bare Copper)
- Structure of Inner Conductor：1,1.78mm
- Material of Insulation：Fpe(Foam PE)
- Diameter of Insulation：4.83mm
- 1st Shielding：Aluminum Tape
- Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding)：128*0.12mm
- Material of Jacket：PE, PVC, LSZH, Fr-PVC, Fr-LSZH
- Diameter of Jacket：7.62mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：2000V
- Swr(0-2500MHz)：≤1.2
- Min.Bending Radius：22.5mm
- Transport Package：150m,Roll,CTN
- Specification：38*38*30
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
Description
ALSR300 low loss coaxial cable specificationsMaterial of Inner Conductor BC (Bare Copper) Structure of Inner Conductor 1/1.78mm Material of Insulation FPE(Foam PE) Diameter of Insulation 4.83mm 1st Shielding Aluminum Tape Material of Braiding(2nd Shielding) TC (Tinned Copper) Structure of Braiding(2nd Shielding) 128*0.12mm Material of Jacket PE, PVC, ,FR-PVC,FR-LSZH Diameter of Jacket 7.62mm Working temp -40ºC/80ºC Impedance 50Ω±2 Voltage 2000V SWR(0-2500MHz) ≤1.2 Min.Bending Radius 22.5mm

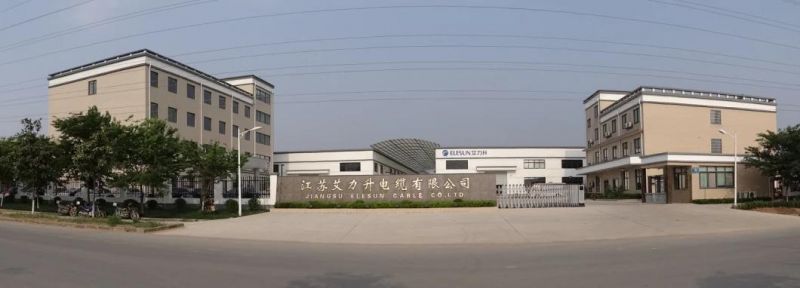

Jiangsu Elesun Cable Co., Ltd. is a national high-tech enterprise, mainly committed to the research and development and manufacturing of high and low temperature coaxial cable, signal control cable and power cable, with an annual production capacity with one billion RMB.The company has absorbed and introduced advanced management experience in Western Europe, and introduced first-class production and testing equipment.The company was established in July 2000, has more than 260 employees, the company pays special attention to the introduction of talents, strong technical force, formed a set of unique research and development, production, marketing mode.From the establishment of the company, although just 20 years,Elesun Cable has experienced leapfrog development, in the domestic and foreign communication market enjoys a high visibility.
Jiangsu Elesun Cable Co., Ltd. is a national high-tech enterprise, mainly committed to the research and development and manufacturing of high and low temperature coaxial cable, signal control cable and power cable, with an annual production capacity with one billion RMB.The company has absorbed and introduced advanced management experience in Western Europe, and introduced first-class production and testing equipment.The company was established in July 2000, has more than 260 employees, the company pays special attention to the introduction of talents, strong technical force, formed a set of unique research and development, production, marketing mode.From the establishment of the company, although just 20 years,Elesun Cable has experienced leapfrog development, in the domestic and foreign communication market enjoys a high visibility.
