• Model NO.：LX-50-047
• Wire Core Material：Sccs
• Certification：CE, ISO, RoHS, CCC, UL
• Model：Lx-50-047
• Brand：Elesun
• Material of Inner Conductor：Sc, Sccs
• Structure of Inner Conducture：1,0.54mm
• Diameter of Insulation：1.68mm
• Material of Insulation：PTFE
• Wire Braid：80*0.10mm
• Material of Braid：Tinned Copper,Sn
• Size of Jacket with FEP：2.65mm
• Material of Jacket：FEP
• Impedance：50 Ohm
• Capacitance：97+,-5 PF,M
• Transport Package：1000m,Reel,CTN
• Specification：29*29*26cm
• Trademark：ELESUN
• Origin：China
• HS Code：8544200000
• Production Capacity：10000m,Day

Basic Info.

Model NO. LX-50-047 Wire Core Material Sccs Certification CE, ISO, RoHS, CCC, UL Model Lx-50-047 Brand Elesun Material of Inner Conductor Sc, Sccs Structure of Inner Conducture 1/0.54mm Diameter of Insulation 1.68mm Material of Insulation PTFE Wire Braid 80*0.10mm Material of Braid Tinned Copper/Sn Size of Jacket with FEP 2.65mm Material of Jacket FEP Impedance 50 Ohm Capacitance 97+/-5 PF/M Transport Package 1000m/Reel/CTN Specification 29*29*26cm Trademark ELESUN Origin China HS Code 8544200000 Production Capacity 10000m/Day

Product Description

Manufacture high temperature semi-flexible coaxial cable LX-50-047 for antenna system

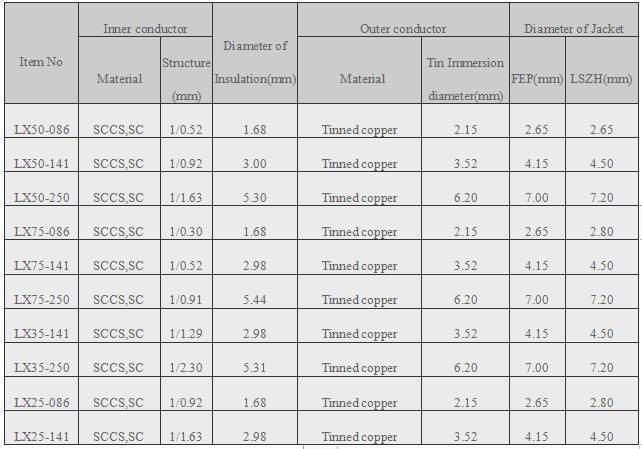

Description



.Conductor: SCCS, SC

.Dielectric :PTFE

.Shielding: Tin Immersion

.Jacket:FEP(light brown,blue,red,white,black),LSZH



Typical Application:

Handy-form cable can be used in military, mining, and medical equipment for transmission of signals, if high temperature is required.



Best Feature:

LX series handy-form coaxial cable is semi-flexible, the conductor is SCCS(silver copper clad steel) or SC(silver copper),the dielectric is PTFE, and the shielding is Tin Immersion, as for the jacket, we have FEP and LSZH for your choice.

The attenuation is low even at high frequency (HF),75ohm,50 ohm, 35ohm, 25ohm impedance is available for this type of cable.



Custom Service:

We also supply handy-form coaxial cable assembly with N connector, TNC connectors, BNC connectors
