Aluminum Alloy Overhead AAAC Conductor
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminium Alloy
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CCC, BV
- Brand：Rmjt
- Voltage：High Voltage
- Structure：7, 19, 37, 61, 91
- Product Name：AAAC Conductor
- Usage：Power Transimision
- OEM or ODM：Yes
- Transport Package：Wooden Drum
- Specification：16mm2, 25mm2, 35mm2...1000mm2
- Trademark：RMJT
- Origin：China
- HS Code：7614900000
- Production Capacity：10000000meters,Year
Description
AreaStranding Approx. Dia. Weight Nominal Breaking Load D.C. Resistance at 20ºC Standard Length Nominal Actual AWG or MCM mm2 mm mm kg/km kN ohm/km m±5% 6 13.30 7/1.554 4.67 37 4.22 2.5199 3500 4 21.15 1/1.961 5.89 58 6.71 1.5824 3000 2 33.63 7/2.474 7.42 93 10.68 0.9942 2500 1/0 53.48 7/3.119 9.36 148 16.97 0.6256 2000 2/0 67.42 7/3.503 10.51 186 20.52 0.4959 3500 3/0 85.03 7/3.932 11.80 234 25.86 0.3936 3000 4/0 107.23 7/4.417 13.26 296 32.63 0.3119 2000 250 126.66 19/2.913 14.57 349 38.93 0.2642 2000 300 152.10 19/63.193 15.97 419 46.77 0.2199 3000 350 177.35 19/3.447 17.24 489 52.25 0.1887 3000 400 202.71 19/3.686 18.43 559 59.74 0.1650 2500 450 228.00 19/3.909 19.55 629 67.19 0.1467 2000 500 253.35 19/4.120 20.60 698 74.64 0.1321 2000 550 278.60 37/3.096 21.67 768 83.80 0.1202 2000 600 303.80 37/3.233 22.63 838 91.38 0.1102 2000 650 329.25 37/3.366 23.56 908 97.94 0.1016 2000 700 354.55 37/3.493 24.45 978 102.20 0.0944 3500 750 380.20 37/3.617 25.32 1049 109.60 0.0880 3000 800 405.15 37/3.734 26.14 1117 116.80 0.0826 3000 900 456.16 37/3.962 27.73 1258 131.50 0.0733 3000 1000 506.71 37/4.176 26.23 1300 146.10 0.0660 2500 Overall
Diameter Nominal
Breaking Load Nominal DC
Resistance at 20ºC Standard Weight mm2 No Φ mm kN Ohm/km kg/km ASTER 22 22 7 2 6 7.15 1.4989 60 ASTER 34.4 34.4 7 2.5 7.5 11.17 0.9593 93.8 ASTER 54.6 54.6 7 3.15 9.45 17.73 0.6042 148.9 ASTER 75.5 75.5 19 2.25 11.3 24.55 0.4388 207.4 ASTER 117 117 19 2.8 14 38.02 0.2833 321.2 ASTER 148 148.1 19 3.15 15.8 48.12 0.2239 406.5 ASTER 181.6 181.6 37 2.5 17.5 59.03 0.1831 500.3 ASTER 228 227.8 37 2.8 19.6 74.04 0.146 627.6 ASTER 288 288.3 37 3.15 22.1 93.71 0.1154 794.3 ASTER 366 366.2 37 3.55 24.9 115.36 0.0908 1008.9 ASTER 570 570.2 61 3.45 31.1 185.33 0.0585 1576 ASTER 851 850.7 91 3.45 38 276.47 0.0394 2360.7 ASTER 1144 1143.5 91 4 44 360.22 0.0293 3173.4 ASTER 1600 1595.9 127 4 52 502.72 0.021 4427.5

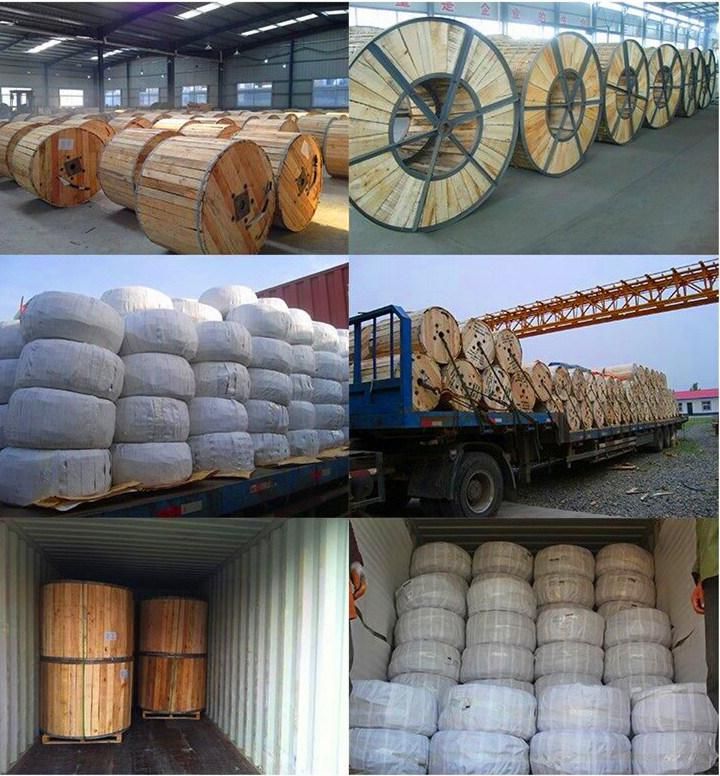

4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!

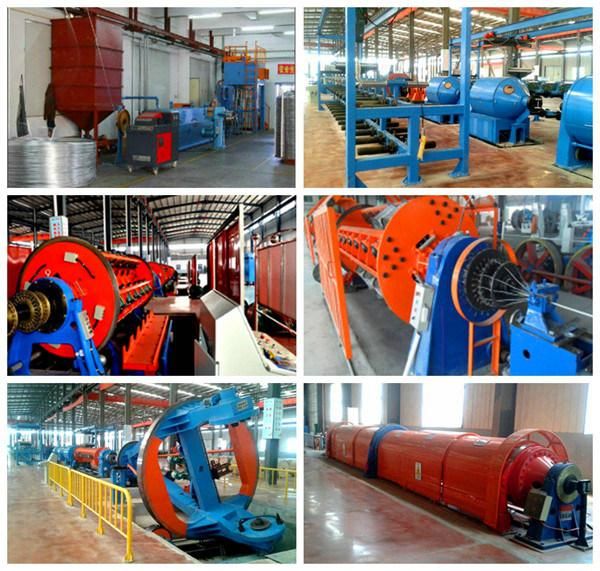

6.Production process:
AAAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
